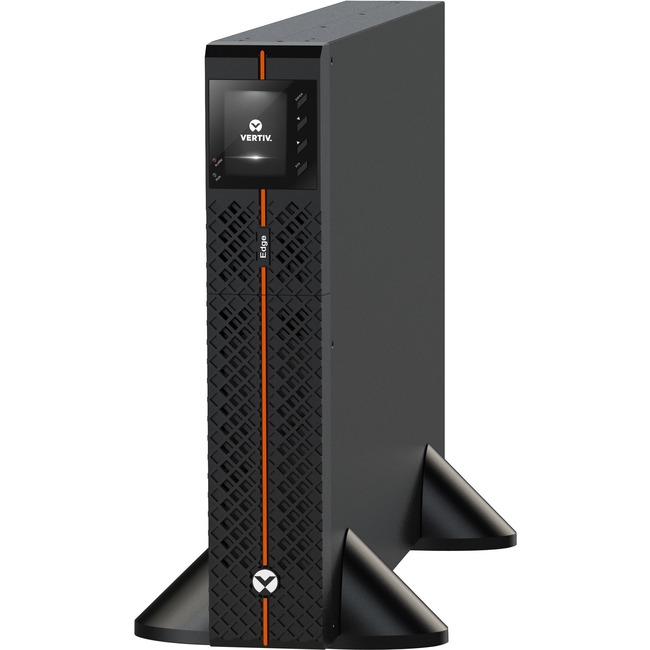

Vertiv Edge UPS 3000VA 2700W 230V 2U Line Interactive AVR Tower/Rack Mount - Rotatable LCD Monitor | Sine Wave Output on Battery | 3 Programmable Outlets | Vertiv Intellislot SNMP/Webcards available for remote power management | 3-year Warranty
Rotatable LCD Monitor | Sine Wave Output on Battery | 3 Programmable Outlets | Vertiv Intellislot SNMP/Webcards available for remote power management | 3-year Warranty
| DC System Voltage | 72 V DC |
| Load Capacity (VA) | 3000 VA |
| Load Capacity (W) | 2700 W |
| Maximum Operating Elevation | 9842.52 ft |
| Phase | Single Phase |
| Receptacle Detail | 1 x IEC 60320 C19 |
| Receptacle Detail | 6 x IEC 60320 C13 |
| Storage Temperature | -13°F (-25°C) - 131°F (55°C) |
| Waveform Type | Sine Wave |
| Application/Usage | Business |
| Application/Usage | Network |
| Application/Usage | Server |
| Application/Usage | Data Center |
| Application/Usage | Critical System |
| Application/Usage | Data Storage |
| Application/Usage | IOT Device |
| Application/Usage | Edge Computing |
| Backup/Run Time (Full Load) | 6 Minute |
| Backup/Run Time (Half Load) | 16 Minute |
| Battery capacity | 10000 mAh |
| Battery Characteristics | Valve-regulated Non-spillable |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Depth | 24.8" |
| Form factor | Rack/Tower |
| Height | 3.5" |
| Hot Swappable | Yes |
| Input frequency | 65 Hz |
| Load Capacity | 3000 VA/2700 W |
| Manufacturer | VERTIV |
| Manufacturer Part Number | EDGE-3000IRT2UXL |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Marketing Information | Reliable UPS Protection At The All-Important Network Edge
The network edge is becoming increasingly important as companies seek to take advantage of Internet of Things cloud computing and other applications that require localized compute power networking services and data storage | all with low latency. Distributed and edge data centers are now no less important to business success than large centralized data centers so must be afforded similar power protection.
The Vertiv™ EDGE line interactive UPS family is intended for distributed IT and edge applications that require reliable efficient power protection for server and networking equipment. It comes in mini-tower rack tower and rack-mount form factors with capacities ranging from 500VA to 3000VA. Each model has a 0.9 output power factor (PF) enabling them to protect larger loads than competing models of the same capacity.
Vertiv EDGE UPSs support up to 6 extended-run battery cabinets (EBCs) providing more runtime at full load than comparable competing UPSs. Auto-detect features make the EBCs easy to add and configure.
Vertiv EDGE UPSs are also highly manageable with a colorful graphical LCD screen for easy intuitive on-site management as well as optional SNMP support. Vertiv EDGE is compatible with the free Vertiv Power Assist software for local UPS status and shutdown of IT loads connected locally.
A standard 2-year warranty for both electronics and batteries protects your UPS investment. More from the Manufacturer |
| Marketing Information | Reliable UPS Protection At The All-Important Network Edge
The network edge is becoming increasingly important as companies seek to take advantage of Internet of Things cloud computing and other applications that require localized compute power networking services and data storage | all with low latency. Distributed and edge data centers are now no less important to business success than large centralized data centers so must be afforded similar power protection.
The Vertiv™ EDGE line interactive UPS family is intended for distributed IT and edge applications that require reliable efficient power protection for server and networking equipment. It comes in mini-tower rack tower and rack-mount form factors with capacities ranging from 500VA to 3000VA. Each model has a 0.9 output power factor (PF) enabling them to protect larger loads than competing models of the same capacity.
Vertiv EDGE UPSs support up to 6 extended-run battery cabinets (EBCs) providing more runtime at full load than comparable competing UPSs. Auto-detect features make the EBCs easy to add and configure.
Vertiv EDGE UPSs are also highly manageable with a colorful graphical LCD screen for easy intuitive on-site management as well as optional SNMP support. Vertiv EDGE is compatible with the free Vertiv Power Assist software for local UPS status and shutdown of IT loads connected locally.
A standard 2-year warranty for both electronics and batteries protects your UPS investment. |
| Maximum Operating Temperature | 104°F (40°C) |
| Network Management | SNMP/Webcard |
| Number of Batteries | 6 |
| Output voltage | 240 V AC |
| Output voltage | 220 V AC |
| Output voltage | 230 V AC |
| Output voltage | 200 V AC |
| Output voltage | 208 V AC |
| Product color | Black |
| Product Line | EDGE |
| Product Name | EDGE-3000IRT2UXL 3kVA Rack/Tower UPS |
| Product Type | Line-interactive UPS |
| Rack Height | 2U |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| Sound Emission | 45 dB |
| Status Indicators | LCD Display |
| TAA Compliant | No |
| Transfer Time | 5 ms |
| Typical Battery Recharge Time | 4 Hour |
| UPC Alternates | 767041031423 |
| Weight (Approximate) | 70.55 lb |
| Width | 17.2" |
