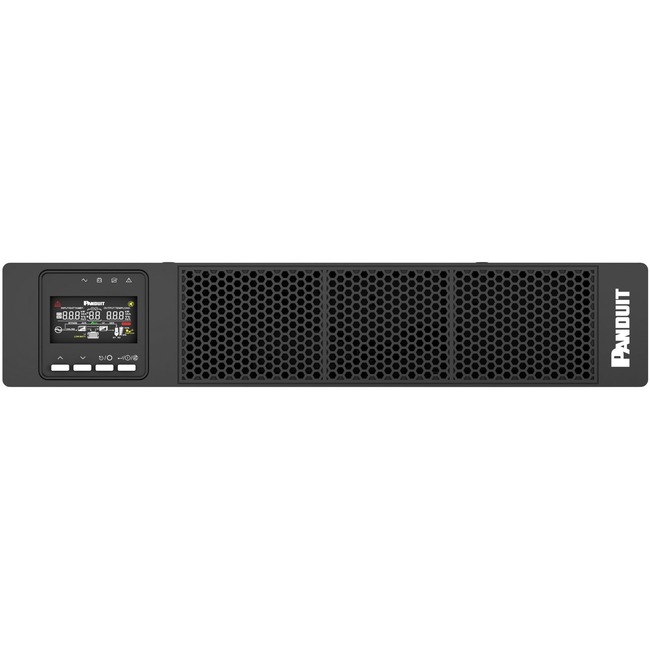

Panduit SmartZone U01S11V 1000VA Rack/Tower UPS - 2U Rack/Tower, Rail Mountable - AVR - 6 Hour Recharge - 120 V AC Input - 100 V AC, 110 V AC, 120 V AC, 115 V AC, 125 V AC Output - Single Phase - Serial Port - 6 x NEMA 5-15R
2U Rack/Tower, Rail Mountable - AVR - 6 Hour Recharge - 120 V AC Input - 100 V AC, 110 V AC, 120 V AC, 115 V AC, 125 V AC Output - Single Phase - Serial Port - 6 x NEMA 5-15R
| Backup/Run Time With External Battery Cabinet (Full Load) | 6 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 19.10 Minute |
| DC System Voltage | 36 V DC |
| Load Capacity (VA) | 1000 VA |
| Load Capacity (W) | 1000 W |
| Maximum Operating Elevation | 9842.52 ft |
| Output Frequency | 60 Hz |
| Phase | Single Phase |
| Receptacle Detail | 6 x NEMA 5-15R |
| Storage Temperature | -13°F (-25°C) - 131°F (55°C) |
| Waveform Type | Pure Sine Wave |
| Additional Warranty Information | - 3 Years for UPS
- 2 Years for Internal Battery and EBP
|
| Application/Usage | Computer |
| Application/Usage | Enterprise |
| Application/Usage | IT Equipment |
| Application/Usage | Edge Computing |
| Application/Usage | Data Center |
| Battery capacity | 9000 mAh |
| Battery Characteristics | Valve-regulated Maintenance-free Hot-swappable |
| Battery Chemistry | Sealed Lead Acid (VRLA) |
| Battery life | 5 Year |
| Battery Size | 12V |
| Brand Name | Panduit |
| Dataline Protection | RJ-45 |
| Depth | 12.8" |
| Environmental Certification | ENERGY STAR 2.0 |
| Environmental Certification | RoHS |
| Environmental Certification | REACH |
| Form factor | Rail Mountable |
| Form factor | Rack/Tower |
| Height | 3.4" |
| Hot Swappable | Yes |
| Input frequency | 70 Hz |
| Input voltage | 120 V AC |
| Input Voltage Range | 55 V AC - 150 V AC |
| Input Voltage Range | 100 V AC - 125 V AC |
| Load Capacity | 1000 VA/1000 W |
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | U01S11V |
| Manufacturer Website Address | http://www.panduit.com |
| Marketing Information | The Panduit ® SmartZone™ UPS with maintenance free VRLA battery 1-3kVA single phase 120 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance enhanced intelligent monitoring and network functions complying with ENERGY STAR ® 2.0 EMC and safety standards to meet the continually growing power demands of Data Center Enterprise and Edge IT equipment. |
| Maximum Operating Temperature | 104°F (40°C) |
| Number of Batteries | 3 |
| Output voltage | 100 V AC |
| Output voltage | 125 V AC |
| Output voltage | 115 V AC |
| Output voltage | 110 V AC |
| Plug/Connector Type | NEMA 5-15P |
| Product color | Black |
| Product Line | SmartZone |
| Product Name | SmartZone U01S11V 1000VA Rack/Tower UPS |
| Product Type | Double Conversion Online UPS |
| Rack Height | 2U |
| Receptacle Type | NEMA 5-15R |
| Sound Emission | 55 dB |
| Status Indicators | Colorful LCD with four buttons and LED indicators |
| Thermal Dissipation | 117.23 W |
| Transfer Time | 0 ns |
| Typical Battery Recharge Time | 6 Hour |
| Weight (Approximate) | 36.60 lb |
| Width | 17.3" |
