ATEN 2-Port 4K DisplayPort Dual Display Mini-Matrix Boundless KVM Switch - 2 Computer(s) - 1 Local User(s) - 4096 x 2160 - 6 x USB - 2 x HDMI - Desktop - 4 x DisplayPort
2 Computer(s) - 1 Local User(s) - 4096 x 2160 - 6 x USB - 2 x HDMI - Desktop - 4 x DisplayPort
| Minimum Operating Temperature | 32°F (0°C) |
| Number of DisplayPorts | 4 |
| Number of HDMI Ports | 2 |
| Brand Name | ATEN |
| Depth | 10.2" |
| Form factor | Desktop |
| Height | 1.7" |
| Limited Warranty | 2 Year |
| Manufacturer | ATEN Technology Inc |
| Manufacturer Part Number | CM1942 |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Marketing Information | The CM1942 2-Port 4K DisplayPort Dual Display Mini-Matrix Boundless KVM Switch combining a 2-port DisplayPort switch and a 2-port USB 3.1 Gen 1 hub is designed to provide instant access to two DisplayPort computers via a single USB / HDMI console. The CM1942 features two PC Operation Modes to facilitate KVM switching in a 2x2 PC / monitor matrix. In Single PC Mode content of the PC with the current KVM focus can be displayed over both monitors; Dual PC Mode on the other hand allows content of both PCs to be displayed separately on two monitors regardless of the KVM focus.
Advanced video support provides a better-defined HDMI connection with vivid video resolutions up to 4K DCI (4096 x 2160 @ 60 Hz). With the CM1942 users can quickly and effortlessly switch between two computers by using convenient pushbuttons hotkeys mouse wheel mouse cursor and remote port selector. Featuring Boundless Switching the CM1942 allows users to simply move the mouse cursor across windows to switch to other video sources. This makes it easier to instantly access and control a target computer. With the built-in 2-port USB 3.1 Gen 1 hub access to connected peripherals is easy between two computers while peripheral switching is independent of the KVM focus. In addition the CM1942 allows data transfer rate up to 5 Gbps for maximum multimedia operation efficiency making desktop multitasking effortless and more productive.
Engineered to meet the ever-increasing demands for dual displays ultra-fast data transmission rates and lossless 4K video resolution the CM1942 is specifically designed for applications in which multitasking is vital such as graphic design financial trading and video post production. |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Video Resolution | 4096 x 2160 |
| Number of USB Ports | 6 |

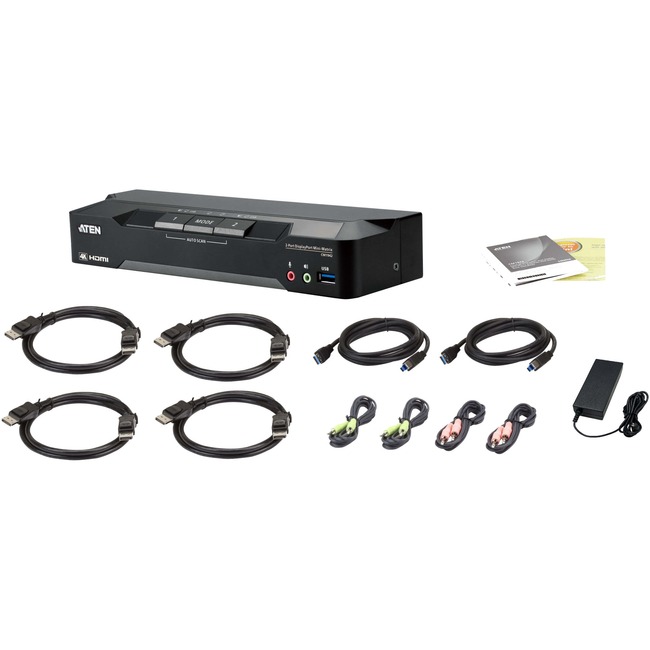

| Package Contents | - 2-Port 4K DisplayPort Dual Display Mini-Matrix Boundless KVM Switch
- 4 x DisplayPort cables
- 2 x Microphone cables
- 2 x Speaker cables
- 2 x USB 3.0 Type-A to Type-B cables
- 1 x Remote port selector
- 1 x Power adapter
- 1 x User instructions
|
| Packaged Quantity | 1 |
| Product Name | 2-Port 4K DisplayPort Dual Display Mini-Matrix Boundless KVM Switch |
| Product Type | KVM Switchbox |
| UPC Alternates | 672792013157 |
| USB | Yes |
| Weight (Approximate) | 1.41 lb |
| Width | 2.8" |
