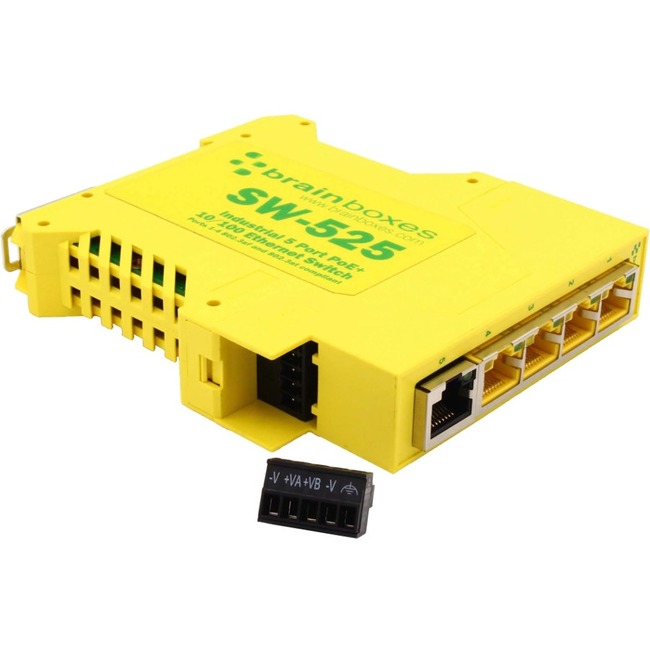

Brainboxes Industrial 5 Port PoE+ 10/100 Ethernet Switch - 5 Ports - Fast Ethernet - 10/100Base-T - TAA Compliant - 2 Layer Supported - 4 W Power Consumption - 90 W PoE Budget - Twisted Pair - PoE Ports - DIN Rail Mountable, Compact - Lifetime Limited Warranty
5 Ports - Fast Ethernet - 10/100Base-T - TAA Compliant - 2 Layer Supported - 4 W Power Consumption - 90 W PoE Budget - Twisted Pair - PoE Ports - DIN Rail Mountable, Compact - Lifetime Limited Warranty
| PoE Budget | 90 W |
| Total Number of Network Ports | 5 |
| Brand Name | Brainboxes |
| Country of origin | Great Britain |
| Depth | 0.4" |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Form factor | DIN Rail Mountable |
| Form factor | Compact |
| Height | 4.7" |
| Input voltage | 44 V DC |
| Input voltage | 57 V DC |
| Layer Supported | 2 |
| Limited Warranty | Lifetime |
| Manageable | No |
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | SW-525 |
| Manufacturer Website Address | http://www.brainboxes.com |
| Marketing Information | Industrial Compact 5 Port PoE+ Fast Ethernet device. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Send power and data to remote CCTV cameras PoE telephones PoE Wifi access points NVRs and more |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100Base-T |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.3at |
| Package Contents | - Industrial 5 Port PoE+ 10/100 Ethernet Switch
- Quick Start Guide
|
| Plug/Connector Type | Terminal Block |
| Port/Expansion Slot Details | 1 x Fast Ethernet Network |
| Port/Expansion Slot Details | 4 x Fast Ethernet PoE+ |
| Power consumption | 4 W |
| Power source | USB |
| Power source | Power Supply |
| Product Name | Industrial 5 Port PoE+ 10/100 Ethernet Switch |
| Product Type | Ethernet Switch |
| UPC Alternates | 837324004533 |
| Weight (Approximate) | 4.37 oz |
| Width | 3.9" |
