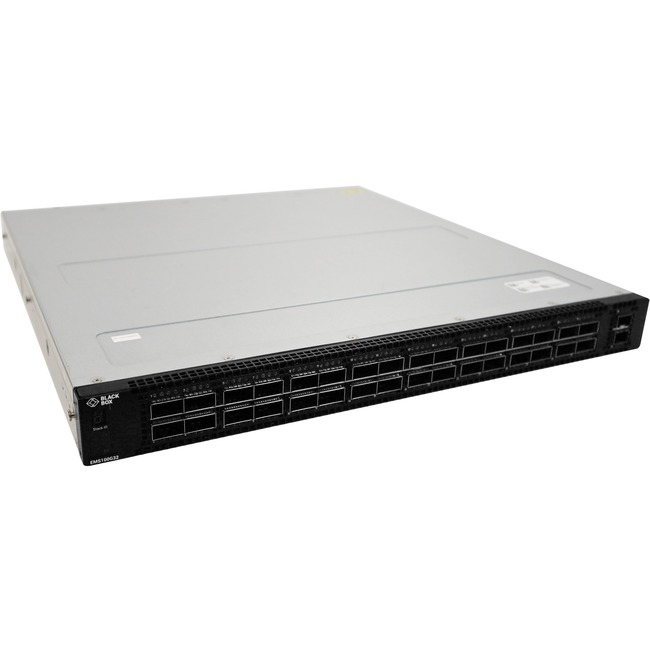

Black Box 100-Gigabit Ethernet Network Switch, 32-Port - 128 Computer(s) - 32 Local User(s) - 50 Hz, 60 Hz - 160 x Network (RJ-45) - Rack-mountable - 1U
128 Computer(s) - 32 Local User(s) - 50 Hz, 60 Hz - 160 x Network (RJ-45) - Rack-mountable - 1U
| Number of Local Users Supported | 32 |
| Additional Warranty Information | 2 Year Double Diamond™ Warranty (Standard) |
| Brand Name | Black Box |
| Country of origin | China |
| Depth | 18.1" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Rack-mountable |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Height | 1.7" |
| Input Voltage Range | 100-240 VAC |
| Limited Warranty | 2 Year |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | EMS100G32-R2 |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | Emerald is the first KVM platform that supports pixel-perfect 4K DisplayPort video at 60 Hz over standard IP network switches. Image transmission with mathematically lossless compression visualizes every single pixel at 60 fps with 10-bit color depth. For HD video Emerald requires a standard Gigabit Ethernet network and possibly a 10 Gigabit aggregate switch depending on how many endpoints you have. For 4K video you'll need a standard 10 Gigabit Ethernet network with a 100-Gigabit aggregate switch for 20+ endpoints. The Emerald 100-Gigabit Ethernet Network Switch 32-Port works well with Emerald transmitters and receivers to support 4K connectivity to these endpoints. This high-performance Emerald network switch ensures trouble-free KVM over IP extension and matrix switching connections. The 1U-high switch has thirty-two 100GbE QSFP28 ports and two 10GbE SFP+ ports. Supports Fail-Safe Operation
Redundant power supplies provide fail-safe operation while fans keep the switch cool. The switch includes two hot-swappable AC power supply units (PSUs) and four hot-swappable fan units. The fans direct airflow from the I/O side to the power supply side. Ports Provide Additional Functionality
The switch has one Micro USB-B console port one RJ-45 console port one 10/100/1000BASE-T Ethernet management port one USB Type-A port for more file storage and a four-core Intel central processing unit (CPU) system with 16 GB SDRAM and 64 GB SSD. Easy to Monitor
Link/Activity LEDs indicate switch status at a glance. The switch also monitors temperature via a software-readable thermal monitor has real-time clock (RTC) support power management monitoring and mounting holes to accommodate a two-hole ground lug. |
| Number of Computers Supported | 128 |
| Number of Network (RJ-45) Ports | 160 |
| Product Line | Emerald |
| Product Name | 100-Gigabit Ethernet Network Switch 32-Port |
| Product Type | KVM Switchbox |
| Rack Height | 1U |
| UPC Alternates | 822088277934 |
| Weight (Approximate) | 21.60 lb |
| Width | 17.1" |
