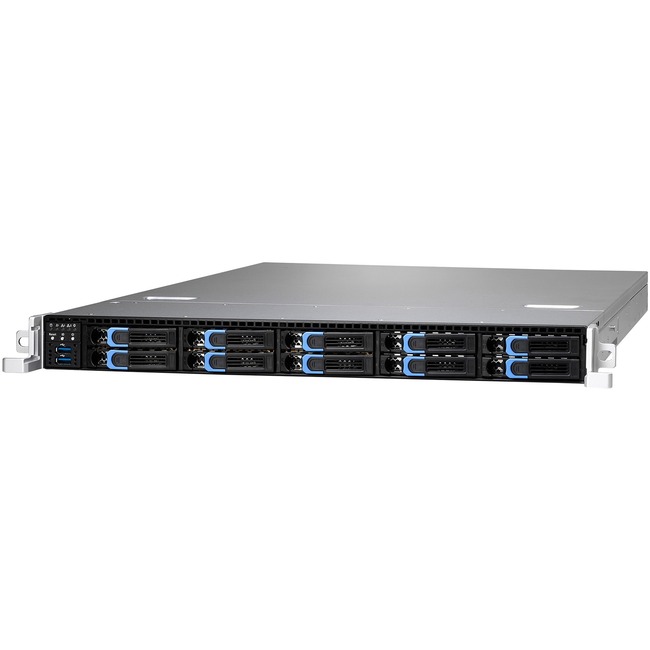

Tyan Transport SX GT62F-B8026-LE Barebone System - 1U Rack-mountable - Socket SP3 - 1 x Processor Support - AMD Chip - 1 TB DDR4 SDRAM DDR4-2666/PC4-21300 Maximum RAM Support - 16 Total Memory Slots - Serial ATA/600 Controller - ASPEED AST2500 32 MB Graphic(s) - 10 2.5" Bay(s) - 10 SATA Interface(s) - Processor Support (EPYC) - Gigabit Ethernet - 4 USB 3.0 Port(s) - 2 x 650 W - 3 Year
AMD Chip - 1 TB DDR4 SDRAM DDR4-2666/PC4-21300 Maximum RAM Support - 16 Total Memory Slots - Serial ATA/600 Controller - ASPEED AST2500 32 MB Graphic(s) - 10 2.5" Bay(s) - 10 SATA Interface(s) - Processor Support (EPYC) - Gigabit Ethernet - 4 USB 3.0 Port(s) - 2 x 650 W - 3 Year
| Chipset | AMD |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2500 |
| Graphics Memory Capacity | 32 MB |
| Maximum Memory Supported | 1 TB |
| Maximum Power Supply Wattage | 650 W |
| Memory Standard | DDR4-2666/PC4-21300 |
| Number of Power Supplies Installed | 2 |
| Number of SATA Interfaces | 10 |
| Processor Socket | Socket SP3 |
| Processor Supported | EPYC |
| Brand Name | Tyan |
| Controller Type | Serial ATA/600 |
| Depth | 24.6" |
| Environmental Certification | RoHS-6 |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Rack-mountable |
| Height | 1.7" |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Limited Warranty | 3 Year |
| Manufacturer | Tyan Computer Corp |
| Manufacturer Part Number | B8026G62FV10HR-LE |
| Manufacturer Website Address | http://www.tyan.com |
| Memory Technology | DDR4 SDRAM |
| Number of Total Memory Slots | 16 |
| Operating System Supported | CentOS 7.3 x64 |
| Operating System Supported | SuSE Linux Enterprise Server 11 x64 |
| Operating System Supported | Red Hat Enterprise Linux 6.5 x64 |
| Operating System Supported | Windows Server 2016 x64 |
| Operating System Supported | Windows 8.1 Enterprise x64 |
| Operating System Supported | Ubuntu 16.04 x64 |
| Operating System Supported | Windows Server 2012 x64 |
| Operating System Supported | Red Hat Enterprise linux 7.4 x64 |
| Operating System Supported | Windows 10 Enterprise x64 |
| Operating System Supported | SuSE Linux Enterprise Server 12 x64 |
| Operating System Supported | Red Hat Enterprise Linux 7.2 x64 |
| Operating System Supported | Ubuntu 17.04 x64 |
| Operating System Supported | Red Hat Fedora Core |
| Operating System Supported | CentOS 7.2 x64 |
| Operating System Supported | Red Hat Enterprise linux 7.3 x64 |
| Package Contents | - Transport SX GT62F-B8026-LE 16 DIMM Single Socket EPYC Storage Server
- 1 x TYAN Device Driver CD
- 1 x Quick Installation Guide
|
| Packaged Quantity | 1 |
| Product Line | Transport SX |
| Product Model | GT62F-B8026-LE |
| Product Name | Transport SX GT62F-B8026-LE 16 DIMM Single Socket EPYC Storage Server |
| Product Type | Barebone System |
| Rack Height | 1U |
| RAID Supported | No |
| Total Number of USB Ports | 4 |
| UPC Alternates | 635872044779 |
| Weight (Approximate) | 23.15 lb |
| Width | 17.2" |
