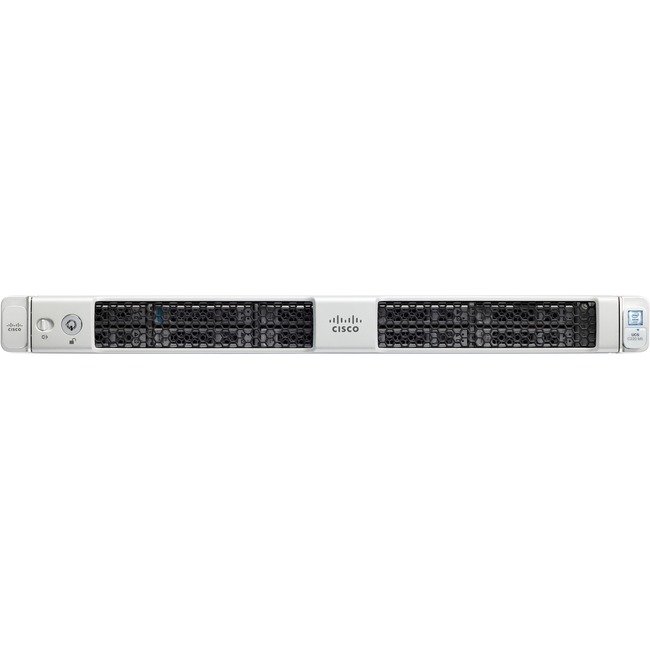

Cisco C220 M5 1U Rack Server - 2 x Intel Xeon Gold 5120 2.20 GHz - 96 GB RAM - 12Gb/s SAS Controller - 2 Processor Support - 3 TB RAM Support - 0, 1, 5, 6, 10, 50, 60, JBOD RAID Levels - Matrox G200e Up to 8 MB Graphic Card - 40 Gigabit Ethernet - 10 x SFF Bay(s) - Hot Swappable Bays - 2 x 770 W - Redundant Power Supply
2 Processor Support - 3 TB RAM Support - 0, 1, 5, 6, 10, 50, 60, JBOD RAID Levels - Matrox G200e Up to 8 MB Graphic Card - 40 Gigabit Ethernet - 10 x SFF Bay(s) - Hot Swappable Bays - 2 x 770 W - Redundant Power Supply
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200e |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 8 MB |
| Graphics Memory Capacity | 8 MB |
| Maximum Memory Supported | 3 TB |
| Maximum Memory Supported | 3 TB |
| Maximum Power Supply Wattage | 770 W |
| Maximum Power Supply Wattage | 770 W |
| Number of Internal 2.5" Bays | 10 |
| Number of Internal 2.5" Bays | 10 |
| Number of Occupied Memory Slots | 6 |
| Number of Occupied Memory Slots | 6 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Supported | 2 |
| Processor Core | Tetradeca-core (14 Core) |
| Processor Core | Tetradeca-core (14 Core) |
| Redundant Power Supply | Yes |
| Redundant Power Supply | Yes |
| Brand Name | Cisco |
| Brand Name | Cisco |
| Controller Type | 12Gb/s SAS |
| Controller Type | 12Gb/s SAS |
| Depth | 31" |
| Depth | 31" |
| Ethernet Technology | 40 Gigabit Ethernet |
| Ethernet Technology | 40 Gigabit Ethernet |
| Form factor | Rack |
| Form factor | Rack |
| Height | 1.7" |
| Height | 1.7" |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Limited Warranty | 3 Year |
| Limited Warranty | 3 Year |
| Manufacturer | Cisco Systems Inc |
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | UCS-SP-C220M5-A3 |
| Manufacturer Part Number | UCS-SP-C220M5-A3 |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | The UCS C220 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family 24 DIMM slots for 2666MHz DIMMs and up to 128GB capacities two 2 PCI Express (PCIe) 3.0 slots and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
The C220 M5 server included one dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.
The Cisco UCS C220 M5 server can be used standalone or as part of the Cisco Unified Computing System which unifies computing networking management virtualization and storage access into a single integrated architecture enabling end-to-end server visibility management and control in both bare metal and virtualized environments. |
| Marketing Information | The UCS C220 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family 24 DIMM slots for 2666MHz DIMMs and up to 128GB capacities two 2 PCI Express (PCIe) 3.0 slots and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
The C220 M5 server included one dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.
The Cisco UCS C220 M5 server can be used standalone or as part of the Cisco Unified Computing System which unifies computing networking management virtualization and storage access into a single integrated architecture enabling end-to-end server visibility management and control in both bare metal and virtualized environments. |
| Memory Technology | DDR4 SDRAM |
| Memory Technology | DDR4 SDRAM |
| Number of Total Memory Slots | 24 |
| Number of Total Memory Slots | 24 |
| Operating System | No |
| Operating System | No |
| Processor Manufacturer | Intel |
| Processor Manufacturer | Intel |
| Processor model | 5120 |
| Processor model | 5120 |
| Processor Speed | 2.20 GHz |
| Processor Speed | 2.20 GHz |
| Processor Type | Xeon Gold |
| Processor Type | Xeon Gold |
| Product Name | UCS C220 M5 Server |
| Product Name | UCS C220 M5 Server |
| Product Series | C220 M5 |
| Product Series | C220 M5 |
| Product Type | Server |
| Product Type | Server |
| Rack Height | 1U |
| Rack Height | 1U |
| RAID Levels | 0 1 5 6 10 50 60 JBOD |
| RAID Levels | 0 1 5 6 10 50 60 JBOD |
| Standard Memory | 96 GB |
| Standard Memory | 96 GB |
| Weight (Approximate) | 37.50 lb |
| Weight (Approximate) | 37.50 lb |
| Width | 19" |
| Width | 19" |
