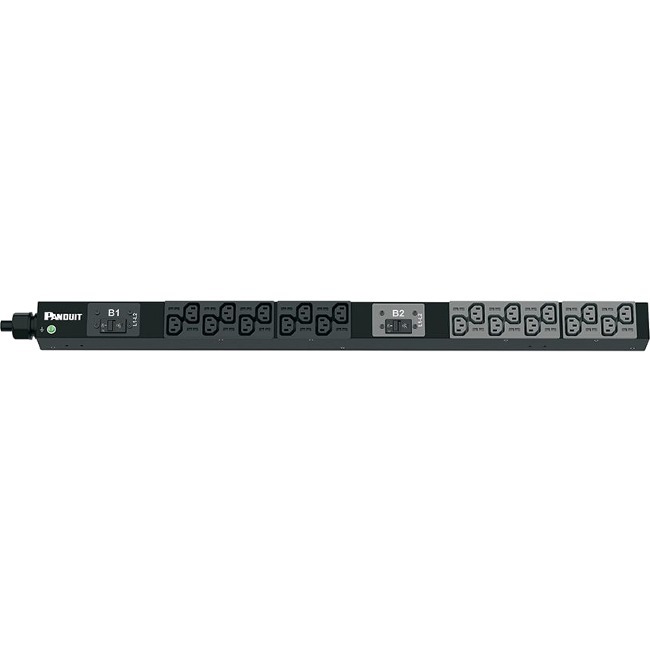

Panduit P20B16M Vertical Basic Power Distribution Unit - Basic - NEMA L6-30P - 20 x IEC 60320 C13 - 208 V AC - 0U - Vertical - Rack-mountable
Basic - NEMA L6-30P - 20 x IEC 60320 C13 - 208 V AC - 0U - Vertical - Rack-mountable
| Mounting Orientation | Vertical |
| PDU Type | Basic |
| Phase | Single Phase |
| Power Rating (VA) | 5000 VA |
| Receptacle Detail | 20 x IEC 60320 C13 |
| Remote Outlet Switching | No |
| Brand Name | Panduit |
| Depth | 2.1" |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 32.2" |
| Input current | 30 A |
| Input voltage | 208 V AC |
| Limited Warranty | 3 Year |
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P20B16M |
| Manufacturer Website Address | http://www.panduit.com |
| Marketing Information | Panduit Basic Rack PDUs provide reliable and cost effective power distribution in a variety of inputs (Single or Three Phase; Delta or WYE) and outlet configurations (IEC C13 C19 or NEMA compliant).
These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware. |
| Mount Type | Rack-mountable |
| Output Voltage Range | 120 V AC - 240 V AC |
| Packaged Quantity | 1 |
| Plug/Connector Type | NEMA L6-30P |
| Product Line | SmartZone |
| Product Name | P20B16M Vertical Basic Power Distribution Unit |
| Product Type | PDU |
| Protection Type | Double Pole |
| Rack Height | 0U |
| Receptacle Type | IEC 60320 C13 |
| UPC Alternates | 613056263550 |
| Width | 2" |
