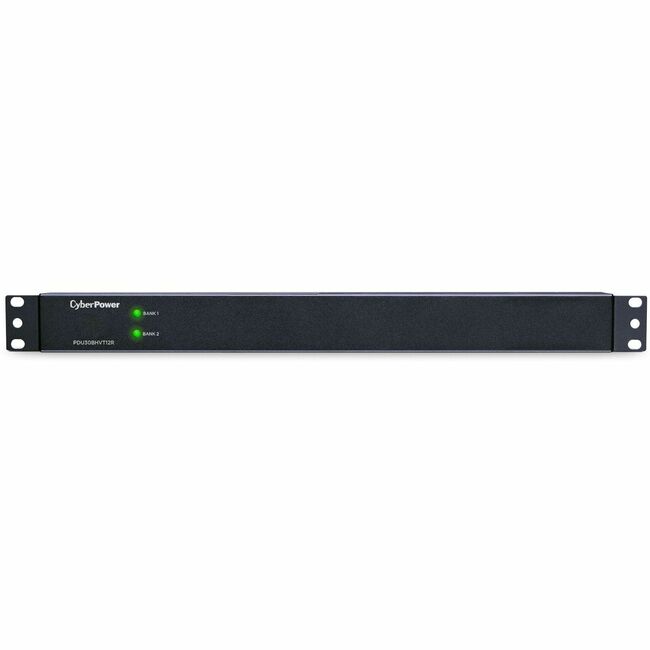

CyberPower PDU30BHVT12R 200 - 230 VAC 30A Basic PDU - 12 Outlets, 10 ft, NEMA L6-30P, Horizontal, 1U, Lifetime Warranty
12 Outlets, 10 ft, NEMA L6-30P, Horizontal, 1U, Lifetime Warranty
| Mounting Orientation | Vertical |
| PDU Type | Basic |
| Phase | Single Phase |
| Receptacle Detail | 12 x IEC 60320 C13 |
| Brand Name | CyberPower |
| Depth | 1.5" |
| Energy Star | No |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 1.8" |
| Input current | 30 A |
| Input voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 230 V AC |
| Limited Warranty | Lifetime |
| Manufacturer | CyberPower Systems Inc |
| Manufacturer Part Number | PDU30BHVT12R |
| Manufacturer Website Address | http://www.cyberpowersystems.com |
| Marketing Information | The CyberPower PDU30BHVT12R a 12-outlet (rear) rackmount basic power distribution unit (PDU) provides 200V/230V 30A output. It distributes power to 12 IEC-320 C13 receptacles from a single NEMA L6-30P twist lock plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications the PDU30BHVT12R has rugged industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically includes a cord retention tray and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions. Power Distribution
Delivers AC power to servers equipment and connected devices via a power distribution unit.
Switch-Free Design
Safeguards against accidental power shutdown.
Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers equipment and connected devices.
Long Input Power Cord
Reaches distantpower sources allowing the PDU to be placed where it's needed.
Twist Lock Plug
Secures an outlet by twisting and locking into place to prevent accidental disconnection.
Cord Retention Tray
Secures power cords keeping them organized and accessible. Helps cords stay plugged in.
Configurable Mounting Brackets
Allow for installation of the PDU in the following configurations: 0U (vertical under counter and wall mount) 1U (horizontal vertical under counter and wall mount) and 2U (horizontal and wall mount).
Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
Limited Lifetime Warranty
Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details. What's In The Box PDU Cord Retention Tray User Manual Screw Kit Cord Clip Kit Horizontal Mounting Brackets Vertical Mounting Brackets Product Registration Card |
| Mount Type | Rack-mountable |
| Package Contents | - PDU30BHVT12R 12-Outlets PDU
- Cord Retention Tray
- User Manual
- Screw Kit
- Cord Clip Kit
- Horizontal Mounting Brackets
- Vertical Mounting Brackets
- Product Registration Card
|
| Plug/Connector Type | NEMA L6-30P |
| Product Name | PDU30BHVT12R 12-Outlets PDU |
| Product Series | Basic PDU |
| Product Type | PDU |
| Protection Type | Overload Protection |
| Rack Height | 1U |
| Receptacle Type | IEC 60320 C13 |
| UPC Alternates | 001910044924 649532901319 |
| Weight (Approximate) | 4.40 lb |
| Width | 17.5" |
