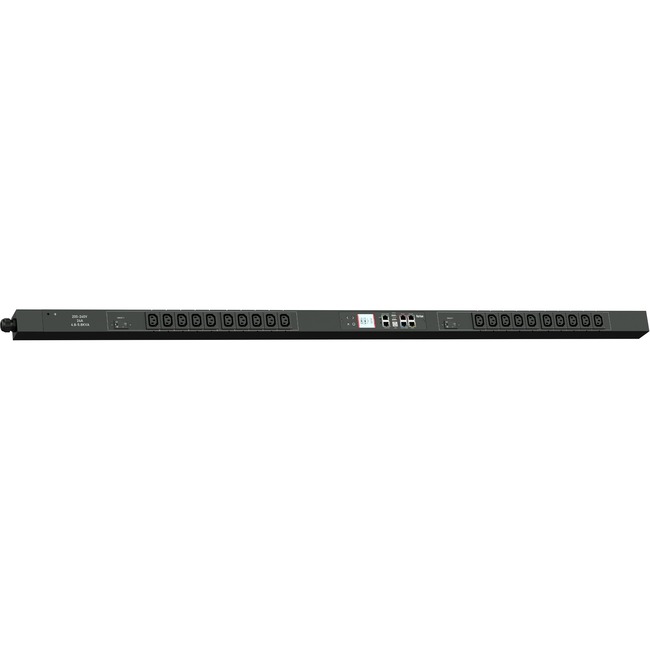

Raritan PX3-5460V 20-Outlets PDU - Monitored - NEMA L6-30P (2P3W) - 20 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable
Monitored - NEMA L6-30P (2P3W) - 20 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable
| Mounting Orientation | Vertical |
| Mounting Orientation | Vertical |
| PDU Type | Monitored |
| PDU Type | Monitored |
| Phase | Single Phase |
| Phase | Single Phase |
| Power Rating (VA) | 5000 VA |
| Power Rating (VA) | 5000 VA |
| Receptacle Detail | 20 x IEC 60320 C13 |
| Receptacle Detail | 20 x IEC 60320 C13 |
| Brand Name | Raritan |
| Brand Name | Raritan |
| Country of origin | Taiwan |
| Country of origin | Taiwan |
| Depth | 2.6" |
| Depth | 2.6" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Height | 51.1" |
| Height | 51.1" |
| Input current | 30 A |
| Input current | 30 A |
| Input voltage | 230 V AC |
| Input voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Limited Warranty | 2 Year |
| Limited Warranty | 2 Year |
| Management | - HTML
- JSON-RPC
- SSH
- Telnet
- MODBUS/TCP
- SNMPv3
- TFTP
- DHCP/PXE
- SSH(CLI)
- USB Flash Drives
|
| Management | - HTML
- JSON-RPC
- SSH
- Telnet
- MODBUS/TCP
- SNMPv3
- TFTP
- DHCP/PXE
- SSH(CLI)
- USB Flash Drives
|
| Manufacturer | Legrand Group |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | PX3-5460V |
| Manufacturer Part Number | PX3-5460V |
| Manufacturer Website Address | http://www.legrand.us |
| Manufacturer Website Address | http://www.legrand.us |
| Mount Type | Rack-mountable |
| Mount Type | Rack-mountable |
| Output voltage | 208 V AC |
| Output voltage | 208 V AC |
| Plug/Connector Type | NEMA L6-30P (2P3W) |
| Plug/Connector Type | NEMA L6-30P (2P3W) |
| Product Name | PX3-5460V 20-Outlets PDU |
| Product Name | PX3-5460V 20-Outlets PDU |
| Product Series | PX3 |
| Product Series | PX3 |
| Product Type | PDU |
| Product Type | PDU |
| Protection Type | Overload Protection |
| Protection Type | Overcurrent Protection |
| Protection Type | Splash Proof |
| Protection Type | Overload Protection |
| Protection Type | Overcurrent Protection |
| Protection Type | Double Pole |
| Protection Type | Splash Proof |
| Protection Type | Double Pole |
| Rack Height | 0U |
| Rack Height | 0U |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C13 |
| Weight (Approximate) | 11.46 lb |
| Weight (Approximate) | 11.46 lb |
| Width | 2.1" |
| Width | 2.1" |
