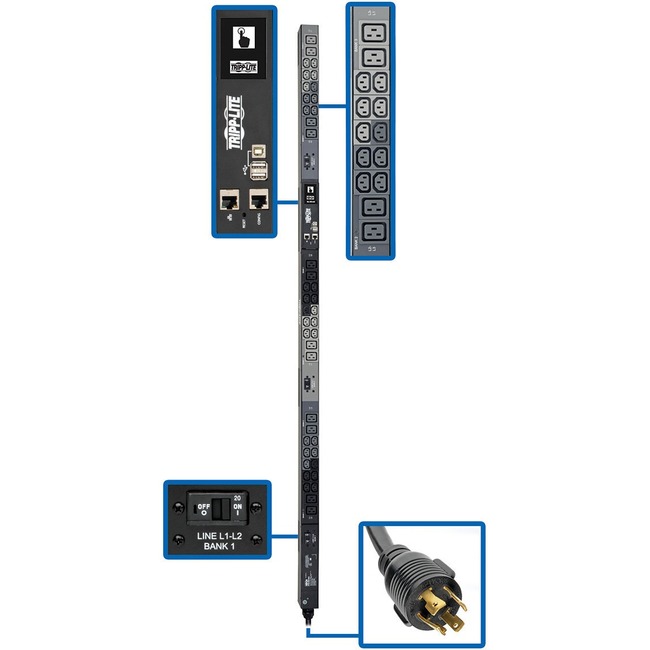

Tripp Lite 3-Phase PDU Monitored 14.5kW 208/240V 30 C13; 12 C19 Hubbell TAA
New
Tripp Lite 3-Phase PDU Monitored 14.5kW 208/240V 30 C13; 12 C19 Hubbell TAA - Monitored - Hubbell CS8365C - 12 x IEC 60320 C19, 30 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant
| $444.26 Retail $1,959.98 |
- A device fitted with multiple outputs for the distribution of electric power
- Remotely monitor single-or-three phase voltage, frequency even load levels with monitored PDUs
You may be also interested
$124.99
$194.78
$595.77
$792.00
$95.93
$129.95
$315.17
$590.00
$639.82
$1,050.20
$102.58
$190.00
$247.80
$289.95
$750.72
$844.66
$1,230.00
$558.13
$684.95
$259.85
$393.00
$157.90
$204.95
$850.66
$1,329.12
$303.46
$478.88
$241.61
$305.00
$594.27
$869.00
$758.09
$957.00
$57.23
$143.45
$539.71
$473.00
$618.26
$750.01
Tripp Lite 3-Phase PDU Monitored 14.5kW 208/240V 30 C13; 12 C19 Hubbell TAA - Monitored - Hubbell CS8365C - 12 x IEC 60320 C19, 30 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant
Monitored - Hubbell CS8365C - 12 x IEC 60320 C19, 30 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant
Monitored - Hubbell CS8365C - 12 x IEC 60320 C19, 30 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant
Product Specifications
| Mounting Orientation | Vertical |
| Mounting Orientation | Vertical |
| PDU Type | Monitored |
| PDU Type | Monitored |
| Phase | Three Phase |
| Phase | Three Phase |
| Power Rating (Watt) | 14.50 kW |
| Power Rating (Watt) | 14.50 kW |
| Receptacle Detail | 30 x IEC 60320 C13 |
| Receptacle Detail | 30 x IEC 60320 C13 |
| Receptacle Detail | 12 x IEC 60320 C19 |
| Receptacle Detail | 12 x IEC 60320 C19 |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Country of origin | Taiwan |
| Country of origin | Taiwan |
| Depth | 2.5" |
| Depth | 2.5" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Height | 70" |
| Height | 70" |
| Input current | 35 A |
| Input current | 35 A |
| Input voltage | 230 V AC |
| Input voltage | 230 V AC |
| Limited Warranty | 2 Year |
| Limited Warranty | 2 Year |
| Management | Protocols:
|
| Management | Protocols:
|
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDU3EVN6H50BA |
| Manufacturer Part Number | PDU3EVN6H50BA |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Features 14.5kW 3-Phase PDU Distributes and Monitors Network-Grade Power This monitored PDU provides real-time remote monitoring of voltage and load levels via its built-in network interface. Ideal for data centers server rooms and high-density network closets the PDU3EVN6H50BA features 30 C13 and 12 C19 208/240V outlets in three breakered load banks which distribute AC power to rack equipment. The banks can be individually monitored to ensure proper load balance and prevent downtime. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged. Built-In LX Platform Network Management Card Allows Remote Access 24/7 The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100/1000 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP. The monitored PDU can receive IP address assignments via DHCP server (automatic) or static (manual) method. Color Touchscreen LCD Offers Important Data at a Glance An easy-to-navigate color touchscreen LCD reports network data including IP address input current level per phase and output current per load bank with ±1% billing-grade accuracy. It also generates a unique QR code to allow read-only access to the 0U PDU via mobile device. If an EnviroSense2 module is connected to the 3-phase PDU the LCD also displays status and environmental data such as temperature and humidity. Easy to Install Vertically in an EIA-Standard 19 in. Rack The 70-inch 0U PDU mounts vertically using the included toolless mounting buttons or the included rackmounting brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. A six-foot cord with Hubbell CS8365C 208/240V 3-phase input connects the PDU to a compatible AC power source generator or protected UPS. |
| Marketing Information | Features 14.5kW 3-Phase PDU Distributes and Monitors Network-Grade Power This monitored PDU provides real-time remote monitoring of voltage and load levels via its built-in network interface. Ideal for data centers server rooms and high-density network closets the PDU3EVN6H50BA features 30 C13 and 12 C19 208/240V outlets in three breakered load banks which distribute AC power to rack equipment. The banks can be individually monitored to ensure proper load balance and prevent downtime. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged. Built-In LX Platform Network Management Card Allows Remote Access 24/7 The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100/1000 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP. The monitored PDU can receive IP address assignments via DHCP server (automatic) or static (manual) method. Color Touchscreen LCD Offers Important Data at a Glance An easy-to-navigate color touchscreen LCD reports network data including IP address input current level per phase and output current per load bank with ±1% billing-grade accuracy. It also generates a unique QR code to allow read-only access to the 0U PDU via mobile device. If an EnviroSense2 module is connected to the 3-phase PDU the LCD also displays status and environmental data such as temperature and humidity. Easy to Install Vertically in an EIA-Standard 19 in. Rack The 70-inch 0U PDU mounts vertically using the included toolless mounting buttons or the included rackmounting brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. A six-foot cord with Hubbell CS8365C 208/240V 3-phase input connects the PDU to a compatible AC power source generator or protected UPS. |
| Mount Type | Rack-mountable |
| Mount Type | Rack-mountable |
| Output voltage | 208 V AC |
| Output voltage | 240 V AC |
| Output voltage | 240 V AC |
| Output voltage | 208 V AC |
| Package Contents |
|
| Package Contents |
|
| Plug/Connector Type | Hubbell CS8365C |
| Plug/Connector Type | Hubbell CS8365C |
| Product Name | PDU3EVN6H50BA 42-Outlet PDU |
| Product Name | PDU3EVN6H50BA 42-Outlet PDU |
| Product Type | PDU |
| Product Type | PDU |
| Protection Type | Overload Protection |
| Protection Type | Overload Protection |
| Rack Height | 0U |
| Rack Height | 0U |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| UPC Alternates | 037332213556 |
| UPC Alternates | 037332213556 |
| Weight (Approximate) | 12.85 lb |
| Weight (Approximate) | 12.85 lb |
| Width | 2.2" |
| Width | 2.2" |
Material Safety Data Sheet
A Material Safety Data Sheet (MSDS) is a document that contains information on the potential hazards (health, fire, reactivity and environmental) and how to work safely with the chemical product.
Sorry this product does not have any reviews at this time.
