Tripp Lite PDU 3-Phase Metered 208V 8.6kW L21-30P 36 C13; 9 C19 0URM TAA - Vertical Rackmount, Toolless-mount
Vertical Rackmount, Toolless-mount
| Mounting Orientation | Vertical |
| Power Rating (Watt) | 8600 W |
| Receptacle Detail | 9 x IEC 60320 C19 |
| Receptacle Detail | 36 x IEC 60320 C13 |
| Brand Name | Tripp Lite |
| Country of origin | Taiwan |
| Depth | 2.2" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 70" |
| Input current | 24 A |
| Input voltage | 230 V AC |
| Limited Warranty | 2 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDU3MV6L2130A |
| Manufacturer Website Address | http://www.tripplite.com |

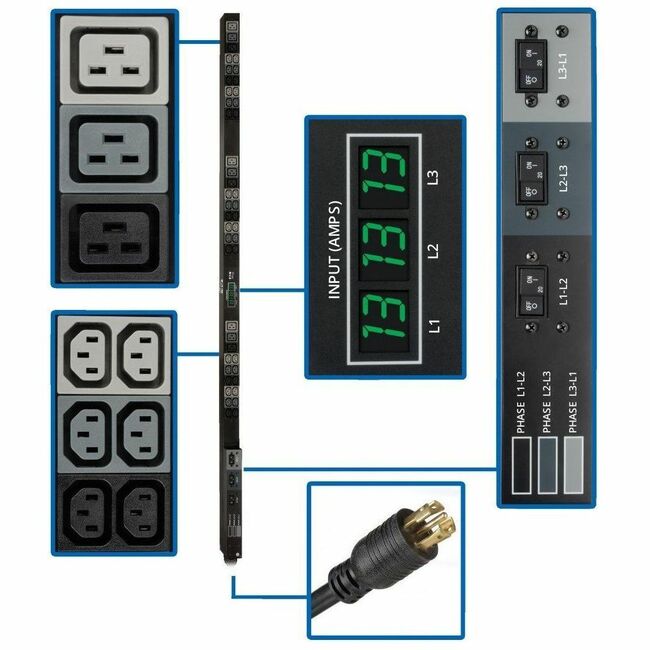

| Marketing Information | Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. |
| Mount Type | Rack-mountable |
| Output voltage | 208 V AC |
| Package Contents | - Metered PDU3MV6L2130A 45-Outlets PDU
- Cord Retention Sleeves (36 C14 9 C19)
- Spare Installation Buttons (2 9mm / 4 6mm)
- Rack Mounting Brackets
- Owner's Manual
|
| Plug/Connector Type | NEMA L21-30P |
| Product Name | Metered PDU3MV6L2130A 45-Outlets PDU |
| Product Series | Metered |
| Product Type | PDU |
| Protection Type | Overload Protection |
| Rack Height | 0U |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| UPC Alternates | 037332182746 |
| Weight (Approximate) | 13.50 lb |
| Width | 2.7" |
