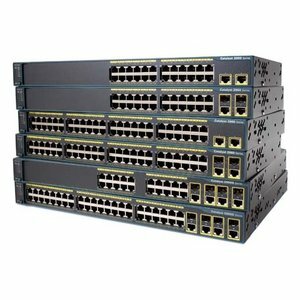

Cisco Catalyst 2960-48TC Ethernet Switch - 48 Ports - Manageable - 10Base-T, 10/100/1000Base-T - 2 Layer Supported - 2 SFP Slots - Rack-mountable, Rack-mountable, Wall Mountable, Desktop - Lifetime Limited Warranty
48 Ports - Manageable - 10Base-T, 10/100/1000Base-T - 2 Layer Supported - 2 SFP Slots - Rack-mountable, Rack-mountable, Wall Mountable, Desktop - Lifetime Limited Warranty
| Additional Information | - Dual-purpose uplink port has one 10/100/1000 Ethernet port and one Small Form-Factor Pluggable (SFP)-based Gigabit Ethernet port with one port active at a time
- LAN Base Image installed
- Configurable up to 8000 MAC addresses
- Configurable up to 255 IGMP groups
- Superior Redundancy for Fault Backup
- Integrated Cisco IOS Software Features for Bandwidth Optimization
- Advanced QoS
- Granular Rate Limiting
- Networkwide Security Features
|
| Brand Name | Cisco |
| Country of origin | China |
| Depth | 9.3" |
| Ethernet Technology | Fast Ethernet |
| Expansion Slot Type | SFP |
| Flash memory | 32 MB |
| Form factor | Desktop |
| Form factor | Wall Mountable |
| Form factor | Rack-mountable |
| Height | 1.7" |
| Input voltage | 110 V AC |
| Input voltage | 220 V AC |
| Layer Supported | 2 |
| Limited Warranty | Lifetime |
| Manageable | Yes |
| Management | - Cisco Network Assistant
- CiscoWorks Support
- Device manager
- Cisco Express Setup
- CiscoView application
- Cisco Network Assistant Software
- Remote Monitoring (RMON)
- Trivial File Transfer Protocol (TFTP) reduces the cost of administering software upgrades by downloading from a centralized location
- Network Timing Protocol (NTP) provides an accurate and consistent timestamp to all intranet switches
- Cisco IOS CLI support provides a common user interface and command set with all Cisco routers and Cisco Catalyst desktop switches
- Cisco Service Assurance Agent (SAA) support facilitates service-level management throughout the LAN
- Switching Database Manager templates for security and QoS allow administrators to easily adjust memory allocation to the desired features based on deployment-specific requirements
- VLAN trunks can be created from any port using standards-based 802.1q tagging
- Up to 255 VLANs per switch or stack and up to 128 spanning-tree instances per switch are supported.
- Four thousand VLAN IDs are supported
- Voice VLAN simplifies telephony installations by keeping voice traffic on a separate VLAN for easier administration and troubleshooting
- Cisco VTP supports dynamic VLANs and dynamic trunk configuration across all switches
- SNMP v1 v2c and v3 and Telnet interface support delivers comprehensive in-band management and a CLI-based management console provides detailed out-of-band management
- Cisco Discovery Protocol Versions 1 and 2 help enable a CiscoWorks network-management station for automatic switch discovery
|
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | WS-C2960+48TC-L |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | Cisco Catalyst 2960 Intelligent Ethernet Switch is a new family of fixed-configuration standalone device that provide desktop Fast Ethernet and Gigabit Ethernet connectivity enabling enhanced LAN services for entry-level enterprise mid-market and branch office networks. The Catalyst 2960 offers integrated security including network admission control (NAC) advanced quality of service (QoS) and resiliency to deliver intelligent services for the network edge. |
| Media Type Supported | Twisted Pair |
| Memory Technology | DRAM |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 10Base-T |
| Number of Network (RJ-45) Ports | 48 |
| Package Contents | - Catalyst 2960-48TC Managed Ethernet Switch
- Console Cable
- AC Power Cord
- 4 x Rubber Mounting Feet
- Documentation
- 2 x 19 inch Mounting Brackets
- 4 x Number-12 Phillips Machine Screws
- 4 x Number-8 Phillips Truss-head Screws
- 6 x Number-8 Phillips Flat-head Screws
- Connector Cover for RPS
- 2 x Number-4 Pan-head Screws
- Cable Guide
- 1 x Black Phillips Machine Screws
|
| Port/Expansion Slot Details | 2 x Fast Ethernet Expansion Slot |
| Port/Expansion Slot Details | 48 x Fast Ethernet Network |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Uplink |
| Power source | Power Supply |
| Product Family | Catalyst 2960 |
| Product Line | Catalyst |
| Product Model | 2960-48TC-L |
| Product Name | Catalyst 2960-48TC Ethernet Switch |
| Product Series | 2960 |
| Product Type | Ethernet Switch |
| Standard Memory | 64 MB |
| Twisted Pair Cable Standard | Category 5 |
| UPC Alternates | 882658602238 |
| Weight (Approximate) | 8 lb |
| Width | 17.5" |
