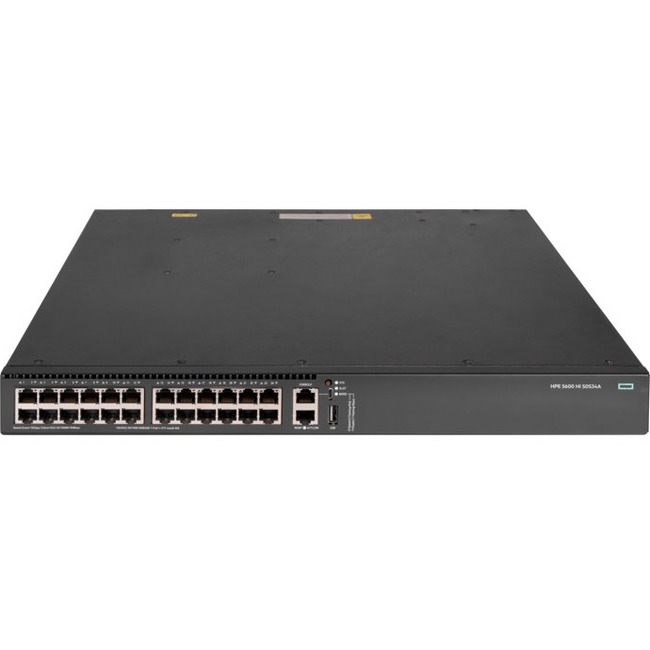

HPE FlexNetwork 5600HI 24P Multigigabit 100M/1G/2.5G/5G/10GBase-T PoE8 1 Slot Switch - 24 Ports - Manageable - 10 Gigabit Ethernet - 10GBase-T - 3 Layer Supported - Modular - 39.30 W Power Consumption - 90 W PoE Budget - Twisted Pair - PoE Ports - 1U High - Rack-mountable, Cabinet Mount
24 Ports - Manageable - 10 Gigabit Ethernet - 10GBase-T - 3 Layer Supported - Modular - 39.30 W Power Consumption - 90 W PoE Budget - Twisted Pair - PoE Ports - 1U High - Rack-mountable, Cabinet Mount
| Compatible Rack Unit | 1U |
| PoE Budget | 90 W |
| Total Number of Network Ports | 24 |
| Application/Usage | Enterprise |
| Application/Usage | Business |
| Application/Usage | Network |
| Brand Name | HPE |
| Depth | 1.7" |
| Ethernet Technology | 10 Gigabit Ethernet |
| Form factor | Rack-mountable |
| Form factor | Cabinet Mount |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Height | 17.3" |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Layer Supported | 3 |
| Manageable | Yes |
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | S0S34A |
| Manufacturer Website Address | http://www.hpe.com |
| Marketing Information | HPE FlexNetwork 5600HI Switch Series The HPE FlexNetwork 5600 HI Switch Series delivers high-performing Multigigabit PoE8 MACsec AES 256 encryption(through additional modules) link flexibility and scalability at the access layer of medium and large enterprise campus networks. The ports on these switches offer efficient application of these features and support add-on modules with advanced features and increased capacity. These include: - DRNI and IRF provide improved resiliency
- Quality of service (QoS) features drive better reliability Intelligent Network Quality Analyzer (iNQA) helps in real-time network health performance and capacity visibility
- Hardware-based MACsec and AAA authentication enable end-to-end encrypted security
- Dual redundant power supplies with Energy Efficient Ethernet lead to improved power saving
This Switch Series also includes Smart Management Center (SmartMC) at no additional cost and combined with HPE Intelligent Management Center (IMC) provides both embedded network management and enhanced network visibility. |
| Media Type Supported | Twisted Pair |
| Network Technology | 10GBase-T |
| Networking standards | IEEE 802.3ad |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3az |
| Networking standards | IEEE 802.1ak |
| Networking standards | IEEE 802.3i |
| Networking standards | IEEE 802.3ac |
| Networking standards | IEEE 802.1v |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.1ad |
| Networking standards | IEEE 802.1ae |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.1s |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.1w |
| Networking standards | IEEE 802.1r |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.1x |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.1D |
| Networking standards | IEEE 802.1AX |
| Port/Expansion Slot Details | 24 x 10 Gigabit Ethernet Network Port |
| Port/Expansion Slot Details | 1 x Expansion Slot |
| Power consumption | 39.30 W |
| Power source | Power Supply |
| Product Family | FlexNetwork 5600 HI |
| Product Line | FlexNetwork |
| Product Name | FlexNetwork 5600HI 24P Multigigabit 100M/1G/2.5G/5G/10GBase-T PoE8 1 Slot Switch |
| Product Series | 5600 HI |
| Product Type | Ethernet Switch |
| UPC Alternates | 190017646923 |
| Weight (Approximate) | 12.13 lb |
| Width | 18.1" |
