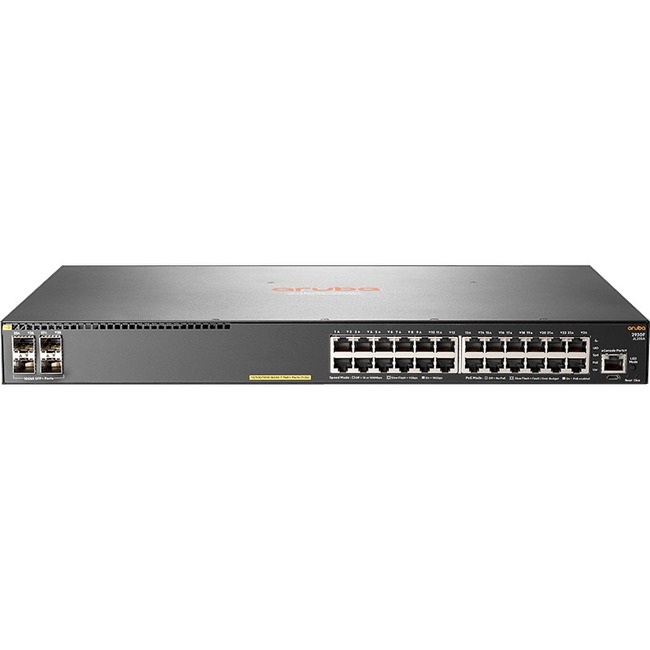

Aruba 2930F 24G PoE+ 4SFP+ Switch - 24 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 36.80 W Power Consumption - 370 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U High - Rack-mountable - Lifetime Limited Warranty
24 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 36.80 W Power Consumption - 370 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U High - Rack-mountable - Lifetime Limited Warranty
| Compatible Rack Unit | 1U |
| Number of Total Expansion Slots | 4 |
| PoE Budget | 370 W |
| Total Number of Network Ports | 24 |
| Brand Name | Aruba |
| Depth | 12" |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP+ |
| Form factor | Rack-mountable |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Height | 1.7" |
| Layer Supported | 3 |
| Limited Warranty | Lifetime |
| Manageable | Yes |
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL255A#B2E |
| Manufacturer Website Address | http://www.hpe.com |
| Marketing Information | The Aruba 2930F Switch Series is designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These convenient Layer 3 network switches include built-in uplinks and PoE power and are simple to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager Aruba AirWave and cloud-based Aruba Central.
A powerful Aruba ProVision ASIC delivers performance robust feature support and value with programmability for the latest applications. Stacking with Virtual Switching Framework (VSF) provides simplicity and scalability. The 2930F supports built-in 1GbE or 10GbE uplinks PoE+ Access OSPF routing Dynamic Segmentation robust QoS RIP routing and IPv6 with no software licensing required.
The Aruba 2930F Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero Touch Provisioning. The robust Layer 3 feature set includes a limited lifetime warranty.
ENHANCED CAPABILITIES | Unified Wired and Wireless Support
- Supports unified wired and wireless policies using Aruba ClearPass Policy Manager
- Switch auto-configuration automatically configures switch for different settings such as VLAN CoS PoE max. power and PoE priority when an Aruba access point is detected
- User Role defines a set of switch-based policies in areas such as security authentication and QoS. A user role can be assigned to a group of users or devices using switch-based local user role or download from ClearPass
- For improved network simplicity and security Aruba Dynamic Segmentation automatically enforces user device and application-aware policies on Aruba wired and wireless networks. Automated device profiling role-based access control and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end users alike
- Dynamic Segmentation provides a secure tunnel that transports network traffic on a per-port or per-user role basis to an Aruba Controller. In a per-user role Tunnel Node users are authenticated by the ClearPass Policy Manager which directs traffic to be tunneled to an Aruba controller or switch locally
- Static IP visibility allows ClearPass to do accounting for clients with a static IP address
Software-defined networks
- Supports multiple programmatic interfaces including REST APIs and Openflow 1.0 and 1.3 to enable automation of network operations monitoring and troubleshooting
Quality of Service (QoS)
- Traffic prioritization (IEEE 802.1p) for classification into eight priority levels mapped to eight queues
- Layer 4 prioritization based on TCP/UDP port numbers
|
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | 1000Base-T |
| Network Technology | 10GBase-X |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.1s |
| Networking standards | IEEE 802.1ab |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3az |
| Networking standards | IEEE 802.1ad |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.1x |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.1w |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.1D |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE+ |
| Power consumption | 36.80 W |
| Power source | Power Supply |
| Product Name | 2930F 24G PoE+ 4SFP+ Switch |
| Product Series | 2930F |
| Product Type | Layer 3 Switch |
| UPC Alternates | 190017007205 |
| Weight (Approximate) | 8.60 lb |
| Width | 17.4" |
