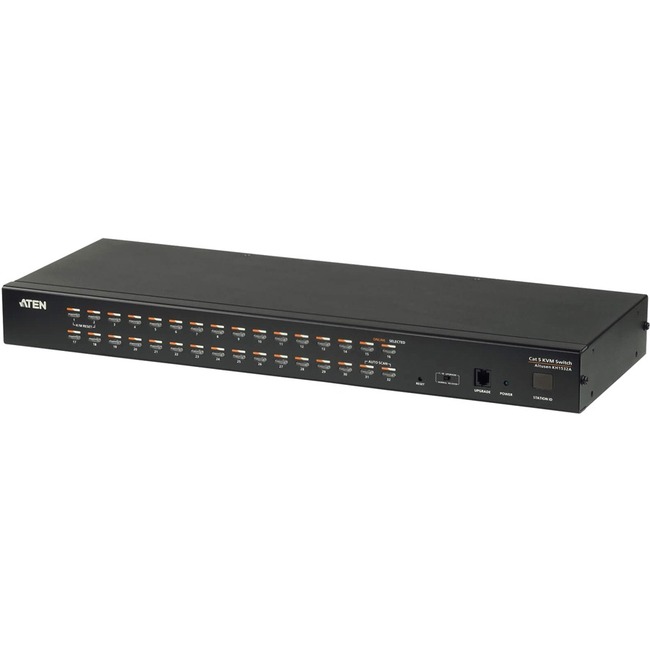

ATEN 32-Port Cat 5 KVM Switch
| $841.28 Retail $1,338.00 |
- One KVM console controls up to 32 directly connected computers
- Space-Saving RJ-45 connectors and Cat 5e/6 cabling
- By daisy chaining up to 31 additional KH1532A switches, as many as 1024 computers can be controlled from the original KVM console
- Console conversion - any KVM console can control any type of computer; mixed combinations (PS/2 & USB) are supported on both the KVM console and computer sides
- Superior video quality - supports video resolutions up to 1920 x 1200 @ 60 Hz up to 30 meters, 1600 x 1200 @ 60 Hz up to 40 meters, and 1280 x 1024 @ 75 Hz up to 50 meters
- Configure port access rights for users on a port-by-port basis
- Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
- Multiplatform support - PC, Mac, Sun, and serial
- Multiple user accounts - supports up to 10 user and 1 administrator accounts
- Two-Level password sec
32 Computer(s) - 1 Local User(s) - 1900 x 1200 - 32 x Network (RJ-45) - 2 x PS/2 Port - 2 x USB1 x VGA - Rack-mountable - 1U
Product Specifications
| Brand Name | ATEN |
| Country of origin | Taiwan |
| Depth | 17.2" |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Rack-mountable |
| Height | 1.7" |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Input Voltage Range | 120V AC to 230V AC |
| Manufacturer | ATEN Technology Inc |
| Manufacturer Part Number | KH1532A |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Marketing Information | The KH1532A KVM switches are control units that allow IT administrators to access and control multiple computers from a single PS/2 or USB KVM console (keyboard monitor and mouse). Operators can take control of up to 32 (KH1532A) computers. By daisy chaining up to 31 additional switches as many as 1024 computers can be controlled from a central KVM console. |
| Maximum Operating Distance | 164.04 ft |
| Maximum Video Resolution | 1900 x 1200 |
| Number of Network (RJ-45) Ports | 32 |
| Number of USB Ports | 2 |
| Packaged Quantity | 1 |
| Product Line | ALTUSEN |
| Product Name | 32-Port Cat 5 KVM Switch |
| Product Type | KVM Switchbox |
| Rack Height | 1U |
| UPC Alternates | 672792008023 |
| Weight (Approximate) | 6.19 lb |
| Width | 6.4" |
