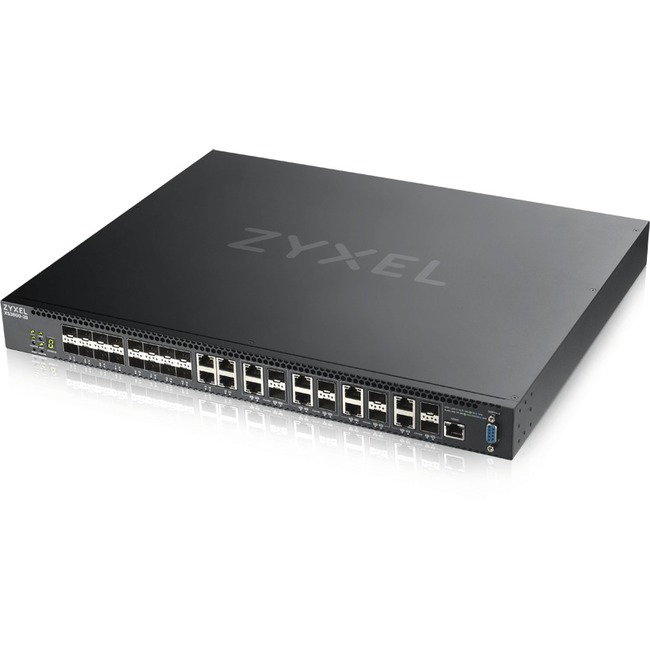

ZYXEL 28-port 10GbE L2+ Managed Switch - 28 Ports - Manageable - 3 Layer Supported - Modular - 86.97 W Power Consumption - Optical Fiber, Twisted Pair - Rack-mountable - Lifetime Limited Warranty
28 Ports - Manageable - 3 Layer Supported - Modular - 86.97 W Power Consumption - Optical Fiber, Twisted Pair - Rack-mountable - Lifetime Limited Warranty
| Number of Total Expansion Slots | 24 |
| Total Number of Network Ports | 28 |
| Brand Name | ZYXEL |
| Country of origin | China |
| Depth | 14.2" |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmental Certification | EuP |
| Ethernet Technology | 10 Gigabit Ethernet |
| Expansion Slot Type | SFP+ |
| Form factor | Rack-mountable |
| Height | 1.7" |
| Input voltage | 110 V AC |
| Input voltage | 220 V AC |
| Layer Supported | 3 |
| Limited Warranty | Lifetime |
| Manageable | Yes |
| Manufacturer | ZYXEL Communications Corp. |
| Manufacturer Part Number | XS3800-28 |
| Manufacturer Website Address | http://www.us.zyxel.com |
| Marketing Information | Designed for SMB with 10GBASE-T connectivity and advanced L2+/L3 lite features the new Zyxel 10-Gigabit L2+ managed switch XS3800-28 enables applications for aggregation or SMB core switching and connection; and the XS3800-28 also comes with up to 12 Multi-Gigabit ports to help your preparation for network expansions with Multi-Gigabit capable devices such as servers workstations and NAS.
Benefits
Flexible port combination for all your needs
10GBASE-T and 10-Gigabit SFP+ are essential to a Layer-2 aggregation switch. The XS3800-28 offers a wide range of combo ports options to give you the greatest flexibility for any type of networks. With 16 x 10G SFP+ 8 combo ports (Multi-Gigabit RJ-45/SFP+) and 4 Multi-Gigabit RJ-45 ports the XS3800-28 offers a maximum of 24 10G fiber ports or 12 10G copper ports that are well prepared for easy adaption to your networks.
Future-proof deployments with Multi-Gigabit capability
If you are currently connecting a Multi-Gigabit capable device to a traditional 10-Gigabit switch without Multi-Gigabit capability the connection automatically downgrades to 1 Gbps since your Multi-Gigabit device only supports speeds up to 2.5G or 5 Gbps rather than 10 Gbps. Instead the XS3800-28 offers up to 12 Multi-Gigabit RJ-45 ports that support 10G 5G 2.5G and 1G speeds that allow the connection to operate at the maximum speed as fast as the connected devices allow.
The most commonly used CAT5e Ethernet cables support both 2.5G/5 Gbps Multi-Gigabit operations without the need to purchase expensive CAT6 cables. For the existing networks that need to be upgraded to the Mutli-Gigabit specification the XS3800-28 is the perfect solution without replacing the current cabling infrastructure.
Advanced Layer-3 switching capacity
Designed with supports to the 4K L3 forwarding table and 1K static L3 routes the XS3800-28 is suitable for aggregation and virtualization for SMB or campus networks that require low latency and high-density 10G backbone architectures with basic routing capability.
Resiliency and availability
As a SMB core switch high availability for uninterrupted services is essential. The XS3800-28 comes with two PSUs supporting active-standby power redundancy that triggers backup power supply if the main unit fails. The XS3800-28 also features a new one-touch "Restore" button on the front panel that saves the last workable configuration as the custom default which allows you to fall back anytime with a press in case of network misconfigurations. |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | 10GBase-X |
| Network Technology | 10GBase-T |
| Package Contents | - 28-port 10GbE L2+ Managed Switch
- Power Cord
- Rack Mounting Kit
|
| Port/Expansion Slot Details | 8 x 10 Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Network |
| Port/Expansion Slot Details | 8 x 10 Gigabit Ethernet Network |
| Port/Expansion Slot Details | 16 x 10 Gigabit Ethernet Expansion Slot |
| Power consumption | 86.97 W |
| Power source | Power Supply |
| Product Name | 28-port 10GbE L2+ Managed Switch |
| Product Type | Ethernet Switch |
| TAA Compliant | No |
| UPC Alternates | 760559125509 |
| Weight (Approximate) | 10.60 lb |
| Width | 17.4" |
