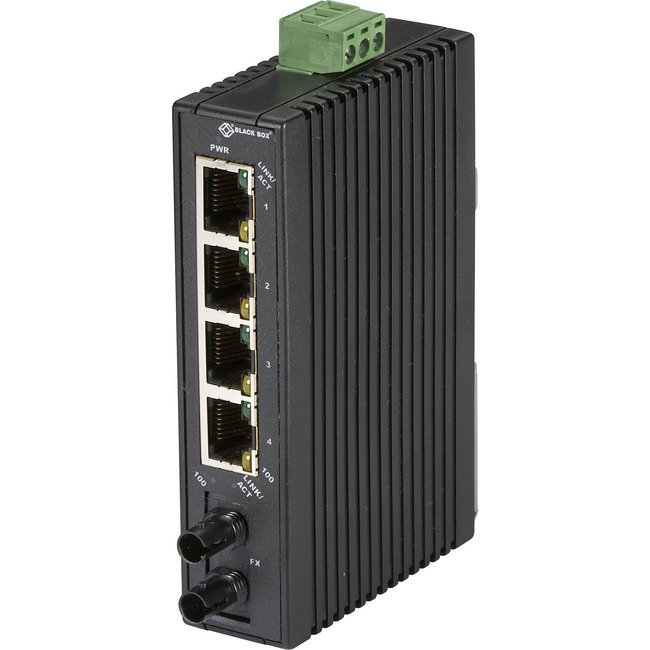

Black Box LBH 120 Ethernet Switch - 5 Ports - 10/100Base-TX, 100Base-X - TAA Compliant - 2 Layer Supported - Twisted Pair, Optical Fiber - Rail-mountable, DIN Rail Mountable - 5 Year Limited Warranty
5 Ports - 10/100Base-TX, 100Base-X - TAA Compliant - 2 Layer Supported - Twisted Pair, Optical Fiber - Rail-mountable, DIN Rail Mountable - 5 Year Limited Warranty
| Fiber Mode Supported | Multi-mode |
| Number of ST Ports | 1 |
| ST Port Type | Duplex |
| Total Number of Network Ports | 5 |
| Brand Name | Black Box |
| Certifications & Standards | EMI:
- FCC Part 15 Class A
- EN61000-6-3: EN55022
- EN61000-3-2
- EN61000-3-3
EMS:
- EN61000-6-2:EN61000-4-2
- EN61000-4-3
- EN61000-4-4
- EN61000-4-5
- EN61000-4-6
- EN61000-4-8
- EN61000-4-11
Environmental test:
- IEC60068-2-6 Fc
- IEC60068-2-27 Ea
- IEC60068-2-32 Ed 0
- IP30
- CE
- TAA
IEEE Standards:
|
| Country of origin | Taiwan |
| Depth | 2.8" |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Form factor | DIN Rail Mountable |
| Form factor | Rail-mountable |
| Height | 4.3" |
| Layer Supported | 2 |
| Limited Warranty | 5 Year |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LBH120A-H-ST |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | An economical way to add four 10-/100-Mbps ports to your network. Features an industrial-strength plastic case and complies with IEC 61000-Part 6-2 generic standards for electromagnetic compatibility (EMC) in industrial environments. Offers full wire-speed forwarding rates across the network. Supports 2048 MAC addresses and features a 384 KB buffer memory. Can be installed easily on a DIN rail. Mounting kit is included. Order power supplies separately see Related Products. |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | 10/100Base-TX |
| Network Technology | 100Base-X |
| Number of Network (RJ-45) Ports | 4 |
| Package Contents | - LBH 120 Ethernet Switch
- Din Rail Mounting Kit
|
| Port/Expansion Slot Details | 5 x Fast Ethernet Network |
| Power source | Power Supply |
| Product Name | LBH 120 Ethernet Switch |
| Product Series | LBH120 |
| Product Type | Ethernet Switch |
| Token Ring Port | No |
| UPC Alternates | 700604246384 700736532713 822088105237 |
| Weight (Approximate) | 8 oz |
| Width | 1" |
