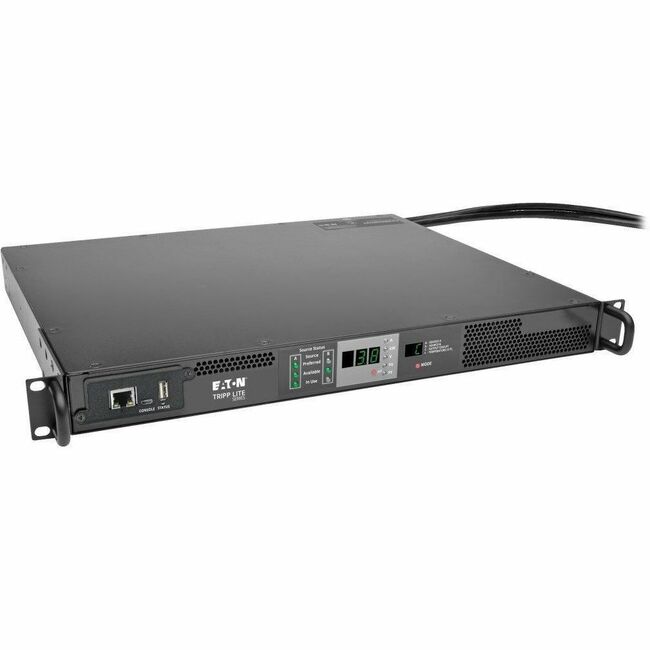

Tripp Lite PDU Monitored Horizontal 3.3/3.8KW 208/240V ATS L6-20R L6-20P 1U
New
Tripp Lite PDU Monitored Horizontal 3.3/3.8KW 208/240V ATS L6-20R L6-20P 1U - 3.80 kVA - 1U
| $881.73 Retail $1,377.80 |
- Two single-phase L6-20P inputs with 10 ft. cords
- L6-20R outlet for connecting single device or 0U vertical PDU
- Automatic transfer switching within 1-5 ms
- Built-in LX Platform Interface for remote access
- Digital display for real-time status monitoring
You may be also interested
$666.95
$821.00
$929.48
$1,211.00
$2,455.44
$3,740.00
$780.58
$1,055.00
$1,343.08
$1,910.00
$95.93
$129.95
$118.81
$116.57
$898.40
$1,305.00
$161.07
$179.95
$1,003.21
$890.00
$1,673.77
$2,830.46
$968.06
$1,342.00
$1,834.44
$2,670.00
$1,680.86
$2,330.00
$1,237.35
$1,720.00
$79.43
$219.02
$1,424.86
$1,449.95
$83.05
$238.30
$398.74
$237.10
$724.46
Tripp Lite PDU Monitored Horizontal 3.3/3.8KW 208/240V ATS L6-20R L6-20P 1U - 3.80 kVA - 1U
3.80 kVA - 1U
3.80 kVA - 1U
Product Specifications
| Mounting Orientation | Horizontal |
| Plug/Connector Detail | 2 x NEMA L6-20P |
| Power Rating (Watt) | 3800 W |
| Receptacle Detail | 1 x NEMA L6-20R |
| Brand Name | Tripp Lite |
| Country of origin | Taiwan |
| Depth | 14" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 1.7" |
| Input current | 20 A |
| Input voltage | 230 V AC |
| Limited Warranty | 2 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDUMNH20HVAT |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | The PDUMNH20HVAT 3.3/3.8kW Single-Phase 208/240V ATS/Monitored PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms it mounts in 1U of space in EIA-standard 19-inch racks and features one L6-20R outlet-perfect for connecting a single device or a 0U 208/240V PDU with an L6-20P plug. Dual 10-foot input cords with L6-20P plugs connect to separate primary and secondary single-phase power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities including temperature and humidity conditions. Protocols supported include IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP. DHCP/Manual configuration lets you assign network settings to the card automatically reducing the need for manual configuration. Automated alerts help prevent accidental overloads power loss and downtime. |
| Mount Type | Rack-mountable |
| Package Contents |
|
| Plug/Connector Type | NEMA L6-20P |
| Product Name | PDUMNH20HVAT 1-Outlet PDU |
| Product Type | PDU |
| Rack Height | 1U |
| Receptacle Type | NEMA L6-20R |
| UPC Alternates | 037332187932 |
| Weight (Approximate) | 15.37 lb |
| Width | 16.9" |
