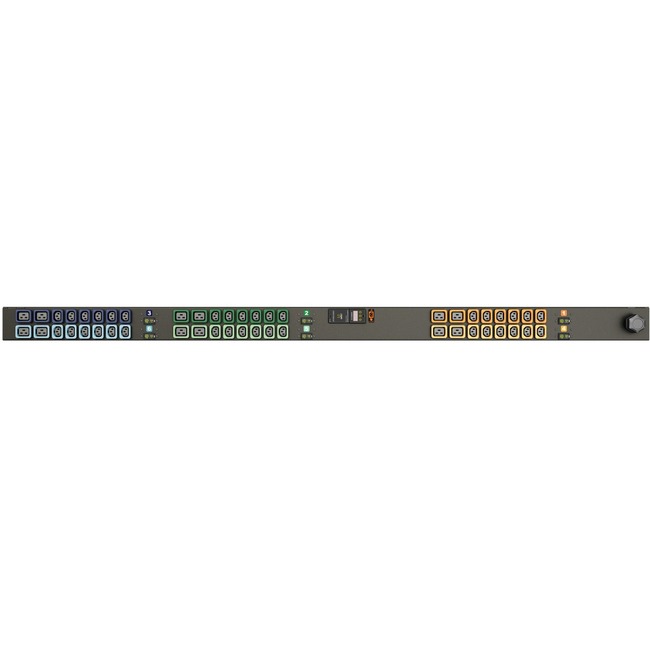

Geist MN01D9W1-48PZB8-6PS15D0A10-S 48-Outlets PDU
| $2,142.41 Retail $2,841.00 |
- Electric power fitted to racks of computers and networking equipment within a data center
- You can always avoid potential overloads with PDU meter
Metered - IEC 60309 3P+E 60A - 42 x U-Lock IEC 60320 C13, 6 x U-Lock IEC 60320 C19 - 230 V AC - 0U - Vertical - Rack-mountable
Product Specifications
| Mounting Orientation | Vertical |
| Mounting Orientation | Vertical |
| Mounting Orientation | Vertical |
| PDU Type | Metered |
| PDU Type | Metered |
| PDU Type | Metered |
| Phase | Three Phase |
| Phase | Three Phase |
| Phase | Three Phase |
| Plug/Connector Detail | 1 x IEC 60309 3P+E 60A |
| Plug/Connector Detail | 1 x IEC 60309 3P+E 60A |
| Plug/Connector Detail | 1 x IEC 60309 3P+E 60A |
| Power Rating (Watt) | 7200 W |
| Power Rating (Watt) | 7200 W |
| Power Rating (Watt) | 7200 W |
| Receptacle Detail | 42 x U-Lock IEC 60320 C13 |
| Receptacle Detail | 6 x U-Lock IEC 60320 C19 |
| Receptacle Detail | 6 x U-Lock IEC 60320 C19 |
| Receptacle Detail | 42 x U-Lock IEC 60320 C13 |
| Receptacle Detail | 6 x U-Lock IEC 60320 C19 |
| Receptacle Detail | 42 x U-Lock IEC 60320 C13 |
| Brand Name | Geist |
| Brand Name | Geist |
| Brand Name | Geist |
| Country of origin | United States |
| Country of origin | United States |
| Country of origin | United States |
| Depth | 3.4" |
| Depth | 3.4" |
| Depth | 3.4" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Input current | 60 A |
| Input current | 60 A |
| Input current | 60 A |
| Input voltage | 230 V AC |
| Input voltage | 230 V AC |
| Input voltage | 230 V AC |
| Length | 72" |
| Length | 72" |
| Length | 72" |
| Limited Warranty | 5 Year |
| Limited Warranty | 5 Year |
| Limited Warranty | 5 Year |
| Manufacturer | Vertiv |
| Manufacturer | Vertiv |
| Manufacturer | Vertiv |
| Manufacturer Part Number | I10095L |
| Manufacturer Part Number | I10095L |
| Manufacturer Part Number | I10095L |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Marketing Information | The I10095L provides real-time power metrics to help prevent overloads and safely optimize load levels. Using Visible Light Communication (VLC) technology I10095L optically transmits power usage data from its LED display to a handheld device over the Geist Mobile App presenting comprehensive real-time power usage data down to the phase and circuit levels. With the Geists Upgradeable hot-swap technology users may easily transform Metered PDUs to Monitored by replacing the Interchangeable Monitoring Device (IMD) module without causing any interruption. |
| Marketing Information | The I10095L provides real-time power metrics to help prevent overloads and safely optimize load levels. Using Visible Light Communication (VLC) technology I10095L optically transmits power usage data from its LED display to a handheld device over the Geist Mobile App presenting comprehensive real-time power usage data down to the phase and circuit levels. With the Geists Upgradeable hot-swap technology users may easily transform Metered PDUs to Monitored by replacing the Interchangeable Monitoring Device (IMD) module without causing any interruption. |
| Marketing Information | The I10095L provides real-time power metrics to help prevent overloads and safely optimize load levels. Using Visible Light Communication (VLC) technology I10095L optically transmits power usage data from its LED display to a handheld device over the Geist Mobile App presenting comprehensive real-time power usage data down to the phase and circuit levels. With the Geists Upgradeable hot-swap technology users may easily transform Metered PDUs to Monitored by replacing the Interchangeable Monitoring Device (IMD) module without causing any interruption. |
| Mount Type | Rack-mountable |
| Mount Type | Rack-mountable |
| Mount Type | Rack-mountable |
| Output voltage | 208 V AC |
| Output voltage | 208 V AC |
| Output voltage | 208 V AC |
| Package Contents |
|
| Package Contents |
|
| Package Contents |
|
| Plug/Connector Type | IEC 60309 3P+E 60A |
| Plug/Connector Type | IEC 60309 3P+E 60A |
| Plug/Connector Type | IEC 60309 3P+E 60A |
| Product Model | MN01D9W1-48PZB8-6PS15D0A10-S |
| Product Model | MN01D9W1-48PZB8-6PS15D0A10-S |
| Product Model | MN01D9W1-48PZB8-6PS15D0A10-S |
| Product Name | MN01D9W1-48PZB8-6PS15D0A10-S 48-Outlets PDU |
| Product Name | MN01D9W1-48PZB8-6PS15D0A10-S 48-Outlets PDU |
| Product Name | MN01D9W1-48PZB8-6PS15D0A10-S 48-Outlets PDU |
| Product Type | PDU |
| Product Type | PDU |
| Product Type | PDU |
| Protection Type | Overcurrent Protection |
| Protection Type | Overcurrent Protection |
| Protection Type | Overcurrent Protection |
| Rack Height | 0U |
| Rack Height | 0U |
| Rack Height | 0U |
| Receptacle Type | U-Lock IEC 60320 C13 |
| Receptacle Type | U-Lock IEC 60320 C13 |
| Receptacle Type | U-Lock IEC 60320 C19 |
| Receptacle Type | U-Lock IEC 60320 C19 |
| Receptacle Type | U-Lock IEC 60320 C19 |
| Receptacle Type | U-Lock IEC 60320 C13 |
| Width | 3.8" |
| Width | 3.8" |
| Width | 3.8" |
