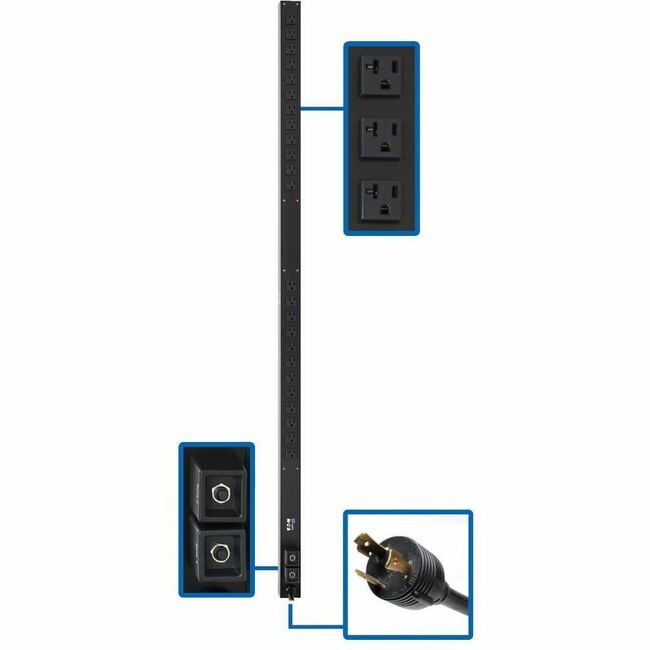

Tripp Lite PDU Basic 24 5-15/20R L5-30P 2.9kW 120V 10ft Cord 63.75in 0U

Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

This basic PDU is an ideal no-frills unit for networking telecom security audio/video and sound reinforcement applications. Recommended for small to mid-size data centers computer rooms and network closets the PDUV30 features two breakered load banks each with 12 NEMA 5-15/20R outlets for connecting equipment. A 10-foot cord with NEMA L5-30P input plug connects to your facility's AC power source generator or protected UPS system to distribute power to connected loads.

Up-to-Date Safety Features Protect Your Vital Equipment

The switchless design helps prevent an accidental shutdown which could lead to costly downtime. Dual 20A circuit breakers protect connected components from dangerous overloads.

Versatile Installation Options Give You Plenty of Choices

The 63.75-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting brackets with user-supplied hardware. You may also use the brackets to secure the PDU to the underside of a counter with the addition of two user-supplied screws. Bolt-down retention brackets keep power cords organized and your rack free of clutter.

Typical Applications

Deliver network-grade power to high-density equipment in networking telecom security audio/video and sound reinforcement applications

Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

This basic PDU is an ideal no-frills unit for networking telecom security audio/video and sound reinforcement applications. Recommended for small to mid-size data centers computer rooms and network closets the PDUV30 features two breakered load banks each with 12 NEMA 5-15/20R outlets for connecting equipment. A 10-foot cord with NEMA L5-30P input plug connects to your facility's AC power source generator or protected UPS system to distribute power to connected loads.

Up-to-Date Safety Features Protect Your Vital Equipment

The switchless design helps prevent an accidental shutdown which could lead to costly downtime. Dual 20A circuit breakers protect connected components from dangerous overloads.

Versatile Installation Options Give You Plenty of Choices

The 63.75-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting brackets with user-supplied hardware. You may also use the brackets to secure the PDU to the underside of a counter with the addition of two user-supplied screws. Bolt-down retention brackets keep power cords organized and your rack free of clutter.

Typical Applications

Deliver network-grade power to high-density equipment in networking telecom security audio/video and sound reinforcement applications

• PDUV30 24-Outlet PDU
• 2 x Plug Retention Brackets with Installation Hardware
• Rack-mounting Hardware
• Owner's Manual

• PDUV30 24-Outlet PDU
• 2 x Plug Retention Brackets with Installation Hardware
• Rack-mounting Hardware
• Owner's Manual
