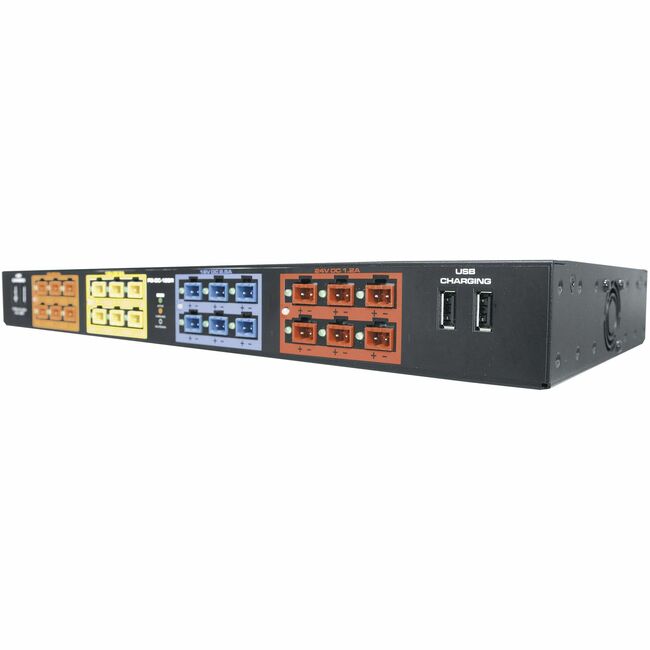

Middle Atlantic 125W Multi-Mount Universal DC Power Distribution for Small to Medium Devices - NEMA 5-15P - 24 x Screw Terminal, 4 x USB - 120 V AC - 1U - Rack-mountable, Cabinet-mountable, Flush-mountable, Wall-mountable
NEMA 5-15P - 24 x Screw Terminal, 4 x USB - 120 V AC - 1U - Rack-mountable, Cabinet-mountable, Flush-mountable, Wall-mountable
| Power Rating (Watt) | 125 W |
| Receptacle Detail | 24 x Screw Terminal |
| Receptacle Detail | 4 x USB |
| Brand Name | Middle Atlantic |
| Cord Length | 6 ft |
| Depth | 7.3" |
| Environmental Certification | ISO 14001 |
| Environmental Certification | RoHS |
| Environmental Certification | EU RoHS |
| Environmentally Friendly | Yes |
| Height | 1.7" |
| Input voltage | 120 V AC |
| Input Voltage Range | 100 V AC - 132 V AC |
| Limited Warranty | 3 Year |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | PD-DC-125R |
| Manufacturer Website Address | http://www.legrand.us |
| Marketing Information | Eliminate wall warts and other power clutter in your AV networking or security installations with DC Power Distribution the perfect power solution for build areas with a multitude of devices in varying voltages. With ultimate flexibility built in these DC Power Distribution solutions provide support and availability for multiple industry standard voltages as well as mounting options allowing the units to be placed within a typical rack unit small enclosure or wall box. This space-saving solution is intuitive to install with a color-coded screw terminal connector platform that manages the multiple voltage options and easy to identify polarity labeling. Simply streamline the install by allowing leads to be trimmed to length and by reducing design modifications contributing to additional labor costs with DC Power Distribution.
This power distribution unit has multiple voltage outputs (5V 12V 18V and 24V) supported in a convenient single box form factor and has color-coded screw terminal connectors with industry standard voltages and polarity labeling for easy identification. Reliable multi-level protection on both AC input and DC outputs to ensure maximum uptime.
LED indicator lights showing activity on each output and alerting maximum capacity on each voltage bank. Leads trimmed to suitable length leaves less cable to manage enhancing aesthetics and increasing airflow.
Hardware kit includes flexible mounting hardware color-coded screw terminal connectors to connect devices and a 6ft IEC power cord. |
| Mount Type | Wall-mountable |
| Mount Type | Flush-mountable |
| Mount Type | Rack-mountable |
| Mount Type | Cabinet-mountable |
| Output voltage | 12 V DC |
| Output voltage | 18 V DC |
| Output voltage | 5 V DC |
| Output voltage | 24 V DC |
| Plug/Connector Type | NEMA 5-15P |
| Product Name | 125W Multi-Mount Universal DC Power Distribution for Small to Medium Devices |
| Product Type | PDU |
| Protection Type | Surge Protection |
| Protection Type | Overload Protection |
| Rack Height | 1U |
| Receptacle Type | Screw Terminal |
| Receptacle Type | USB |
| Width | 16.1" |
