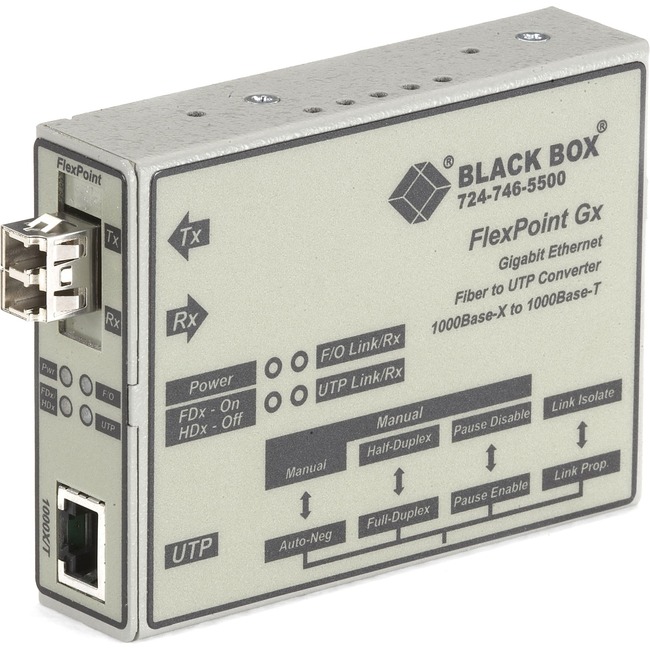

Black Box FlexPoint Modular Media Converter Gigabit Ethernet Multimode 850nm 220m LC
| $644.96 Retail $775.95 |
- Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs
- Compact size
- Powered by a universal AC power supply or the optional rackmountable chassis.
- Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
- DIP switches enable you to configure port settings.
New - 1 x Network (RJ-45) - 1 x LC Ports - DuplexLC Port - Multi-mode - Gigabit Ethernet - 1000Base-T, 1000Base-SX - Standalone, Rack-mountable, DIN Rail Mountable, Wall Mountable - TAA Compliant
Product Specifications
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Wavelength | 850 nm |
| LC Port Type | Duplex |
| Maximum Distance Supported | 721.78 ft |
| Brand Name | Black Box |
| Country of origin | United States |
| Depth | 4" |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | DIN Rail Mountable |
| Form factor | Standalone |
| Form factor | Wall Mountable |
| Form factor | Rack-mountable |
| Height | 1" |
| Limited Warranty | 1 Year |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LMC1012A |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information |
FlexPoint™ Converters from Black Box are versatile and cost-effective standalone converters that you can upgrade to a chassis-based system. They provide the ultimate in flexibility and reliability for your expanding multimedia LAN. The incredible variety and versatility of this system make it ideal for networks that are subject to constant upgrades and changes. Tailor the system to your requirements. Get the converters you need now and use them individually. Then when your LAN grows mount your converters on the wall in the FlexPoint 5-Position Rackmounting Kit or in the FlexPoint Power Chassis. The chassis holds 14 converters and single or dual AC power supplies. |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | 1000Base-T |
| Network Technology | 1000Base-SX |
| Number of Network (RJ-45) Ports | 1 |
| Power source | Power Supply |
| Product Condition | New |
| Product Line | FlexPoint |
| Product Name | FlexPoint Modular Media Converter Gigabit Ethernet Multimode 850nm 220m LC |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 2 |
| UPC Alternates | 822088064152 822088075905 |
| Weight (Approximate) | 9.60 oz |
| Width | 3" |
