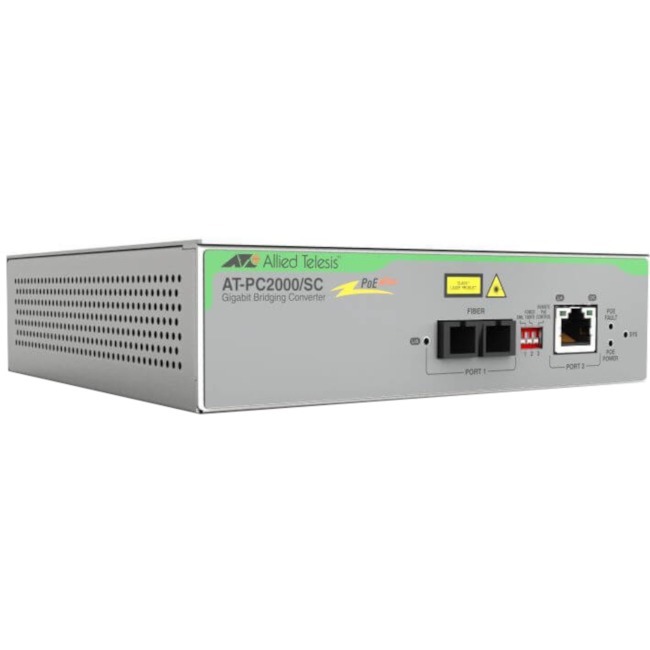

Allied Telesis PC2000/SC Transceiver/Media Converter - Network (RJ-45) - 1x PoE+ (RJ-45) Ports - 1 x SC Ports - Multi-mode - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-SX - Power Supply - Standalone, Wall Mountable - TAA Compliant
Network (RJ-45) - 1x PoE+ (RJ-45) Ports - 1 x SC Ports - Multi-mode - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-SX - Power Supply - Standalone, Wall Mountable - TAA Compliant
| Fiber Mode Supported | Multi-mode |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Standard | 62.5/125 µm |
| Fiber Optic Cable Standard | 50/125 µm |
| Fiber Optic Cable Standard | 62.5/125 µm |
| Fiber Optic Cable Standard | 50/125 µm |
| Fiber Optic Wavelength | 850 nm |
| Fiber Optic Wavelength | 850 nm |
| Number of PoE+ (RJ-45) Ports | 1 |
| Number of PoE+ (RJ-45) Ports | 1 |
| Brand Name | Allied Telesis |
| Brand Name | Allied Telesis |
| Country of origin | Singapore |
| Country of origin | Singapore |
| Depth | 5.9" |
| Depth | 5.9" |
| Environmental Certification | RoHS |
| Environmental Certification | REACH |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmental Certification | REACH |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Wall Mountable |
| Form factor | Standalone |
| Form factor | Wall Mountable |
| Form factor | Standalone |
| Height | 1.6" |
| Height | 1.6" |
| Manufacturer | Allied Telesis Inc |
| Manufacturer | Allied Telesis Inc |
| Manufacturer Part Number | AT-PC2000/SC-960 |
| Manufacturer Part Number | AT-PC2000/SC-960 |
| Manufacturer Website Address | http://www.alliedtelesis.com |
| Manufacturer Website Address | http://www.alliedtelesis.com |
| Marketing Information | Powering Remote Devices
Allied Telesis PC200/2000 Series media converters are the ideal solution for powering remote devices such as IP phones video cameras wireless access points etc. which are more than 100m from a Power over Ethernet switch.
The PC2000/SP features a 100MB or 1000MB SFP port and a 10/100/1000T twisted-pair port. Allied Telesis offers a wide variety of SFPs featuring multimode single mode and BiDi optics.
The fixed fiber-optic port PC200x models features an SC connector for 100FX and 1000SX or LC connector for the 1000SX capable of operating at a distance of up to two kilometers over multi-mode fiber. The twisted-pair port has an RJ-45 connector with a maximum operating distance of 100 meters. In addition to transmitting data the twisted-pair port also injects power down the cable allowing a remote PoE+ Powered Device to operate without the need of any additional power source. All PoE+ Devices (IEEE802.3at compliant) are supported as the PC200x PoE+ Series can deliver a full 30W of power to the remote device.
Remote Power Cycle
The PC200/2000 Series offers feature where when the fiber port is dropped the TX PoE+ port will cycle power. It allows a remote administrator to login in a switch and disable the switch alliedtelesis.com port in which the PC200/2000 Series is attached and will have the remote PoE+ device to lose power. This can be useful when an administrator needs to reset a remote device without actually physical going to the location.
VLAN Support
Many backbone switch products support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) that sends extra-long data packets on the network. PC200/2000 Series switches are fully compatible with these long packets enabling them to be used in modern networks. Switches not supporting this feature will discard these extra-long packets making them unsuitable for modern networks.
Small and Flexible
The small size and internal power supply of the PC200/2000 Series allows them to be used almost anywhere.
Smart MissingLink™ (SML)
The Smart MissingLink (SML) feature monitors network connections and provides notification when network segments fail allowing network managers to quickly identify the source and location of failed segments and minimize downtime. |
| Marketing Information | Powering Remote Devices
Allied Telesis PC200/2000 Series media converters are the ideal solution for powering remote devices such as IP phones video cameras wireless access points etc. which are more than 100m from a Power over Ethernet switch.
The PC2000/SP features a 100MB or 1000MB SFP port and a 10/100/1000T twisted-pair port. Allied Telesis offers a wide variety of SFPs featuring multimode single mode and BiDi optics.
The fixed fiber-optic port PC200x models features an SC connector for 100FX and 1000SX or LC connector for the 1000SX capable of operating at a distance of up to two kilometers over multi-mode fiber. The twisted-pair port has an RJ-45 connector with a maximum operating distance of 100 meters. In addition to transmitting data the twisted-pair port also injects power down the cable allowing a remote PoE+ Powered Device to operate without the need of any additional power source. All PoE+ Devices (IEEE802.3at compliant) are supported as the PC200x PoE+ Series can deliver a full 30W of power to the remote device.
Remote Power Cycle
The PC200/2000 Series offers feature where when the fiber port is dropped the TX PoE+ port will cycle power. It allows a remote administrator to login in a switch and disable the switch alliedtelesis.com port in which the PC200/2000 Series is attached and will have the remote PoE+ device to lose power. This can be useful when an administrator needs to reset a remote device without actually physical going to the location.
VLAN Support
Many backbone switch products support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) that sends extra-long data packets on the network. PC200/2000 Series switches are fully compatible with these long packets enabling them to be used in modern networks. Switches not supporting this feature will discard these extra-long packets making them unsuitable for modern networks.
Small and Flexible
The small size and internal power supply of the PC200/2000 Series allows them to be used almost anywhere.
Smart MissingLink™ (SML)
The Smart MissingLink (SML) feature monitors network connections and provides notification when network segments fail allowing network managers to quickly identify the source and location of failed segments and minimize downtime. |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Optical Fiber |
| Network Technology | 1000Base-SX |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 1000Base-SX |
| Network Technology | 10/100/1000Base-T |
| Package Contents | - PC2000/SC Transceiver/Media Converter
- AC Power Supply Multi-region (USUK AU EU)
|
| Package Contents | - PC2000/SC Transceiver/Media Converter
- AC Power Supply Multi-region (USUK AU EU)
|
| Power source | Power Supply |
| Power source | Power Supply |
| Product Model | PC2000/SC |
| Product Model | PC2000/SC |
| Product Name | PC2000/SC Transceiver/Media Converter |
| Product Name | PC2000/SC Transceiver/Media Converter |
| Product Series | PC2000 |
| Product Series | PC2000 |
| Product Type | Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 2 |
| Total Number of Ports | 2 |
| UPC Alternates | 767035224398 |
| UPC Alternates | 767035224398 |
| Weight (Approximate) | 1.65 lb |
| Weight (Approximate) | 1.65 lb |
| Width | 6.1" |
| Width | 6.1" |
