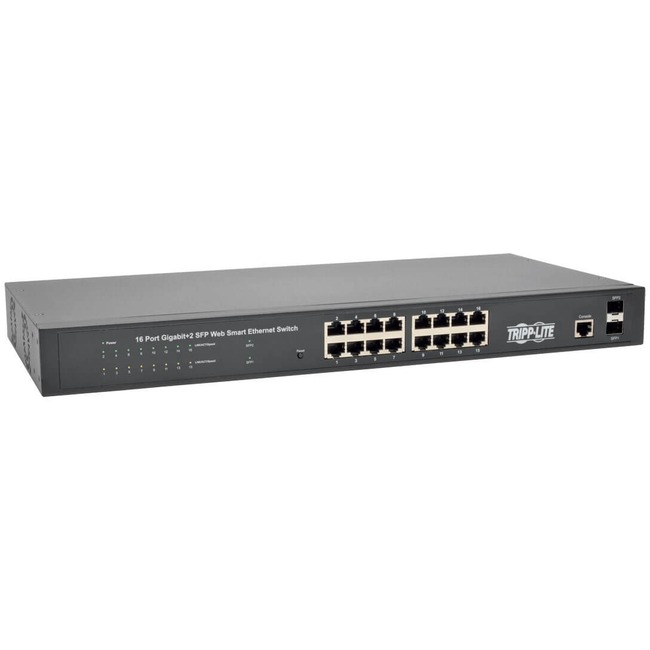

Tripp Lite 16-Port Gigabit Ethernet Switch L2 Managed SFP 10/100/1000Mbps - 16 x Gigabit Ethernet Network, 2 x Gigabit Ethernet Expansion Slot - Manageable - Twisted Pair, Optical Fiber - Modular - 2 Layer Supported - 1U High - Rack-mountable, Desktop - 5 Year Limited Warranty
16 x Gigabit Ethernet Network, 2 x Gigabit Ethernet Expansion Slot - Manageable - Twisted Pair, Optical Fiber - Modular - 2 Layer Supported - 1U High - Rack-mountable, Desktop - 5 Year Limited Warranty
| Compatible Rack Unit | 1U |
| Stack Port | No |
| Total Number of Network Ports | 16 |
| Brand Name | Tripp Lite |
| Country of origin | China |
| Depth | 8.1" |
| Environmental Certification | RoHS |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP (mini-GBIC) |
| Form factor | Desktop |
| Form factor | Rack-mountable |
| Height | 1.7" |
| Layer Supported | 2 |
| Limited Warranty | 5 Year |
| Manageable | Yes |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | NGS16C2 |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | The energy-efficient NGS16C2 16-Port Gigabit L2 Web-Smart Managed Network Switch features 16 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for convenient plug-and-play capability. Two dedicated mini-GBIC SFP ports are also included for uplinking data to other switches via optical fiber or copper.
Easy-to-read LEDs indicate connection and activity status for each port. Built-in web-smart management software lets you monitor and control each connected device via secure web-based interface. Each port supports up to 2 Gbps with full duplex.
The heavy-duty metal housing mounts into 1U of an EIA-standard 19-inch rack using the included brackets and user-supplied hardware. Or attach the included rubber feet to the bottom of the unit for installation on a flat desktop surface. The five-foot input cord with NEMA 5-15P plug connects to a protected UPS generator or mains input AC source. |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-T |
| Package Contents | - NGS16C2 16-Port Gigabit L2 Web-Smart Managed Network Switch
- Detachable AC Power Cord w/NEMA 5-15P plug 5 ft.
- 2 x Rack-mounting Brackets
- 8 x Screws
- 4 x Rubber Feet
- Owner's Manual
|
| Packaged Quantity | 1 |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| Power source | Power Supply |
| Product Name | NGS16C2 16-Port Gigabit L2 Web-Smart Managed Network Switch |
| Product Type | Ethernet Switch |
| UPC Alternates | 037332194848 763649052822 818243002084 |
| Weight (Approximate) | 5.40 lb |
| Width | 17.3" |
