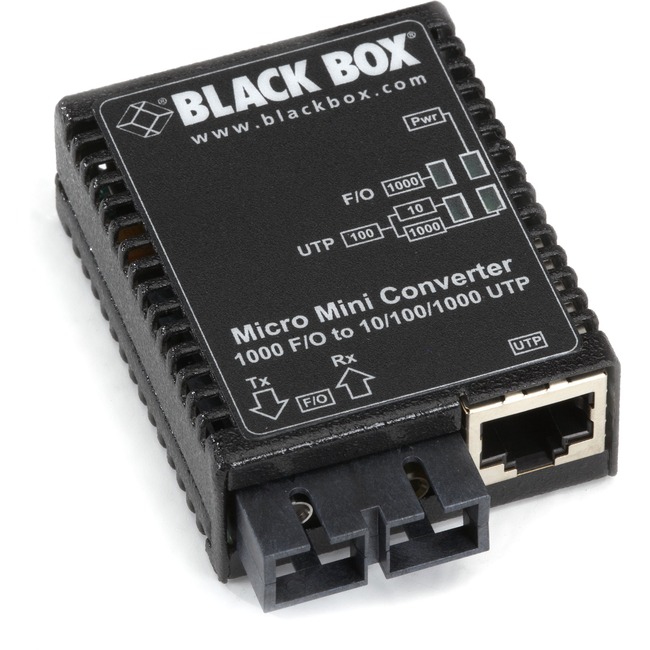

Black Box Micro Mini LMC4004A Transceiver/Media Converter
| $508.87 Retail $589.95 |
- Ultra compact, weighing only 2.5 ounces.
- USB-powered for portability, or use it with the included power adapter.
- UTP port supports 10/100/1000BASE-T.
- Supports Jumbo Ethernet frames up to 10,240 bytes.
- LED indicators for power, UTP, and fiber status.
1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - USB - Single-mode - Gigabit Ethernet - 1000Base-T, 1000Base-X - Wall Mountable - TAA Compliant
Product Specifications
| DVI | No |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Wavelength | 1310 nm |
| Maximum Distance Supported | 7.46 Mile |
| SC Port Type | Duplex |
| Brand Name | Black Box |
| Country of origin | United States |
| Depth | 2.3" |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Wall Mountable |
| Height | 0.8" |
| Limited Warranty | 2 Year |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LMC4004A |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | The Micro Mini Media Converter is ideal for bringing fiber to the desktop and for mobile applications where light weight compact size and low power requirements are critical. Weighing only 2.5 ounces and about the length of a house key this ultra-compact media converter is portable yet powerful. For extra versatility it can be USB-powered making it easy to provide fiber connectivity to locations where AC or DC power is unavailable for instance field-deployed fiber-to-the-laptop. For easy portability this tiny converter conveniently slips into a pocket or laptop carrying case. The converter is plug-and-play with an RJ-45 port that autonegotiates for speed duplex mode and crossover functions for PCs with 10BASE-T 100BASE-TX and 1000BASE-T Ethernet. On the fiber side the converter has an SC connector for connection to single-mode fiber. Because it can be powered through a computer's USB 1.0 or 2.0 port the Micro Mini Media Converter is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer's USB port the media converter shuts down automatically when you turn off the computer which saves energy. |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | 1000Base-T |
| Network Technology | 1000Base-X |
| Number of Network (RJ-45) Ports | 1 |
| Package Contents |
|
| Power source | Power Supply |
| Product Line | Micro Mini |
| Product Name | Micro Mini LMC4004A Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 3 |
| UPC Alternates | 700604208849 822088109495 |
| Weight (Approximate) | 2.50 oz |
| Width | 1.8" |
