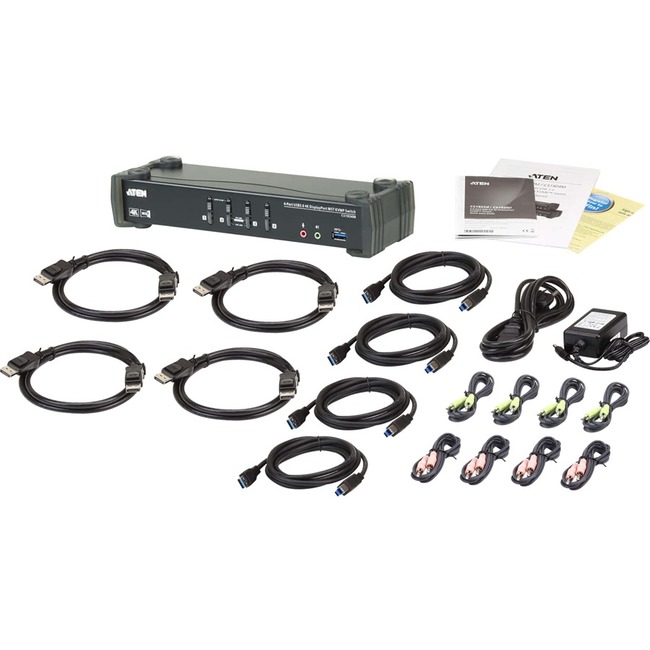

ATEN 4-Port USB 3.0 4K DisplayPort MST KVMP Switch (Cables Included)-TAA Compliant
| $533.38 Retail $750.00 |
- One USB keyboard/mouse and DisplayPort or HDMI monitor control 4 computers and 2 USB peripherals
- Built-in Multi-Stream Transport (MST) hub allows dual displays (DisplayPort / HDMI) from a single DisplayPort source
- Supports MST Mode, Splitter Mode, and Single Port Mode.
- 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer speeds
- DisplayPort Dual-Mode (DP++) technology supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter
- Firmware upgradeable
- Hot pluggable - add or remove computers without powering down the switch
- Superior video quality - 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)
- DisplayPort 1.2 compliant, HDCP compliant
- Supports HD audio through DisplayPort
4 Computer(s) - 1 Local User(s) - 4096 x 2160 - 8 x USB - 1 x HDMI - Desktop - 5 x DisplayPort
Product Specifications
| Number of DisplayPorts | 5 |
| Brand Name | ATEN |
| Country of origin | Taiwan |
| Depth | 10.6" |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form factor | Desktop |
| Height | 2.2" |
| Input voltage | 5 V DC |
| Input Voltage Range | 5V DC |
| Manufacturer | ATEN Technology Inc |
| Manufacturer Part Number | CS1924M |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Marketing Information | Incorporating the latest Multi-Stream Transport (MST) technology the CS1924M 4-Port USB 3.0 4K DisplayPort MST KVMP™ Switch is the world's first DisplayPort KVM switch with a built-in MST hub. The CS1924M enables users to adopt two console displays from a single DisplayPort 1.2 video source providing an extended desktop mode and splitter mode at resolutions up to 4K for multitasking across two displays while reducing bulky cable connections. To meet the ever-increasing demand for high-speed peripheral data transmissions the CS1924M integrates a USB 3.1 Gen 1 hub to deliver unprecedented data transfer rates up to 5 Gbps - allowing you to maximize multitasking operations. |
| Marketing Information | Incorporating the latest Multi-Stream Transport (MST) technology the CS1924M 4-Port USB 3.0 4K DisplayPort MST KVMP™ Switch is the world's first DisplayPort KVM switch with a built-in MST hub. The CS1924M enables users to adopt two console displays from a single DisplayPort 1.2 video source providing an extended desktop mode and splitter mode at resolutions up to 4K for multitasking across two displays while reducing bulky cable connections. To meet the ever-increasing demand for high-speed peripheral data transmissions the CS1924M integrates a USB 3.1 Gen 1 hub to deliver unprecedented data transfer rates up to 5 Gbps - allowing you to maximize multitasking operations. |
| Maximum Video Resolution | 4096 x 2160 |
| Number of Computers Supported | 4 |
| Number of USB Ports | 8 |
| Package Contents |
|
| Packaged Quantity | 1 |
| Product Name | 4-Port USB 3.0 4K DisplayPort MST KVMP Switch (Cables Included) |
| Product Series | SOHO |
| Product Type | KVM Switchbox |
| UPC Alternates | 672792007750 696552322129 |
| Weight (Approximate) | 2.03 lb |
| Width | 3.5" |
