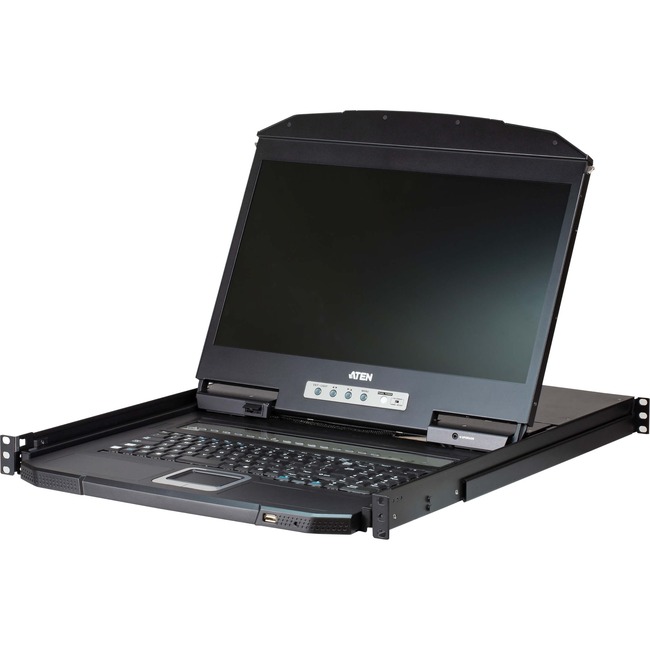

ATEN SOHO CL3108 LCD Rack Console - 128 Computer(s) - 18.5" LCD - HD - 1366 x 768PS/2 Port - 1 x USB - 8 x VGA - Keyboard - TouchPad - 120 V AC, 230 V AC Input Voltage - 1U High - Metal, Plastic
128 Computer(s) - 18.5" LCD - HD - 1366 x 768PS/2 Port - 1 x USB - 8 x VGA - Keyboard - TouchPad - 120 V AC, 230 V AC Input Voltage - 1U High - Metal, Plastic
| Product Material | Plastic |
| Product Material | Metal |
| Brand Name | ATEN |
| Depth | 24.9" |
| Display Screen Type | LCD |
| Height | 1.7" |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Input Voltage Range | 100V AC to 240V AC |
| Keyboard | Yes |
| Limited Warranty | 3 Year |
| Manufacturer | ATEN Technology Inc |
| Manufacturer Part Number | CL3108NX |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Marketing Information | The ATEN CL3108/CL3116 LCD KVM Switch offers a space-saving streamlined approach to KVM switch technology by integrating a keyboard 18.5" LED-backlit LCD monitor and a touchpad in a 1U rack-mountable sliding housing. The short-depth design maximizes space utility for equipping rackmounting devices in narrow spaces. In addition its exclusive LED illumination light provides users with proper visibility when working in low-light conditions.
The CL3108/CL3116 can control up to 8/16 computers; when 8/16 additional KVM switches are cascaded a single CL3108/CL3116 LCD KVM Switch can control up to 128/256 computers. To achieve greater operational efficiency the CL3108/CL3116 offers Broadcast mode which the console spreads out the commands to all computers to perform operations simultaneously. Besides the Auto scan mode fulfills the needs for continuous monitoring a specific group of computers and establishing a reliable working environment for users.
To enhance information safety the CL3108/CL3116 provides two-level password security which restricts unauthorized users from viewing and controlling the computers. For added convenience the CL3108/CL3116 comes with an additional hot-pluggable USB mouse port that only supports HID device for keyboard and mouse.
As a feature-rich LCD KVM Switch the CL3108/CL3116 is aimed not just to achieve but exceed the requirements for space utility optimization superior video quality adaptive deployment and operational versatility and thus is ideal for control rooms with limited space in any industry |
| Number of Computers Supported | 128 |
| Number of USB Ports | 1 |
| Number of VGA Ports | 8 |
| Pointing Device Type | TouchPad |
| Product Model | CL3108 |
| Product Name | SOHO CL3108 LCD Rack Console |
| Product Series | SOHO |
| Product Type | LCD Rack Console |
| Rack Height | 1U |
| Screen Mode | HD |
| Screen Resolution | 1366 x 768 |
| Screen Size | 18.5" |
| UPC Alternates | 672792010705 |
| Weight (Approximate) | 23.15 lb |
| Width | 18.9" |
