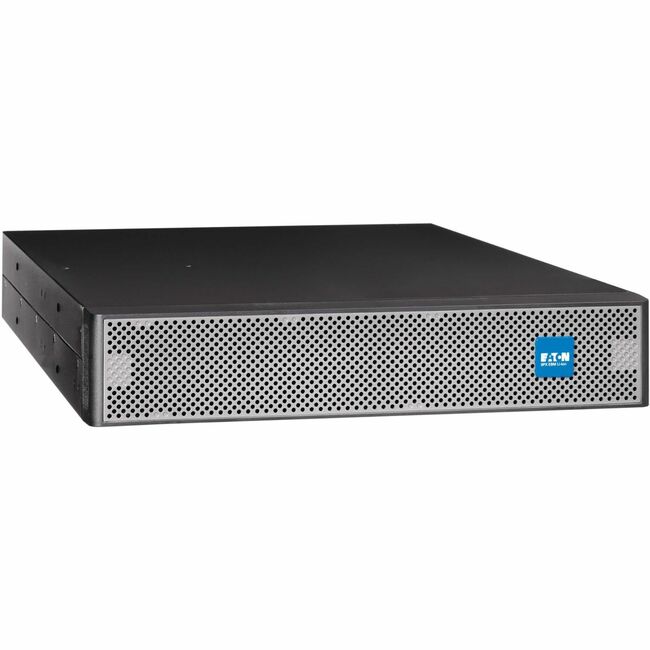

Eaton 9PX 192V Lithium-Ion Extended Battery Module (EBM) for 9PX6K-L UPS System, 2U Rack/Tower
| $4,349.91 Retail $6,600.00 |
- Connects to expandable 9PX6K-L UPS system for extended runtime
- Daisy-chain connector supports additional battery packs for even longer runtime
- Includes heavy-gauge cabling with high-current 192V DC connectors
- Supports 2U rack mounting or upright tower installation
192 V DC - Lithium Ion (Li-Ion) - Hot Swappable
Product Specifications
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Brand Name | Eaton |
| Compatibility | Eaton 9PX6K-L UPS |
| Depth | 25.4" |
| Environmental Certification | RoHS |
| Height | 3.4" |
| Hot Swappable | Yes |
| Limited Warranty | 5 Year |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9PXEBM192RT-L |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Lithium-ion extended battery module (EBM) provides more runtime for the Eaton 9PX6K-L UPS system. Features | Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime The 9PXEBM192RT-L offers extended battery runtime when used in conjunction with Eaton's 9PX6K-L UPS system. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe simple installation. Supports 2U Rack or Tower Installation This backup battery pack's multi-use form factor supports mounting in 2U of space in EIA-standard 19- inch open frame racks or enclosures using the included 4-post rail kit and mounting brackets. Tower stands from a compatible UPS support optional upright configuration of the battery pack. For 2-post rack mounting an optional RK2PC mounting kit (sold separately) is required for each UPS EBM PPDM or transformer. |
| Output voltage | 192 V DC |
| Package Contents |
|
| Product Name | Extended Battery Modules Battery Unit |
| Product Series | Extended Battery Modules |
| Product Type | Battery Unit |
| Weight (Approximate) | 79 lb |
| Width | 17.2" |
