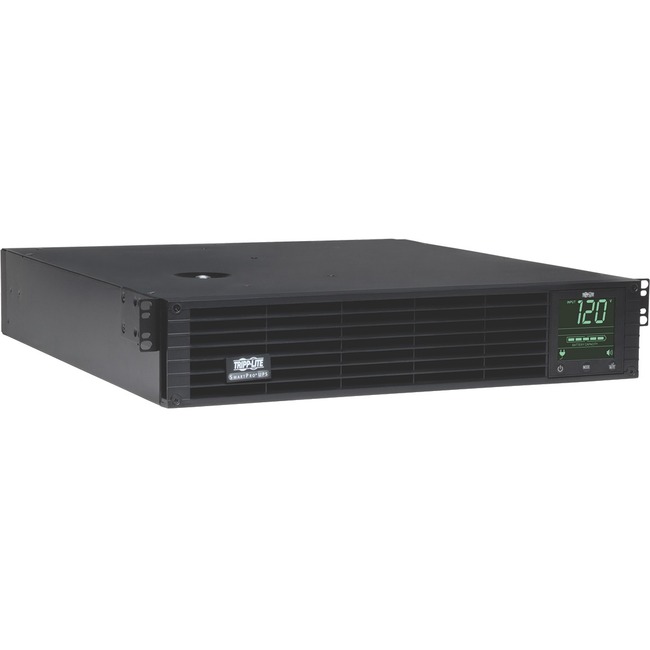

Tripp Lite UPS Smart 3000VA 2880W Rackmount AVR 120V Preinstalled SNMPWEBCARD Pure Sine Wave USB DB9 2URM TAA - 2U Rack-mountable, Rack/Tower - 5 Hour Recharge - 3 Minute Stand-by - 120 V AC Input - 120 V AC Output - Serial Port - USB - 8 x NEMA 5-15/20R, 1 x NEMA L5-30R - TAA Compliant
2U Rack-mountable, Rack/Tower - 5 Hour Recharge - 3 Minute Stand-by - 120 V AC Input - 120 V AC Output - Serial Port - USB - 8 x NEMA 5-15/20R, 1 x NEMA L5-30R - TAA Compliant
| Load Capacity (VA) | 3000 VA |
| Load Capacity (VA) | 3000 VA |
| Load Capacity (VA) | 3000 VA |
| Load Capacity (W) | 2880 W |
| Load Capacity (W) | 2880 W |
| Load Capacity (W) | 2880 W |
| Receptacle Detail | 8 x NEMA 5-15/20R |
| Receptacle Detail | 1 x NEMA L5-30R |
| Receptacle Detail | 8 x NEMA 5-15/20R |
| Receptacle Detail | 1 x NEMA L5-30R |
| Receptacle Detail | 1 x NEMA L5-30R |
| Receptacle Detail | 8 x NEMA 5-15/20R |
| Waveform Type | Pure Sine Wave |
| Waveform Type | Pure Sine Wave |
| Waveform Type | Pure Sine Wave |
| Alarm | UPS Fault |
| Alarm | Remote Shutdown |
| Alarm | Power Failure |
| Alarm | Overload |
| Alarm | UPS Fault |
| Alarm | Remote Shutdown |
| Alarm | Power Failure |
| Alarm | UPS StartUp |
| Alarm | UPS StartUp |
| Alarm | Low Battery |
| Alarm | UPS StartUp |
| Alarm | Overload |
| Alarm | UPS Fault |
| Alarm | Remote Shutdown |
| Alarm | Power Failure |
| Alarm | Overload |
| Alarm | Low Battery |
| Alarm | Low Battery |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Certifications & Standards | - UL1778
- CSA
- NOM
- FCC Part 15
- EMI
- TAA Compliant
|
| Certifications & Standards | - UL1778
- CSA
- NOM
- FCC Part 15
- EMI
- TAA Compliant
|
| Certifications & Standards | - UL1778
- CSA
- NOM
- FCC Part 15
- EMI
- TAA Compliant
|
| Circuit Breaker | Yes |
| Circuit Breaker | Yes |
| Circuit Breaker | Yes |
| Cord Length | 10 ft |
| Cord Length | 10 ft |
| Cord Length | 10 ft |
| Country of origin | Taiwan |
| Country of origin | Taiwan |
| Country of origin | Taiwan |
| Depth | 19" |
| Depth | 19" |
| Depth | 19" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Form factor | Rack/Tower |
| Form factor | Rack/Tower |
| Form factor | Rack-mountable |
| Form factor | Rack/Tower |
| Form factor | Rack-mountable |
| Form factor | Rack-mountable |
| Height | 3.5" |
| Height | 3.5" |
| Height | 3.5" |
| Input current | 24 A |
| Input current | 24 A |
| Input current | 24 A |
| Input voltage | 120 V AC |
| Input voltage | 120 V AC |
| Input voltage | 120 V AC |
| Limited Warranty | 2 Year |
| Limited Warranty | 2 Year |
| Limited Warranty | 2 Year |
| Load Capacity | 3000 VA/2880 W |
| Load Capacity | 3000 VA/2880 W |
| Load Capacity | 3000 VA/2880 W |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SM3000RMXLNTAA |
| Manufacturer Part Number | SM3000RMXLNTAA |
| Manufacturer Part Number | SM3000RMXLNTAA |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode detailed UPS and site-power data plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB port DB9 serial port and pre-installed WEBCARDLX network management interface card.
The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring configuration control and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP.
HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels self-test data and utility power conditions. PowerAlert UPS monitoring and auto shutdown software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable hot-swappable battery modules. |
| Marketing Information | Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode detailed UPS and site-power data plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB port DB9 serial port and pre-installed WEBCARDLX network management interface card.
The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring configuration control and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP.
HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels self-test data and utility power conditions. PowerAlert UPS monitoring and auto shutdown software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable hot-swappable battery modules. |
| Marketing Information | Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode detailed UPS and site-power data plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB port DB9 serial port and pre-installed WEBCARDLX network management interface card.
The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring configuration control and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP.
HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels self-test data and utility power conditions. PowerAlert UPS monitoring and auto shutdown software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable hot-swappable battery modules. |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Network Management | SNMP Manageable |
| Network Management | SNMP Manageable |
| Network Management | SNMP Manageable |
