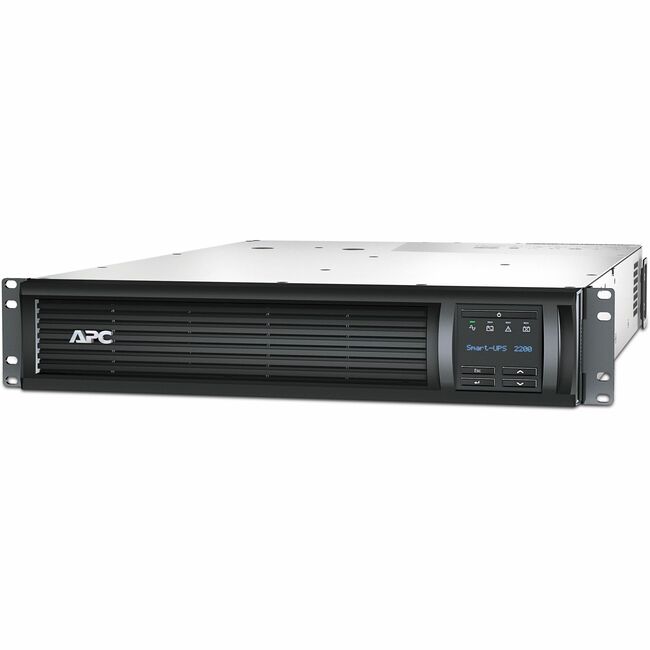

Schneider Electric Smart-UPS 2200VA Rack-mountable UPS - 2U - AVR - 4 Hour Recharge - 120 V Input - 120 V AC Output - Serial Port - 10 x NEMA 5-15R - TAA Compliant
2U - AVR - 4 Hour Recharge - 120 V Input - 120 V AC Output - Serial Port - 10 x NEMA 5-15R - TAA Compliant
| Load Capacity (VA) | 2200 VA |
| Load Capacity (W) | 1980 W |
| Number of Battery & Surge Outlets | 10 |
| Output Frequency | 60 Hz |
| Receptacle Detail | 10 x NEMA 5-15R |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Storage Relative Humidity | 0% - 95% |
| Storage Temperature | -4°F (-20°C) - 131°F (55°C) |
| Waveform Type | Sine Wave |
| Additional Warranty Information | - 3 years repair or replace (excluding battery)
- 2 years for battery
|
| Alarm | Alarm |
| Application/Usage | Critical System |
| Application/Usage | Network |
| Application/Usage | IT |
| Application/Usage | Server |
| Battery Chemistry | Lead Acid |
| Battery life | 5 Year |
| Brand Name | Schneider Electric |
| Country of origin | United States |
| Depth | 26.9" |
| Form factor | Rack-mountable |
| Height | 3.4" |
| Input voltage | 120 V |
| Limited Warranty | 3 Year |
| Load Capacity | 2200 VA/1980 W |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMT2200R2X167 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Marketing Information | This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 10x NEMA 5-15R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes power sags brownouts and surges. The SMT UPS has a 3-year warranty and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery and the APC replacement battery cartridge helps restore UPS performance to the original specifications. |
| Maximum Operating Temperature | 104°F (40°C) |
| Output voltage | 120 V AC |
| Package Contents | - Smart-UPS 2200VA Rack-mountable UPS
- User Manual
|
| Plug/Connector Type | NEMA 5-15P |
| Product color | Black |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS 2200VA Rack-mountable UPS |
| Product Type | Line-interactive UPS |
| Rack Height | 2U |
| Receptacle Type | NEMA 5-15R |
| Serial Port | Yes |
| Status Indicators | LED Display: - Load bar-graphs
- Battery bar-graphs
- On Line
- On Battery
- Replace Battery
- Overload Indicators
|
| Surge energy rating | 1366 J |
| Transfer Time | 10 ms |
| Typical Battery Recharge Time | 4 Hour |
| UPC Alternates | 731304423393 |
| Weight (Approximate) | 93.48 lb |
| Width | 17" |
