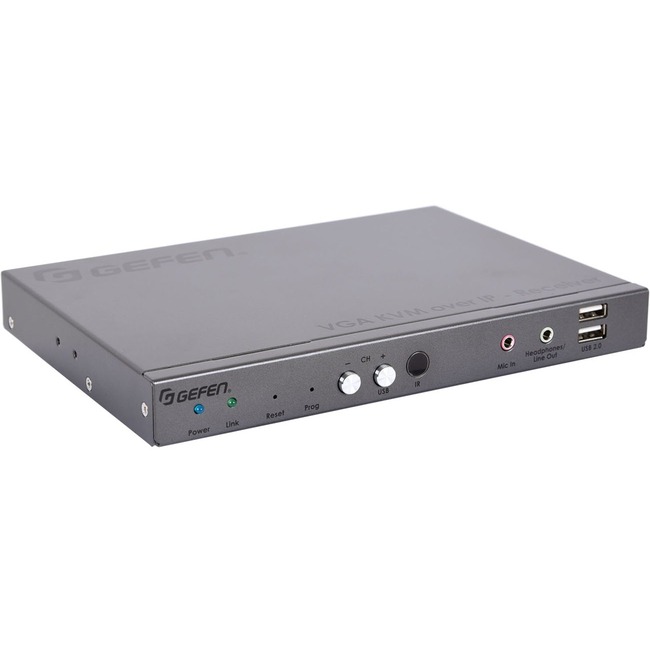

Gefen VGA KVM over IP - Receiver Package - 1 Computer(s) - 1920 x 1080 - 2 x Network (RJ-45) - 41 x VGA
0 Review(s)Item: EXT-VGAKA-LANS-RX | By: Gefen |
0 In Stock
Sorry This Product is Currently not Available to Buy.
Extends VGA, USB, RS-232, 2-way analog audio, and IR, using a Gigabit Local Area Network
Independent video, USB, RS-232, IR, and audio routing
Backward-compatible with first generation Gefen AV over IP products
Supports VESA and CEA input and output resolutions up to WUXGA (1920 x 1200 at 60 Hz) and 1080p Full HD (1920 x 1080 at 60 Hz)
VGA output on Sender unit for local monitoring of the source
KM Emulation feature facilitates real-time, simultaneous Keyboard and Mouse control of each source from all connected workstations
Integrated scaler ensures maximum compatibility and best possible viewing experience with different contents and displays
Built-in video wall controller accommodates any number of rows and columns up to 16x16
MFU (Mass-Firmware-Update), quick and automated configuration, and enhanced control capabilities and system security when used with the Gefen EXT-CU-LAN Matrix Controller
Gefen VGA KVM over IP - Receiver Package - 1 Computer(s) - 1920 x 1080 - 2 x Network (RJ-45) - 41 x VGA 1 Computer(s) - 1920 x 1080 - 2 x Network (RJ-45) - 41 x VGA
Product Specifications
Brand Name
Gefen
Depth
5.9"
Height
1"
Limited Warranty
3 Year
Manufacturer
Gefen Inc
Manufacturer Part Number
EXT-VGAKA-LANS-RX
Manufacturer Website Address
http://www.gefen.com
Marketing Information
Extend and Distribute VGA USB RS-232 IR and 2-way audio over a Local Area Network
Gefen's AV over IP solutions continue their tradition of providing high performance scalable expandable and secure AV routing and distribution over a standard Gigabit Local Area Network. The Gen 2.0 KVM products offer enhanced performance features and functionality such as 4K Ultra HD with HDR support built-in scalers video-wall control independent USB RS-232 IR and audio routing** and backward-compatibility with our first-generation products.
The EXT-VGAKA-LANS-TX & RX support VESA and CEA resolutions up to WUXGA (1920 x 1200 at 60 Hz) and 1080p Full HD (1920 x 1080 at 60 Hz).
The Sender unit features a video output for local monitoring of the source. USB RS-232 2-way IR and audio can be routed independently** between any Sender and Receiver unit allowing end-users to control any of the sources and the displays within their network. With this greatly expanded array of new cutting-edge features and performance the new Gefen AV over IP products fully address the ever-growing needs of systems integrators.
The Receiver features a built-in scaler to help optimize the image for a variety of displays and different viewing environments. It also includes a powerful video wall controller that accommodates any screen configuration up to 16x16 and provides great flexibility in sizing and manipulating live and signage content in demanding installations. The Receiver's integrated USB hub with two USB 2.0 and two USB 1.1 ports accommodates touch panels keyboard and mouse and a variety of supported devices. This feature along with analog audio inputs and outputs make these products perfect to use in collaborative and interactive installations. To ensure maximum versatility and compatibility the audio outputs on the Receiver units are compatible with both headphones and line level devices such as powered speakers.
Maximum Video Resolution
1920 x 1080
Number of Network (RJ-45) Ports
2
Number of USB Ports
4
Package Contents
VGA KVM over IP - Receiver Package
1 x 5V 4A Power Supply
1 x AC Power Cord
4 x Self-Adhesive Rubber Feet
2 x L-Shaped Mounting Brackets
4 x Machine screws for L-Shaped Mounting Brackets
1 x Quick-Start Guide
Packaged Quantity
1
Product Name
VGA KVM over IP - Receiver Package
Product Type
KVM Switchbox
VGA
Yes
Width
8.4"
