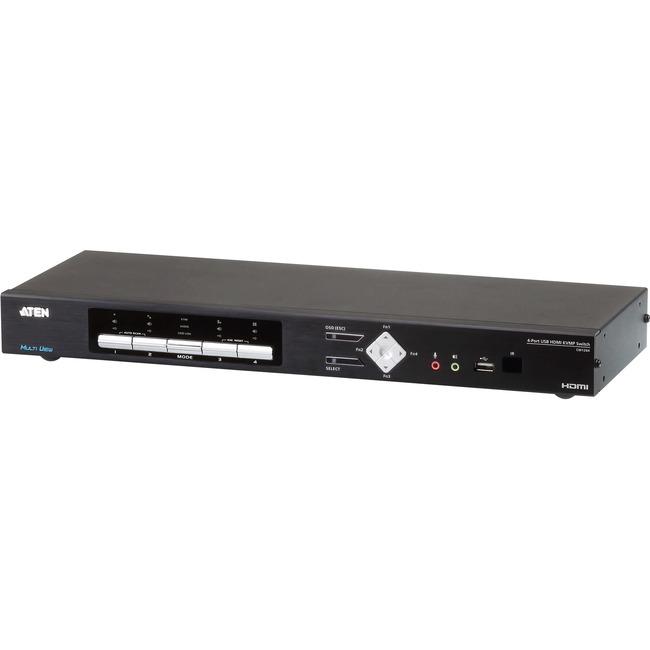

ATEN CM1284 4-Port USB HDMI Multi-View KVMP Switch-TAA Compliant - 4 Computer(s) - 2 Local User(s) - 4096 x 2160 - 2 x Network (RJ-45) - 8 x USB - 6 x HDMI - Desktop, Rack-mountable
4 Computer(s) - 2 Local User(s) - 4096 x 2160 - 2 x Network (RJ-45) - 8 x USB - 6 x HDMI - Desktop, Rack-mountable
| Number of HDMI Ports | 6 |
| Brand Name | ATEN |
| Depth | 6.5" |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Rack-mountable |
| Form factor | Desktop |
| Height | 1.7" |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Input Voltage Range | 100V AC to 240V AC |
| Limited Warranty | 3 Year |
| Manufacturer | ATEN Technology Inc |
| Manufacturer Part Number | CM1284 |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Marketing Information | ATEN CM1284 4-Port USB HDMI Multi-View KVMP™ Switch improves the operational efficiency of real-time monitoring. The CM1284 allows users to manage the data more efficiently by allowing multiple sources to be selected switched and displayed at the same time with independent keyboard and mouse control. Advanced video support provides a better-defined HDMI connection with video resolutions up to 4K (4096 x 2160 @ 30 Hz). The CM1284 guarantees users a real-time monitoring functionality by offering dual outputs on console side. One provides the following display modes: Quad View Picture in Picture (PiP) Picture by Picture (PbP) Picture on Picture (PoP) and the other one provides Full Screen mode. Featuring Boundless Switching the CM1284 allows users to simply move the mouse cursor across windows to switch to other video sources. This makes it easier to instantly access and control the target computer.
Incorporating Daisy Chain Control (DCC) capability users are allowed to control up to 3 additional CM1284 units via a single console. In addition CM1284 can be cascaded up to 2 levels to reach the maximum of 16 video sources to be simultaneously selected switched and displayed with independent keyboard and mouse control.
Engineered to meet the ever-increasing demand for multi-view functionality the CM1284 is specifically designed for where real-time monitoring is needed such as aviation industry financial trading and medical application. |
| Maximum Video Resolution | 4096 x 2160 |
| Number of Computers Supported | 4 |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 8 |
| Package Contents | - CM1284 4-Port USB HDMI Multi-View KVMP Switch
- 4 x USB HDMI Cables
- 1 x Power Cord
- 1 x IR Remote Control
- 1 x Rack Mount Kit
- 1 x User Instructions
|
| Packaged Quantity | 1 |
| Product Name | CM1284 4-Port USB HDMI Multi-View KVMP Switch |
| Product Type | KVM Switchbox |
| UPC Alternates | 672792009471 |
| Weight (Approximate) | 5.42 lb |
| Width | 17.2" |
