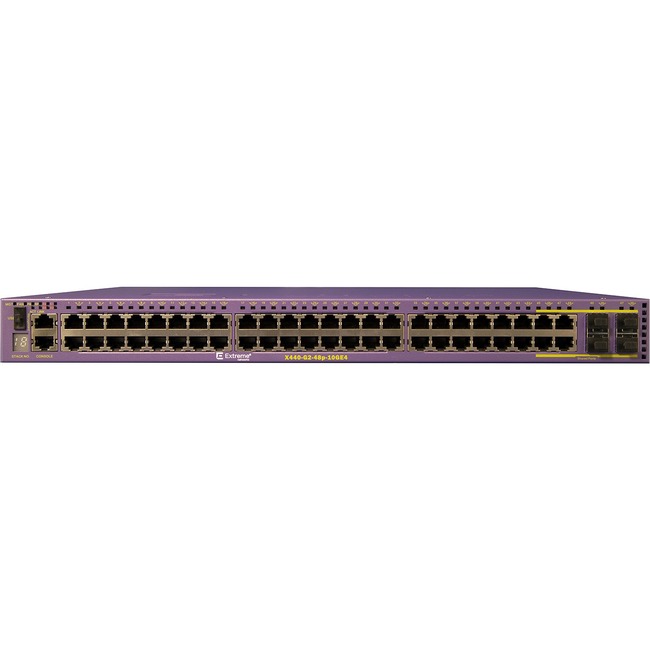

Extreme Networks ExtremeSwitching X440-G2-48p-10GE4 Ethernet Switch - 48 Ports - Manageable - TAA Compliant - 3 Layer Supported - Modular - 8 SFP Slots - Twisted Pair, Optical Fiber - 1U High - Rack-mountable - Lifetime Limited Warranty
48 Ports - Manageable - TAA Compliant - 3 Layer Supported - Modular - 8 SFP Slots - Twisted Pair, Optical Fiber - 1U High - Rack-mountable - Lifetime Limited Warranty
| Compatible Rack Unit | 1U |
| Number of Total Expansion Slots | 8 |
| Total Number of Network Ports | 48 |
| Brand Name | Extreme Networks |
| Depth | 10" |
| Environmental Certification | EU RoHS |
| Environmental Certification | China RoHS |
| Environmental Certification | EU WEEE |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP |
| Form factor | Rack-mountable |
| Height | 1.7" |
| Layer Supported | 3 |
| Limited Warranty | Lifetime |
| Manageable | Yes |
| Manufacturer | Extreme Networks Inc |
| Manufacturer Part Number | 16535T |
| Manufacturer Website Address | http://www.extremenetworks.com |
| Marketing Information | The ExtremeSwitching X440-G2 series is a scalable cost-effective family ofedge switches powered by Extreme Networks ExtremeXOS a highly resilient OS providing continuous uptime manageability and operational efficiency. The X440-G2 series switches provide high-performance routing and switching flexible stacking PoE-plus support and comprehensive security while extending the benefits of ExtremeXOS to the campus edge.
The X440-G2 Series easy-to-use yet powerful management services include role-based policies for controlled access to specific network applications. Select X440-G2 Series switches can also be cloud-managed via ExtremeCloudTM Extreme Networks innovative single-pane subscription- based management solution.
Intelligent Switching
The X440-G2 Series supports sophisticated and intelligent Layer 2 switching as well as Layer 3 IPv4/IPv6 routing. They also support role- based policy capabilities Provider Bridges bidirectional Access Control Lists as well as granular (8 Kbps) ingress/egress bandwidth control. Altogether these enable fine-grained control over traffic flows as well ascontrolled access to specific network services and application.
Flexible 10GBE Port Upgrades
All X440-G2 base models come equipped with 4 upgradeable 1GbE ports resident on either the faceplate or rear panel of each model. These 1GbE ports can be upgraded to 10GbE Ethernet via a simple software license. This gives administrators the option to increase switch uplink speeds without replacing the entire switch.
High-Performance Stacking
ExtremeXOS SummitStack-V capabilities allow up to eight X440-G2 switches to be stacked together via two of the native X440-G2 stacking ports. SummitStack-V allows use of standard 10Gb Ethernet cabling and optics technologies providing longdistance stacking connectivity of up to 40 Km while eliminating the cable complexity of non-standard stacking options. X440-G2 switches can be stacked with other X450-G2 X460-G2 X670-G2 and X770 switches via SummitStack-V so long as all are running the same version of ExtremeXOS.
IEEE 802.3AT Poe-Plus
X440-G2 Series switches support both IEEE 802.3at PoE-Plus and IEEE 802.3af PoE to enable connection of standards compliant PoE devices today and into the future. Power over Ethernet allows connection of Ethernet- powered devices such as wireless access points Voice over IP phones and security cameras. The X440-G2 can also support full PoE-Plus 30W power across all 48 ports with an external redundant power supply (RPS).
Role-Based Policy
The X440-G2 supports role-based policies that can be centrally administered through the ExtremeManagement (formerly Netsight) policy manager. This policy framework empowers network administrators to define distinct roles or profiles to represent industry-specific operational groups that may exist in an education or a business environment (e.g. administrator teacher student guest). Each defined role can then begranted individualized access to specific network services and applications and these access privileges remain associated with users as they move across both wired and wireless network access points.
ExtremeCloud™ Management
Provides a single plane of glass for cloud managing both the wired and wireless components of your network. Zero touch provisioning also significantly reduces deployment times. Select X440-G2 models have been enabled for use with ExtremeCloud.
USB 2.0 Support
All X440-G2 switches have a USB 2.0 port that is supported as a port to a storage device for all EXOS versions of 22.1 or higher. |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 1000Base-X |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network |
| Power source | Power Supply |
| Product Family | ExtremeSwitching X440-G2 |
| Product Line | ExtremeSwitching |
| Product Model | X440-G2-48p-10GE4 |
| Product Name | ExtremeSwitching X440-G2-48p-10GE4 Ethernet Switch |
| Product Series | X440-G2 |
| Product Type | Ethernet Switch |
| UPC Alternates | 644728008667 |
| Weight (Approximate) | 14.55 lb |
| Width | 17.4" |
