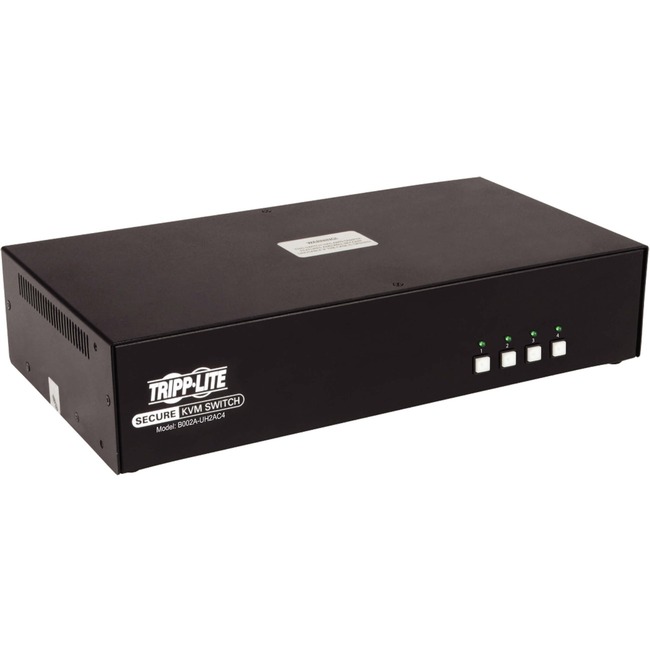

Tripp Lite Secure KVM Switch 4-Port Dual-Monitor HDMI 4K NIAP CAC PP3.0 TAA

This four-port KVM switch is recommended for any government military financial or healthcare environment where tight security of sensitive data is of utmost importance in a world of constantly changing cyberthreats. Each KVM port is an electronically isolated channel making it impossible for data to be transferred between connected computers through the KVM. The dual-monitor switch supports crystal-clear Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz.

NIAP PP3.0 Certified to Meet Today's Top Information Assurance Standards
This KVM switch is certified by NIAP (National Information Assurance Partnership) which is operated by the National Security Agency (NSA) to the latest Common Criteria Protection Profile for Peripheral Sharing Switches Version 3.0. Discrete processing paths to each connected system prevent data leakage transfer and crosstalk between adjacent ports. Peripheral isolation enables data to flow from device to host only.

Top-of-the-Line Security Features Keep Your Data Safe
Special protection prevents re-programming of firmware so the switch's KVM logic remains unaltered. The keyboard buffer clears automatically after data transmission ensuring no information is left stored. Plus you can only access connected computers via buttons on the switch's panel. Other port-switching methods such as On-Screen Display (OSD) and Hotkey Commands have been excluded to further ensure data integrity.

CAC Port Supports Biometric and Other Smart Card Readers
The Common Access Card port supports smart cards scanners and biometric readers including fingerprint readers to bolster security. You may assign and register specific peripherals to the CAC port providing a secure connection for user authentication.

Anti-Tampering Protection Prevents Physical Breeches
If the housing is opened internal anti-tamper switches will disable the unit causing it to become inoperable and the front-panel LEDs to flash repeatedly. Seals on the enclosure will provide visual evidence of tampering.

Maintains Constant Keyboard and Mouse Emulation for Smooth No-Delay Switching
Full USB device filtering ensures support for keyboard and mouse only. This KVM switch also supports secure video emulation and EDID learning which prevents unwanted data from transmitting through the DDC lines. Both keyboard/mouse and video emulation controllers restrict discovery of newly connected peripherals or monitors during switching operations shielding your computers from potential vulnerabilities.

TAA-Compliant for GSA Schedule Purchases
The B002A-UH2AC4 is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Typical Applications

• Control up to 4 computers with different security levels from a single monitor/keyboard/mouse
• Operate smart cards scanners fingerprint readers and other biometric devices via the CAC port
• Protect private information such as medical or military intelligence data from cyberattacks

System Requirements

• HDMI monitors
• Wired USB mouse/keyboard with no internal hub or composite device functions (wireless mouse/keyboard not supported)
• Computer with HDMI and USB ports (USB 2.0 required for CAC support)
• Computer and speakers with 3.5 mm stereo audio port (optional)
• Windows Mac Linux or any other major operating system

• 4-Port Dual-Monitor Secure KVM Switch HDMI - 4K NIAP PP3.0 Audio TAA
• External power supply w/NEMA 1-15P plug & 5 ft. cord (Input: 100-240V 50/60 Hz 0.8A; Output: 12V 2A)
• Owner's Manual
