Tripp Lite 3-Phase PDU Monitored 14.5kW 200/208/240V 42 C13; 6 C19; IEC-309
New
Tripp Lite 3-Phase PDU Monitored 14.5kW 200/208/240V 42 C13; 6 C19; IEC-309 - Monitored - IEC 60309 60A BLUE (3P+E) - 6 x IEC 60320 C19, 42 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical - MountRack-mountable - TAA Compliant
| $1,350.94 Retail $2,218.32 |

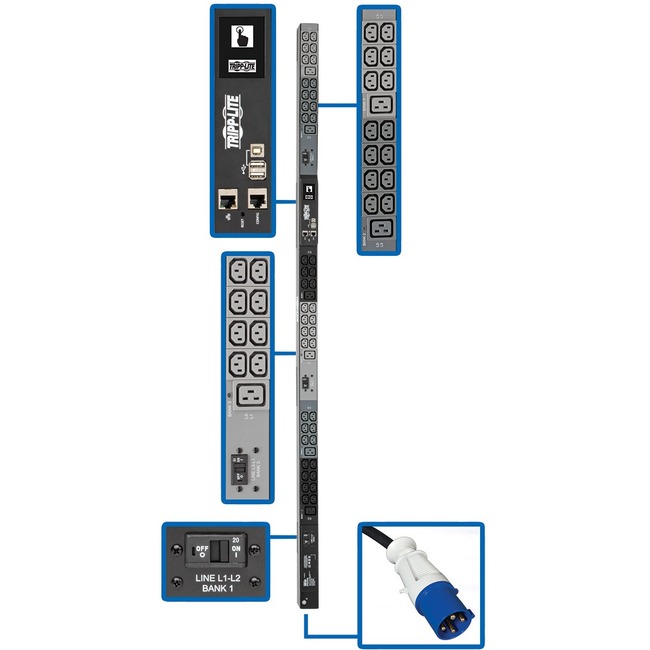

- 14.5kW 200/208/240V 3-phase monitored 0U PDU
- 48 outlets-42 C13, 6 C19-with plug-lock inserts
- Built-in LX Platform interface for remote access 24/7
- IEC 309 60A Blue (3P+E) input with 6 ft. AC power cord
- Touchscreen LCD with mobile access option via QR code
You may be also interested
$758.09
$957.00
$891.49
$1,448.92
$502.11
$791.86
$564.55
$748.00
$1,073.37
$1,230.00
$183.88
$229.95
$595.77
$792.00
$3,170.89
$4,395.00
$451.35
$600.00
$106.25
$185.00
$134.47
$247.10
$324.79
$490.46
$136.29
$159.95
$1,342.31
$1,805.00
$881.73
$1,377.80
$105.31
$119.95
$1,690.47
$1,656.00
$943.47
$1,063.00
$1,514.86
$2,390.54
$406.63
$600.00
Tripp Lite 3-Phase PDU Monitored 14.5kW 200/208/240V 42 C13; 6 C19; IEC-309 - Monitored - IEC 60309 60A BLUE (3P+E) - 6 x IEC 60320 C19, 42 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical - MountRack-mountable - TAA Compliant
Monitored - IEC 60309 60A BLUE (3P+E) - 6 x IEC 60320 C19, 42 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical - MountRack-mountable - TAA Compliant
Monitored - IEC 60309 60A BLUE (3P+E) - 6 x IEC 60320 C19, 42 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical - MountRack-mountable - TAA Compliant
Product Specifications
| Mounting Orientation | Vertical |
| Mounting Orientation | Vertical |
| PDU Type | Monitored |
| PDU Type | Monitored |
| Phase | Three Phase |
| Phase | Three Phase |
| Power Rating (Watt) | 14.50 kW |
| Power Rating (Watt) | 14.50 kW |
| Receptacle Detail | 42 x IEC 60320 C13 |
| Receptacle Detail | 6 x IEC 60320 C19 |
| Receptacle Detail | 6 x IEC 60320 C19 |
| Receptacle Detail | 42 x IEC 60320 C13 |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Country of origin | Taiwan |
| Country of origin | Taiwan |
| Depth | 2.5" |
| Depth | 2.5" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Height | 70" |
| Height | 70" |
| Input current | 35 A |
| Input current | 35 A |
| Input voltage | 230 V AC |
| Input voltage | 230 V AC |
| Limited Warranty | 2 Year |
| Limited Warranty | 2 Year |
| Management | Protocols:
|
| Management | Protocols:
|
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDU3EVN6G60B |
| Manufacturer Part Number | PDU3EVN6G60B |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | The PDU3EVN6G60B 14.5kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage frequency and load levels via built-in network connection. Recommended for IT and industrial applications it features 48 outlets-42 C13 6 C19-with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A six-foot cord with IEC 309 60A Blue (3P+E) input plug connects the 3-phase PDU to a compatible AC power source generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP. A color touchscreen LCD lets you toggle between menus to monitor input current level per phase and output current per load bank with ±1% billing-grade accuracy environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device. The 0U PDU mounts vertically in racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access. |
| Marketing Information | The PDU3EVN6G60B 14.5kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage frequency and load levels via built-in network connection. Recommended for IT and industrial applications it features 48 outlets-42 C13 6 C19-with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A six-foot cord with IEC 309 60A Blue (3P+E) input plug connects the 3-phase PDU to a compatible AC power source generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP. A color touchscreen LCD lets you toggle between menus to monitor input current level per phase and output current per load bank with ±1% billing-grade accuracy environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device. The 0U PDU mounts vertically in racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access. |
| Mount Type | Rack-mountable |
| Mount Type | Rack-mountable |
| Output voltage | 208 V AC |
| Output voltage | 200 V AC |
| Output voltage | 240 V AC |
| Output voltage | 200 V AC |
| Output voltage | 240 V AC |
| Output voltage | 208 V AC |
| Package Contents |
|
| Package Contents |
|
| Plug/Connector Type | IEC 60309 60A BLUE (3P+E) |
| Plug/Connector Type | IEC 60309 60A BLUE (3P+E) |
| Product Name | PDU3EVN6G60B 48-Outlet PDU |
| Product Name | PDU3EVN6G60B 48-Outlet PDU |
| Product Type | PDU |
| Product Type | PDU |
| Protection Type | Overload Protection |
| Protection Type | Overload Protection |
| Rack Height | 0U |
| Rack Height | 0U |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | IEC 60320 C13 |
| UPC Alternates | 037332195333 |
| UPC Alternates | 037332195333 |
| Weight (Approximate) | 18.66 lb |
| Weight (Approximate) | 18.66 lb |
| Width | 2.2" |
| Width | 2.2" |
