Tripp Lite PDU Metered 16 C13 4 C19 3.2/3.8kW 208/240V C20/L6-20P 10ft Cord

ENVIRONMENTAL

• Storage Temperature Range: -30°C to +50°C (-22°F to +122°F)
• Relative Humidity: 0-95% non-condensing

USER INTERFACE ALERTS & CONTROLS

• Front Panel LCD Display: Digital meter reports PDU output current in amps
• Switches: n/a

ENVIRONMENTAL

• Storage Temperature Range: -30°C to +50°C (-22°F to +122°F)
• Relative Humidity: 0-95% non-condensing

USER INTERFACE ALERTS & CONTROLS

• Front Panel LCD Display: Digital meter reports PDU output current in amps
• Switches: n/a

STANDARDS & COMPLIANCE

Certifications:

• Tested to UL60950-1 (USA) CAN/CSA (Canada) NOM (Mexico) CE; Series Number (s) AGPD6674; Safety Standards (Canada); CAN/CSA-C22.2 No. 60950-1:2007 (2nd Ed) +A1:2011 +A2:2014; Safety Standards (U.S.) UL60950-1:2007 (2nd Ed)+A1 R10.14; Safety Standards (International) IEC60950-1:2005 (2nd Ed)+A1:2009+A2:2013

STANDARDS & COMPLIANCE

Certifications:

• Tested to UL60950-1 (USA) CAN/CSA (Canada) NOM (Mexico) CE; Series Number (s) AGPD6674; Safety Standards (Canada); CAN/CSA-C22.2 No. 60950-1:2007 (2nd Ed) +A1:2011 +A2:2014; Safety Standards (U.S.) UL60950-1:2007 (2nd Ed)+A1 R10.14; Safety Standards (International) IEC60950-1:2005 (2nd Ed)+A1:2009+A2:2013

Single-Phase PDU Distributes and Monitors Network-Grade Power in Real Time

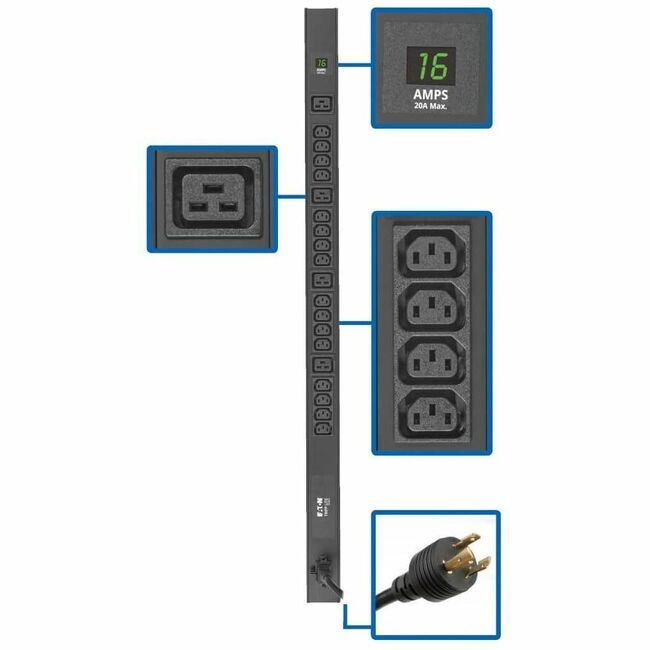

This metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications small computer rooms and other equipment rack applications the PDUMV20HV-36 features 16 C13 and four C19 200-240V outlets for connecting equipment. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged. The switchless design helps prevent an accidental shutdown which could lead to costly downtime.

Digital Load Meter Helps Prevent Potentially Expensive Overloads

A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels even while adding new equipment can keep your TCO (total cost of ownership) low.

Versatile Installation Options Give You Plenty of Choices

The 40-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting brackets with user-supplied hardware. You may also use the brackets to secure the PDU to the underside of a counter with the addition of two user-supplied screws. Bolt-down retention brackets keep power cords organized and your rack free of clutter.

Compatible with a Variety of Input Cords to Fit Your Facility's Power Source

The PDU's C20 inlet accepts a variety of 16A international cordsets. An included 10-ft. (3.05 m) cord with NEMA L6-20P input plug connects to an AC power source generator or protected UPS system to distribute power to connected loads.

Single-Phase PDU Distributes and Monitors Network-Grade Power in Real Time

This metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications small computer rooms and other equipment rack applications the PDUMV20HV-36 features 16 C13 and four C19 200-240V outlets for connecting equipment. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged. The switchless design helps prevent an accidental shutdown which could lead to costly downtime.

Digital Load Meter Helps Prevent Potentially Expensive Overloads

A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels even while adding new equipment can keep your TCO (total cost of ownership) low.

Versatile Installation Options Give You Plenty of Choices

The 40-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting brackets with user-supplied hardware. You may also use the brackets to secure the PDU to the underside of a counter with the addition of two user-supplied screws. Bolt-down retention brackets keep power cords organized and your rack free of clutter.

Compatible with a Variety of Input Cords to Fit Your Facility's Power Source

The PDU's C20 inlet accepts a variety of 16A international cordsets. An included 10-ft. (3.05 m) cord with NEMA L6-20P input plug connects to an AC power source generator or protected UPS system to distribute power to connected loads.

• PDUMV20HV-36 20-Outlets PDU
• 20 x Plug-lock Insert Sleeves
• C19 to L6-20P Input Cord 10-ft. (3.05 m)
• Rack-mounting Hardware
• Owner's Manual

• PDUMV20HV-36 20-Outlets PDU
• 20 x Plug-lock Insert Sleeves
• C19 to L6-20P Input Cord 10-ft. (3.05 m)
• Rack-mounting Hardware
• Owner's Manual
