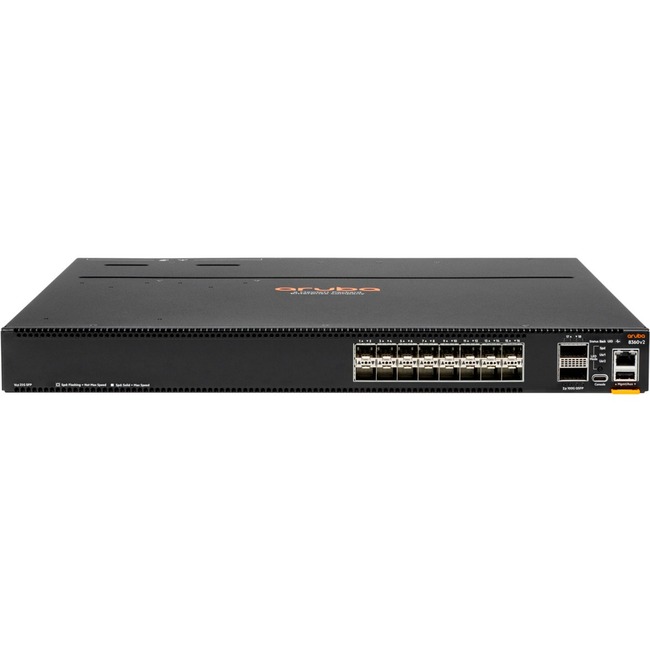

Aruba 8360v2- 32Y4C Ethernet Switch - Manageable - 25 Gigabit Ethernet, 100 Gigabit Ethernet - 25GBase-X, 100GBase-X - TAA Compliant - 3 Layer Supported - Modular - 425 W Power Consumption - Optical Fiber - 1U High - Rack-mountable - Lifetime Limited Warranty
Manageable - 25 Gigabit Ethernet, 100 Gigabit Ethernet - 25GBase-X, 100GBase-X - TAA Compliant - 3 Layer Supported - Modular - 425 W Power Consumption - Optical Fiber - 1U High - Rack-mountable - Lifetime Limited Warranty
| Compatible Rack Unit | 1U |
| Number of Power Supplies Supported | 2 |
| Number of Total Expansion Slots | 36 |
| Brand Name | Aruba |
| Depth | 16" |
| Ethernet Technology | 25 Gigabit Ethernet |
| Ethernet Technology | 100 Gigabit Ethernet |
| Expansion Slot Type | SFP28 |
| Expansion Slot Type | QSFP28 |
| Form factor | Rack-mountable |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Height | 1.7" |
| Layer Supported | 3 |
| Limited Warranty | Lifetime |
| Manageable | Yes |
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL703C#ABA |
| Manufacturer Website Address | http://www.hpe.com |
| Marketing Information | Aruba CX 8360 Switch Series
The Aruba CX 8360-48Y6C v2 Switch Series offers a flexible and innovative approach to addressing the application security and scalability demands of the mobile cloud and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses as well as virtual and highly dynamic data center environments. They provide up to 4.8Tbps of capacity with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5 5 Gbps) 10Gbps 25Gbps 40Gbps 50Gbps and 100Gbps.
The 8360-48Y6C v2 series includes industry-leading line rate ports with 1/10/25/50GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE or from 10GbE/40GbE uplinks to 50/100GbE ports.
In addition the switch supports low- density MACsec ports enabling secure connectivity at 10GbE and 25GbE over unsecured domains.
|
| Media Type Supported | Optical Fiber |
| Network Technology | 100GBase-X |
| Network Technology | 25GBase-X |
| Networking standards | IEEE 802.3an |
| Networking standards | IEEE 802.1Qbb |
| Networking standards | IEEE 802.1AEbn |
| Networking standards | IEEE 802.3cc |
| Networking standards | IEEE 802.1t |
| Networking standards | IEEE 802.3by |
| Networking standards | IEEE 802.3ae |
| Networking standards | IEEE 802.3ad |
| Networking standards | IEEE 802.1s |
| Networking standards | IEEE 802.1ak |
| Networking standards | IEEE 802.1ab |
| Networking standards | IEEE 802.3ba |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.1AX |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.1AEbw |
| Networking standards | IEEE 802.1ae |
| Networking standards | IEEE 802.1v |
| Networking standards | IEEE 802.1w |
| Networking standards | IEEE 802.1D |
| Package Contents | - 8360v2- 32Y4C Ethernet Switch
- 2 x PSU
- 3 x Fans
- 2 x Post Rack Kit
|
| Port/Expansion Slot Details | 32 x 25 Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 4 x 100 Gigabit Ethernet Expansion Slot |
| Power consumption | 425 W |
| Power source | Power Supply |
| Product Model | 8360v2- 32Y4C |
| Product Name | 8360v2- 32Y4C Ethernet Switch |
| Product Series | CX 8360 |
| Product Type | Ethernet Switch |
| UPC Alternates | 190017590738 |
| Weight (Approximate) | 18.06 lb |
| Width | 17.4" |
