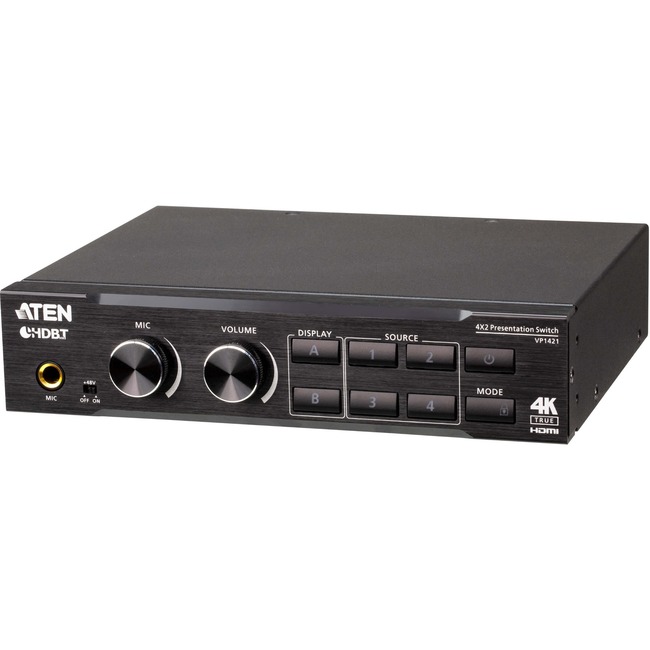

ATEN 4 x 2 True 4K Presentation Matrix Switch with Scaling, DSP, and HDBaseT-Lite

ATEN 4 x 2 True 4K Presentation Matrix Switch with Scaling, DSP, and HDBaseT-Lite

New
ATEN 4 x 2 True 4K Presentation Matrix Switch with Scaling, DSP, and HDBaseT-Lite - 4096 x 2160 - 4K - Twisted Pair - 4 x 2 - Notebook, Media Player - 1 x HDMI Out
0 Review(s) Item: VP1421 | By: ATEN |  0 In Stock

Sorry This Product is Currently not Available to Buy.

  • Multi-format AV Switching - switch among 1 HDBaseT, 2 HDMI and 1 VGA inputs to 1 HDBaseT and 1 HDMI outputs and support of audio DSP
  • HDBaseT-Lite technology - extends uncompressed AV, IR, RS-232, and power over one Cat 6/6a cable up to 70m
  • Superior video quality - True 4K resolutions up to 4096 x 2160@60Hz (4:4:4) (HDMI) / 4096 x 2160@60Hz (4:2:0) (HDBaseT); HDR support
  • Scaler - supports video upscaling to 4K for display A and downscaling to 1080p for display B
More Details
Sorry This Product is Currently not Available to Buy.

You may be also interested
ATEN 4 x 2 True 4K Presentation Matrix Switch with Scaling, DSP, and HDBaseT-Lite - 4096 x 2160 - 4K - Twisted Pair - 4 x 2 - Notebook, Media Player - 1 x HDMI Out
4096 x 2160 - 4K - Twisted Pair - 4 x 2 - Notebook, Media Player - 1 x HDMI Out

Product Specifications

Number of Input Devices Supported4
Brand NameATEN
Connectivity technologyCable
Depth7.9"
Device SupportedMedia Player
Device SupportedNotebook
Environmental CertificationWEEE
Environmental CertificationRoHS
Environmentally FriendlyYes
Form factorRack-mountable
Form factorUnder Table
Graphics Modes4K
Height1.7"
ManufacturerATEN Technology Inc
Manufacturer Part NumberVP1421
Manufacturer Website Addresshttp://www.aten.com/us/en/
Marketing Information

The VP1421 is a multi-in-one presentation switch that integrates a video matrix True 4K scaler HDBaseT extender audio DSP and analog-to-digital converter functions into a single compact enclosure ideal for meeting rooms and educational spaces.

True 4K HDR Visual Clarity

Supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and HDR to deliver vivid content in every presentation.

Smooth AV Switching Scaled to Perfection

Connect up to 4 sources (1 HDBaseT 2 HDMI 1 VGA) smoothly switch between them and display contents scaled perfectly to True 4K and 1080p simultaneously.

HDBaseT Extended Transmission over One Cable

Simplifies cabling and transmits AV power and bi-directional RS-232 and IR control signals up to 140m via Cat 6/6a or ATEN 2L-2910 Cat 6 cables (applying both HDBaseT input and output ports).

Built-in Advanced Audio DSP

Supports microphone input with selectable 48V Phantom Power and allows microphone input to be mixed with program audio and embedded into display output while automatically reducing program audio to enhance speech audibility.

Flexible Audio Embedding/De-Embedding

Supports stereo audio embedding into HDMI output or separation to Audio Line Out and Optical Audio Out. Extract HDMI and HDBaseT audio to different audio outputs as well to ease adaptation to you preferred audio setup.

Versatile Control Streamlined Operations

Control via front-panel pushbuttons IR remote web-based GUI and any control interface via RS-232 Ethernet and Contact Closure to streamline your operations.

Maximum Operating Distance459.32 ft
Maximum Video Resolution4096 x 2160
Media Type SupportedTwisted Pair
Number of HDMI Inputs2
Package Contents
  • 4 x 2 True 4K Presentation Matrix Switch with Scaling DSP and HDBaseT-Lite
  • 1x IR Receiver
  • 1x IR Remote Control
  • 4x 3-pole Terminal Blocks
  • 2x 5-pole Terminal Blocks
  • 1x Power Adapter
  • 1x User Instructions
Packaged Quantity1
Product Name4 x 2 True 4K Presentation Matrix Switch with Scaling DSP and HDBaseT-Lite
Product TypeAudio/Video Switchbox
UPC Alternates672792010880
Weight (Approximate)2.56 lb
Width6.7"

Material Safety Data Sheet
A Material Safety Data Sheet (MSDS) is a document that contains information on the potential hazards (health, fire, reactivity and environmental) and how to work safely with the chemical product.
