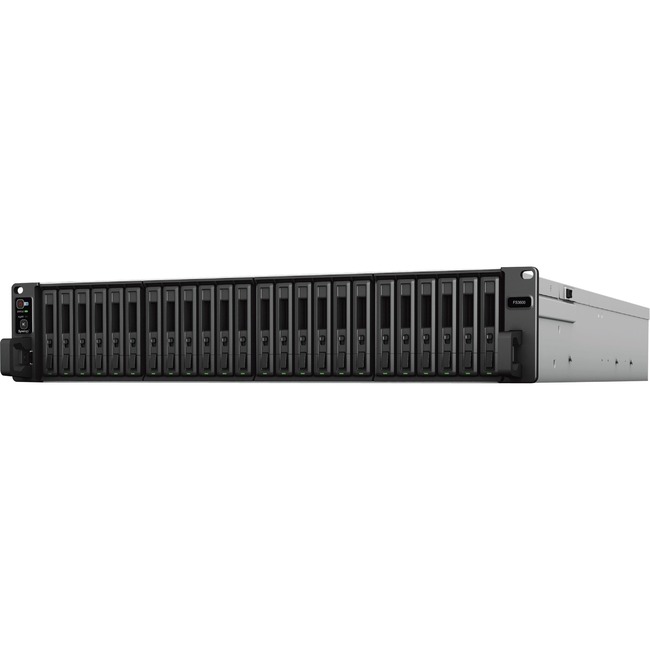

Synology FlashStation FS3600 SAN/NAS Storage System - Intel Xeon D-1567 Dodeca-core (12 Core) 2.10 GHz - 24 x HDD Supported - 0 x HDD Installed - 24 x SSD Supported - 0 x SSD Installed - 16 GB RAM DDR4 SDRAM - Serial Attached SCSI (SAS) Controller - RAID Supported 0, 1, 5, 6, 10, Basic, JBOD, RAID F1 - 24 x Total Bays - 24 x 2.5" Bay - 1 x Total Slot(s) - 10 Gigabit Ethernet - 2 USB Port(s) - 2 USB 3.0 Port(s) - Network (RJ-45) - DiskStation Manager - SMB, AFP, NFS, FTP, WEBDAV, CalDAV, iSC
Intel Xeon D-1567 Dodeca-core (12 Core) 2.10 GHz - 24 x HDD Supported - 0 x HDD Installed - 24 x SSD Supported - 0 x SSD Installed - 16 GB RAM DDR4 SDRAM - Serial Attached SCSI (SAS) Controller - RAID Supported 0, 1, 5, 6, 10, Basic, JBOD, RAID F1 - 24 x Total Bays - 24 x 2.5" Bay - 1 x Total Slot(s) - 10 Gigabit Ethernet - 2 USB Port(s) - 2 USB 3.0 Port(s) - Network (RJ-45) - DiskStation Manager - SMB, AFP, NFS, FTP, WEBDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, PPTP, ... - 1 - 2U
| Maximum Power Supply Wattage | 500 W |
| Number of Hard Drives Installed | 0 |
| Number of Power Supplies Installed | 2 |
| Processor Core | Dodeca-core (12 Core) |
| Redundant Power Supply | Yes |
| Brand Name | Synology |
| Controller Type | Serial Attached SCSI (SAS) |
| Country of origin | Taiwan |
| Depth | 28.5" |
| Ethernet Technology | 10 Gigabit Ethernet |
| Expansion Slot Type | PCI Express 3.0 x8 |
| Form factor | Rack-mountable |
| Height | 3.5" |
| Manufacturer | Synology Inc |
| Manufacturer Website Address | http://www.synology.com |
| Marketing Information | Accelerate Your Business with an Affordable All-Flash Solution
FS3600 is a 24-bay all-flash server for enterprises to boost the performance of I/O sensitive applications such as database virtual machines or OLTP with a competitive TCO. Powered by Synology's award-winning DiskStation Manager (DSM) operating system FS3600 makes data management tasks efficient and simple from a single pane of glass. The feature-rich integrated data protection mechanisms can further ensure service availability.
Fast Scalable and Affordable
FS3600 is an all-flash data management solution delivering more than 193000 iSCSI 4K random write IOPS ideal for enterprises pursuing a high-speed infrastructure that responds fast under I/O intensive workloads such as database virtual machines or OLTP applications. FS3600 is 10GbE-ready and can be easily integrated to businesses' existing LAN environment with a competitive cost per Gigabyte ratio at $0.23/GB. Powered by Synology DiskStation Manager (DSM) an award-winning and web-based operating system FS3600 provides an intuitive graphical user interface for IT administrators to manage and monitor system resource easily and efficiently. FS3600 supports easy storage capacity expansion with Synology Expansion Unit RX1217sas/RX2417sas with no need to remove existing data or install additional management software. Built for Your SAN Storage Needs
Synology FS3600 provides a fully certified virtualization solution with VMware® vSphere™ Microsoft® Hyper-V® Citrix® XenServer™ and OpenStack Cinder. It supports both iSCSI and NFS protocols and integrates with VMware VAAI and Microsoft ODX allowing IT administrators to effectively deploy and facilitate storage operations in various virtualization environments. IT administrators can efficiently manage virtualized workloads through built-in DSM features and add-on plugins for VMware and Windows environments. Features including fast clone NFS v4.1 and thin provisioning deliver more flexibility to accommodate to administration needs. With no additional license fees required your virtualized workload can be further protected by a complete suite of data protection applications including Synology Snapshot Replication Hyper Backup Active Backup for Business and Synology High Availability to cover various protection scenarios. Virtualize Workloads Flexibly in a Protected Environment Synology Virtual Machine Manager (VMM) is an intuitive hypervisor software application allowing you to easily set up virtual machines and run various operating systems including Windows Linux and Virtual DSM. Besides you can build up a cluster environment with multiple Synology systems while keeping the flexibility to scale out online and migrate virtual machines for load balancing and resource allocation. Each virtual machines can also be fully protected by a set of disaster recovery features including instant snapshot replication clone restore and failover safeguarding your digital assets with no additional cost. With VMM Pro license you can further utilize the advanced features of remote replication remote storage migration high availability and live migration minimizing the risk of service downtime and managing IT resources agilely. |
| Memory Technology | DDR4 SDRAM |
| Number of Network (RJ-45) Ports | 6 |
| Number of Total Expansion Bays | 24 |
| Operating System | DiskStation Manager |
| Packaged Quantity | 1 |
| Processor Manufacturer | Intel |
| Processor model | D-1567 |
| Processor Speed | 2.10 GHz |
| Processor Type | Xeon |
| Product Family | FlashStation FS |
| Product Line | FlashStation |
| Product Model | FS3600 |
| Product Name | FlashStation FS3600 SAN/NAS Storage System |
| Product Series | FS |
| Product Type | SAN/NAS Storage System |
| Protocols | PPTP |
| Protocols | NFS |
| Protocols | AFP |
| Protocols | TFTP |
| Protocols | Telnet |
| Protocols | SNMP |
| Protocols | LDAP |
| Protocols | L2TP |
| Protocols | SSL/TLS |
| Protocols | SFTP |
| Protocols | POP3 |
| Protocols | SSH |
| Protocols | WEBDAV |
| Protocols | FTP |
| Protocols | SMTP |
| Protocols | HTTPS |
| Protocols | CalDAV |
| Protocols | SMB |
| Protocols | iSCSI |
| Rack Height | 2U |
| RAID Levels | 0 1 5 6 10 Basic JBOD RAID F1 |
| Standard Memory | 16 GB |
| UPC Alternates | 846504003617 |
| Weight (Approximate) | 32.85 lb |
| Width | 19" |
