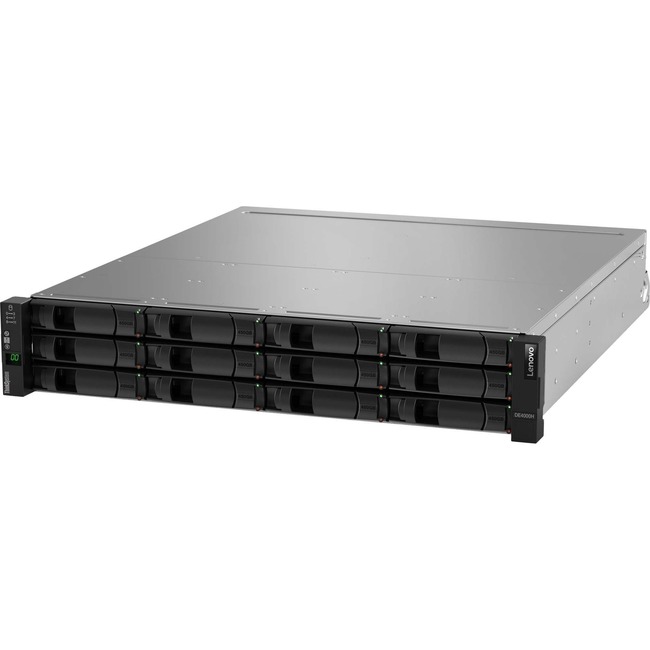

Lenovo ThinkSystem DE4000H SAS Hybrid Flash Array LFF - 12 x HDD Supported - 0 x HDD Installed - 12 x SSD Supported - 0 x SSD Installed - 2 x 12Gb/s SAS Controller - RAID Supported 0, 1, 3, 5, 6, 10 - 12 x Total Bays - 12 x 3.5" Bay - Gigabit Ethernet - 2 USB Port(s) - FCP, SSH, SMI-S, SNMP, SSL, LDAP - 4 SAS Port(s) External - 16 GB Flash Memory Capacity - 2U - Rack-mountable
12 x HDD Supported - 0 x HDD Installed - 12 x SSD Supported - 0 x SSD Installed - 2 x 12Gb/s SAS Controller - RAID Supported 0, 1, 3, 5, 6, 10 - 12 x Total Bays - 12 x 3.5" Bay - Gigabit Ethernet - 2 USB Port(s) - FCP, SSH, SMI-S, SNMP, SSL, LDAP - 4 SAS Port(s) External - 16 GB Flash Memory Capacity - 2U - Rack-mountable
| Fibre Channel | Yes |
| Fibre Channel | Yes |
| Maximum Power Supply Wattage | 913 W |
| Maximum Power Supply Wattage | 913 W |
| Number of Controllers | 2 |
| Number of Controllers | 2 |
| Number of Hard Drives Installed | 0 |
| Number of Hard Drives Installed | 0 |
| Number of SAS Ports (External) | 4 |
| Number of SAS Ports (External) | 4 |
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD) parts delivered. |
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD) parts delivered. |
| Brand Name | Lenovo |
| Brand Name | Lenovo |
| Depth | 19" |
| Depth | 19" |
| Environmental Certification | EU RoHS |
| Environmental Certification | EU RoHS |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Flash Memory Capacity | 16 GB |
| Flash Memory Capacity | 16 GB |
| Form factor | Rack-mountable |
| Form factor | Rack-mountable |
| Height | 3.3" |
| Height | 3.3" |
| Host interface | 12Gb/s SAS |
| Host interface | 12Gb/s SAS |
| Limited Warranty | 3 Year |
| Limited Warranty | 3 Year |
| Manufacturer | Lenovo Group Limited |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7Y74A00TWW |
| Manufacturer Part Number | 7Y74A00TWW |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Marketing Information | Lenovo ThinkSystem DE4000H is a scalable hybrid entry-level storage system that is designed to provide performance simplicity capacity security and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options flexible drive configurations and enhanced data management features. The ThinkSystem DE4000H is a perfect fit for a wide range of enterprise workloads including big data and analytics video surveillance technical computing backup and recovery and other storage I/O-intensive applications. ThinkSystem DE4000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF) 12 large form-factor (3.5-inch LFF) drives (2U12 LFF) or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers each with 8 GB or 32 GB memory for a system total of 16 GB or 64 GB. Host interface cards provide 12 Gb SAS 10/25 Gb iSCSI or 8/16/32 Gb FC connections. The ThinkSystem DE4000H Storage Array scales up to 192 drives with the attachment of Lenovo ThinkSystem DE120S 2U12 DE240S 2U24 SFF and DE600S 4U60 LFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs) and SAS solid-state drives (SSDs). |
| Marketing Information | Lenovo ThinkSystem DE4000H is a scalable hybrid entry-level storage system that is designed to provide performance simplicity capacity security and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options flexible drive configurations and enhanced data management features. The ThinkSystem DE4000H is a perfect fit for a wide range of enterprise workloads including big data and analytics video surveillance technical computing backup and recovery and other storage I/O-intensive applications. ThinkSystem DE4000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF) 12 large form-factor (3.5-inch LFF) drives (2U12 LFF) or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers each with 8 GB or 32 GB memory for a system total of 16 GB or 64 GB. Host interface cards provide 12 Gb SAS 10/25 Gb iSCSI or 8/16/32 Gb FC connections. The ThinkSystem DE4000H Storage Array scales up to 192 drives with the attachment of Lenovo ThinkSystem DE120S 2U12 DE240S 2U24 SFF and DE600S 4U60 LFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs) and SAS solid-state drives (SSDs). |
| Number of Total Expansion Bays | 12 |
| Number of Total Expansion Bays | 12 |
| Package Contents | - ThinkSystem DE4000H FC Hybrid Flash Array LFF
- Rack Mount Kit
- 2 m USB Cable (USB Type A to Micro-USB)
- Quick Installation Guide
- Electronic Publications Flyer
- 2 x Power Cables
|
| Package Contents | - ThinkSystem DE4000H FC Hybrid Flash Array LFF
- Rack Mount Kit
- 2 m USB Cable (USB Type A to Micro-USB)
- Quick Installation Guide
- Electronic Publications Flyer
- 2 x Power Cables
|
| Plug/Connector Type | C13 to IEC 320-C14 |
| Plug/Connector Type | C13 to IEC 320-C14 |
| Product Family | ThinkSystem DE |
| Product Family | ThinkSystem DE |
| Product Line | ThinkSystem |
| Product Line | ThinkSystem |
| Product Model | DE4000H |
| Product Model | DE4000H |
| Product Name | ThinkSystem DE4000H SAS Hybrid Flash Array LFF |
| Product Name | ThinkSystem DE4000H SAS Hybrid Flash Array LFF |
| Product Series | DE |
| Product Series | DE |
| Product Type | DAS/SAN Storage System |
| Product Type | DAS/SAN Storage System |
| Protocols | SMI-S |
| Protocols | SSH |
| Protocols | SSH |
| Protocols | SNMP |
| Protocols | LDAP |
| Protocols | SSL |
| Protocols | FCP |
| Protocols | LDAP |
| Protocols | SNMP |
| Protocols | SSL |
| Protocols | FCP |
| Protocols | SMI-S |
| Rack Height | 2U |
| Rack Height | 2U |
| RAID Levels | 0 1 3 5 6 10 |
| RAID Levels | 0 1 3 5 6 10 |
| Width | 17.6" |
| Width | 17.6" |
