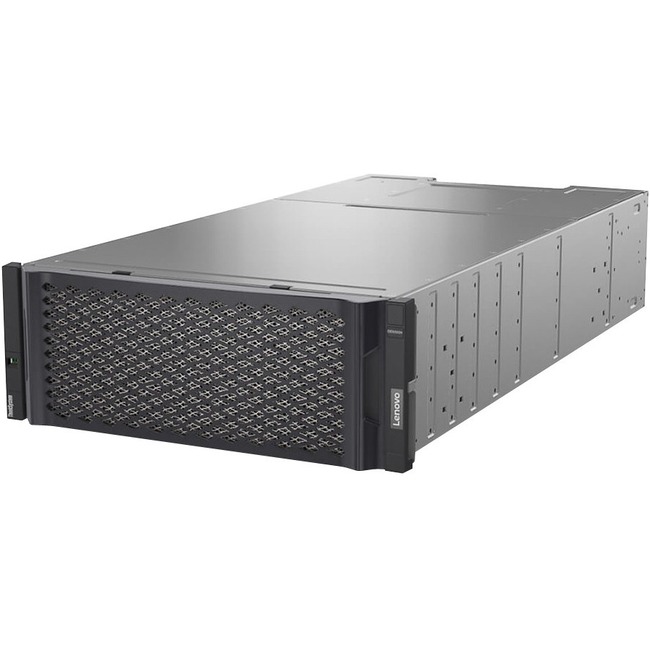

Lenovo ThinkSystem DE4000H DAS/SAN Storage System - 60 x HDD Supported - 60 x SSD Supported - 2 x Serial Attached SCSI (SAS) Controller - RAID Supported 0, 1, 3, 5, 6, 10 - 60 x Total Bays - 60 x 3.5" Bay - Gigabit Ethernet - 2 USB Port(s) - Network (RJ-45) - FCP, SSH, SMI-S, SNMP, SSL, LDAP - 8 GB Flash Memory Capacity - 4U - Rack-mountable
60 x HDD Supported - 60 x SSD Supported - 2 x Serial Attached SCSI (SAS) Controller - RAID Supported 0, 1, 3, 5, 6, 10 - 60 x Total Bays - 60 x 3.5" Bay - Gigabit Ethernet - 2 USB Port(s) - Network (RJ-45) - FCP, SSH, SMI-S, SNMP, SSL, LDAP - 8 GB Flash Memory Capacity - 4U - Rack-mountable
| Maximum Power Supply Wattage | 2325 W |
| Number of Controllers | 2 |
| Number of Hard Drives Installed | No |
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD) parts delivered. |
| Brand Name | Lenovo |
| Controller Type | Serial Attached SCSI (SAS) |
| Depth | 36.3" |
| Environmental Certification | EU RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Flash Memory Capacity | 8 GB |
| Form factor | Rack-mountable |
| Height | 6.9" |
| Limited Warranty | 3 Year |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7Y77A00AWW |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Marketing Information | Lenovo ThinkSystem DE4000H is a scalable hybrid entry-level storage system that is designed to provide performance simplicity capacity security and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options flexible drive configurations and enhanced data management features. The ThinkSystem DE4000H is a perfect fit for a wide range of enterprise workloads including big data and analytics video surveillance technical computing backup and recovery and other storage I/O-intensive applications. ThinkSystem DE4000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF) 12 large form-factor (3.5-inch LFF) drives (2U12 LFF) or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers each with 8 GB or 32 GB memory for a system total of 16 GB or 64 GB. Host interface cards provide 12 Gb SAS 10/25 Gb iSCSI or 8/16/32 Gb FC connections. The ThinkSystem DE4000H Storage Array scales up to 192 drives with the attachment of Lenovo ThinkSystem DE120S 2U12 DE240S 2U24 SFF and DE600S 4U60 LFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs) and SAS solid-state drives (SSDs). |
| Number of Total Expansion Bays | 60 |
| Package Contents | - ThinkSystem DE4000H DAS/SAN Storage System
- Rack Mount Kit
- 2 m USB Cable (USB Type A to Micro-USB)
- Quick Installation Guide
- Electronic Publications Flyer
- 2 x Power Cables
|
| Plug/Connector Type | C19 to IEC 320-C20 |
| Product Family | ThinkSystem DE |
| Product Line | ThinkSystem |
| Product Model | DE4000H |
| Product Name | ThinkSystem DE4000H DAS/SAN Storage System |
| Product Series | DE |
| Product Type | DAS/SAN Storage System |
| Protocols | SMI-S |
| Protocols | FCP |
| Protocols | SSH |
| Protocols | LDAP |
| Protocols | SNMP |
| Protocols | SSL |
| Rack Height | 4U |
| RAID Levels | 0 1 3 5 6 10 |
| Weight (Approximate) | 238.25 lb |
| Width | 17.7" |
