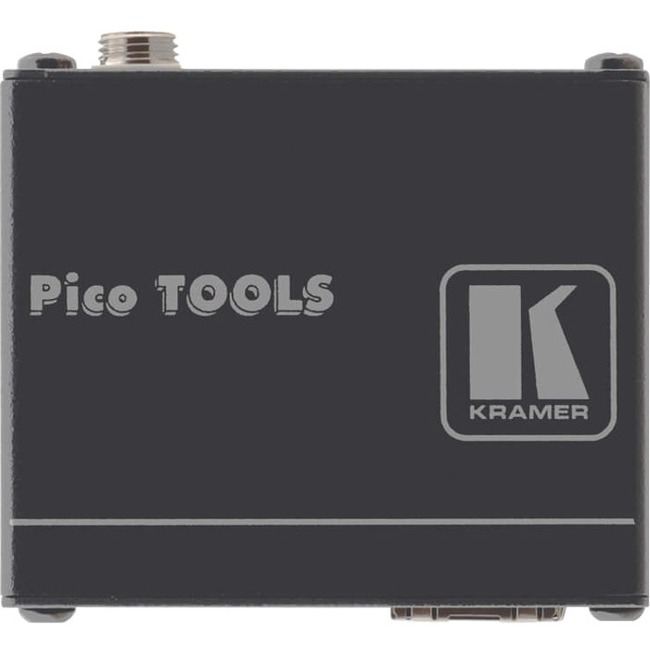

Kramer 4K60 4:2:0 HDMI HDCP 2.2 Compact Transmitter over Long-Reach HDBaseT - 1 Input Device - 229.66 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 4K - 3840 x 2160 - Twisted Pair - Rack-mountable
1 Input Device - 229.66 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 4K - 3840 x 2160 - Twisted Pair - Rack-mountable
| Network (RJ-45) | Yes |
| Transmitter Depth | 2.04" |
| Transmitter Height | 0.96" |
| Transmitter Weight (Approximate) | 3.53 oz |
| Transmitter Width | 2.45" |
| Brand Name | Kramer |
| Connectivity technology | Wired |
| Form factor | Rack-mountable |
| Graphics Modes | 4K |
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | 50-80231090 |
| Manufacturer Website Address | http://www.kramerelectronics.com |
| Marketing Information | PT-580T is a compact high-performance long-reach HDBaseT transmitter for 4K60Hz (4:2:0) HDMI signal over twisted pair. PT-580T converts the input signal into the transmitted HDBaseT signal. It extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions. - High Performance Standard Extender - Professional HDBaseT extender for providing long-reach signals over twisted-pair copper infrastructures. PT-580T is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance use recommended Kramer cables.
- HDMI Signal Extension - HDMI 2.0 and HDCP 2.2 compliant. Supports deep color x.v.Color™ lip sync HDMI uncompressed audio channels Dolby TrueHD DTS-HD 2K 4K and 3D. EDID and CEC signals are passed through from the source to the display.
- I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
- Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
- Cost-effective Maintenance - Status LED indicator facilitates easy local maintenance and troubleshooting.
- Easy Installation - Compact Pico TOOLS™ fan-less enclosure for dropped-ceiling or discreet mounting or side-by-side mounting of 4 units in a 1U rack space with the optional RK-4PT rack adapter.
Applications - Long-distance AV signal extension for multi-room large dividable auditoriums and lecture hall connectivity
- AV extension in conference rooms boardrooms control rooms hotels and large church facilities
|
| Maximum Operating Distance | 229.66 ft |
| Maximum Video Resolution | 3840 x 2160 |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 1 |
| Product Line | Pico TOOLS |
| Product Model | PT-580T |
| Product Name | 4K60 4:2:0 HDMI HDCP 2.2 Compact Transmitter over Long-Reach HDBaseT |
| Product Type | Video Extender Transmitter |
| UPC Alternates | 002502845462 |
