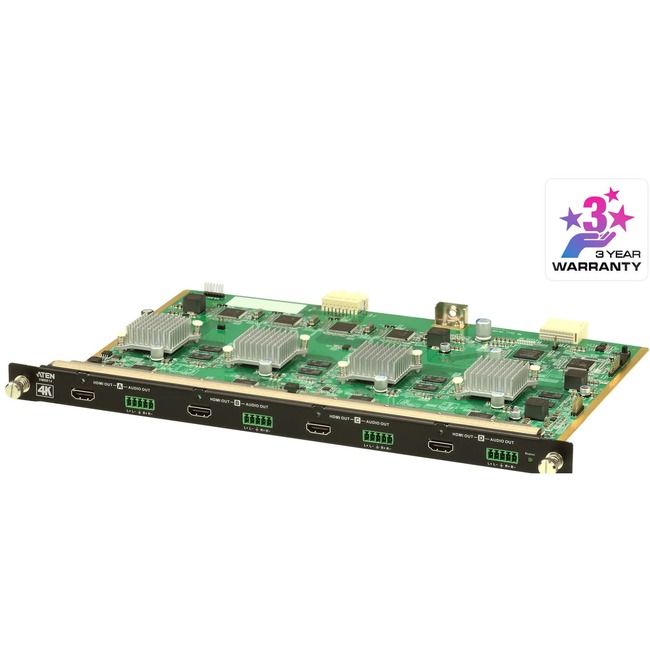

ATEN VM8814 4-Port 4K HDMI Output Board with Scaler - 4-port HDMI Output Board that is compatible with the ATEN VM1600/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility. continuous video streams, real-time switching, and stable signal transmissions
4-port HDMI Output Board that is compatible with the ATEN VM1600/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility. continuous video streams, real-time switching, and stable signal transmissions
| Material Details | |
| Product Material | Metal |
| Additional Information | - Video Output
- Interfaces 4 x HDMI Type A Female (Black)
- Impedance 100 ?
- Max. Distance Up to 15m
- Video
- Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
- Max. Pixel Clock 340 MHz
- Compliance HDMI (3D Deep Color 4K)
- HDCP 2.2 Compatible
- Consumer Electronics Control (CEC)
- Max. Resolution 4096x2160/3840x2160@60Hz (4:2:0);
- 4096x2160/3840x2160@30Hz (4:4:4)
- Audio
- Output 4 x Captive Screw Connector 5 pole
- Power Consumption 20W:94BTU
- Environmental
- Operating Temperature 0 - 40°C
- Storage Temperature -20 - 60°C
- Humidity 0 - 80% RH Non-Condensing
|
| Application/Usage | Matrix Switcher |
| Brand Name | ATEN |
| Compatibility | ATEN Matrix Switchers:
|
| Country of origin | Taiwan |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Rack-mountable |
| Height | 0.9" |
| Length | 13.9" |
| Limited Warranty | 3 Year |
| Manufacturer | ATEN Technology Inc |
| Manufacturer Part Number | VM8814 |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Marketing Information | The VM8814 is a 4K HDMI output board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 HDMI sources to 4 displays. In addition to the HDMI interface that carries digital A/V signals the VM8814 is equipped with 4 stereo audio output ports that allow HDMI audio extraction. Considering the need for fast video switching and resolution adaptation in video wall applications the VM8814 supports Seamless Switch™ and EDID Expert™ that make real-time video switching possible and contains a built-in 4K scaler that handles different video resolutions. The ATEN VM input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for video-critical applications. |
| Package Contents | - 4-Port 4K HDMI Output Board with Scaler
- 4 x Terminal Blocks
- 1 x User Instructions
|
| Packaged Quantity | 1 |
| Product Name | 4-Port 4K HDMI Output Board with Scaler |
| Product Series | VM |
| Product Type | HDMI Output Board |
| UPC Alternates | 672792008153 |
| Weight (Approximate) | 1.43 lb |
| Width | 9.4" |
