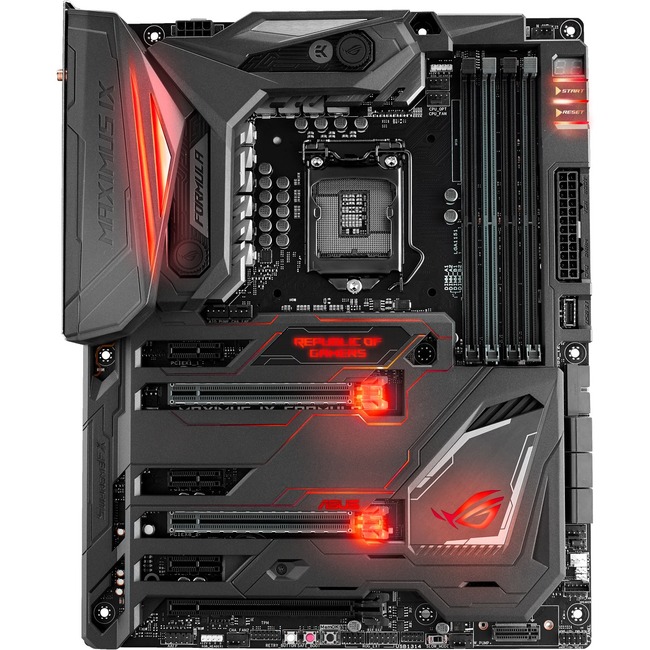

Asus ROG Maximus IX Formula Desktop Motherboard - Intel Z270 Chipset - Socket H4 LGA-1151 - ATX - Core i7 Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - UDIMM, DIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 6 x SATA Interfaces
Core i7 Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - UDIMM, DIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 6 x SATA Interfaces
| Chipset Manufacturer | Intel |
| Chipset Model | Z270 |
| Graphics Controller Model | HD Graphics |
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported | 3200 MHz |
| Memory Speed Supported | 4000 MHz |
| Memory Speed Supported | 2133 MHz |
| Memory Speed Supported | 3000 MHz |
| Memory Speed Supported | 3866 MHz |
| Memory Speed Supported | 3300 MHz |
| Memory Speed Supported | 3466 MHz |
| Memory Speed Supported | 3400 MHz |
| Memory Speed Supported | 3333 MHz |
| Memory Speed Supported | 2400 MHz |
| Memory Speed Supported | 2666 MHz |
| Memory Speed Supported | 3600 MHz |
| Memory Speed Supported | 2800 MHz |
| Memory Speed Supported | 3733 MHz |
| Multi GPU Supported | SLI |
| Multi GPU Supported | CrossFireX |
| Number of Memory Slots | 4 |
| Number of Onboard USB 3.0 Ports | 2 |
| Number of PCI Express x1 Slots | 3 |
| Number of SATA Interfaces | 6 |
| Onboard Video | CPU Dependent Video |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Core i7 |
| Processor Supported | Core i5 |
| Processor Supported | Celeron |
| Processor Supported | Pentium |
| Processor Supported | Core i3 |
| S/PDIF | Yes |
| Audio Channels | 7.1 |
| Brand Name | Asus ROG |
| Controller Type | Serial ATA/600 |
| Depth | 9.6" |
| Environmental Certification | RoHS |
| Form factor | ATX |
| Limited Warranty | 3 Year |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | ROG MAXIMUS IX FORMULA |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | Designed for hardcore water cooling the ROG Maximus IX Formula takes high-end gaming to the next level. Connect liquid loops to the CrossChill EK II VRM block for optimal cooling. Customizable AURA Sync lighting and an integrated I/O shield elevate the styling while a full backplate adds structural reinforcement. |
| Memory form factor | DIMM |
| Memory form factor | UDIMM |
| Memory Technology | DDR4 SDRAM |
| Package Contents | - Maximus IX Formula Desktop Motherboard
- User Guide
- Support DVD
- 3 x 2-in-1 SATA 6Gb/s Cables
- 1 x SLI™ HB Bridge
- 1 x Q-Connector
- 1 x ROG Coaster
- 1 x 10-in-1 ROG Cable Label
- 1 x CPU Installation Tool
- 1 x M.2 Screw Package
- 1 x Extension Cable for RGB Strips (80cm)
- 1 x ROG sticker
|
| Product Model | Maximus IX Formula |
| Product Name | Maximus IX Formula Desktop Motherboard |
| Product Type | Desktop Motherboard |
| RAID Levels | 5 |
| RAID Levels | 1 |
| RAID Levels | 0 |
| RAID Levels | 10 |
| UPC Alternates | 889349572498 |
| Width | 12" |
