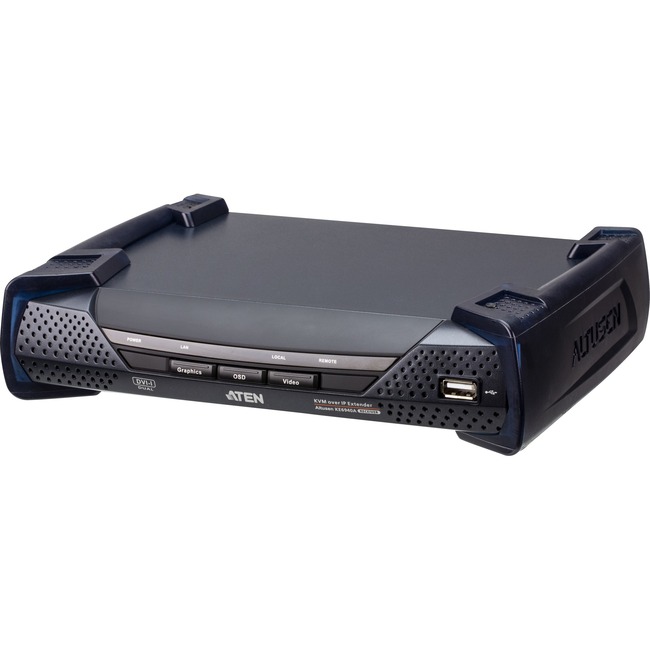

ATEN DVI-I Dual Display KVM over IP Receiver - 2 Computer(s) - WUXGA - 1920 x 1200 Maximum Video Resolution - 1 x Network (RJ-45) - 4 x USB - 2 x DVI - Desktop, Rack-mountable
2 Computer(s) - WUXGA - 1920 x 1200 Maximum Video Resolution - 1 x Network (RJ-45) - 4 x USB - 2 x DVI - Desktop, Rack-mountable
| Number of DVI Ports | 2 |
| Receiver Depth | 6.76" |
| Receiver Height | 2.16" |
| Receiver Weight (Approximate) | 2.89 lb |
| Receiver Width | 8.96" |
| Brand Name | ATEN |
| Connectivity technology | Wired |
| Device type | KVM Extender |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Form factor | Rack-mountable |
| Form factor | Desktop |
| Graphic Mode | WUXGA |
| Limited Warranty | 3 Year |
| Manufacturer | ATEN Technology Inc |
| Manufacturer Part Number | KE6940AR |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Marketing Information | The KE6940A extender is consisted of a high performance IP-based transmitter (KE6940AT) that connects to the computer and a receiver (KE6940AR) that provides console access from a separate location. The KE6940A allows extended access of computer systems remotely via USB consoles (USB keyboard USB mouse DVI monitor) over intranet enabling users to place the computer system in secure and temperature controlled environments which maybe isolated from users' workstation. The KE6940A DVI-I Dual Display KVM over IP Extender supports two DVI displays at each end and provides lossless and low latency video transmissions up to 1920 x 1200 @ 60Hz.
The KE6940A support connections via an RJ-45 port or a SFP slot. The transmitter and receiver can be connected either directly to each other or via a high-speed network over a copper-based or fiber-based LAN. Connecting via the SFP slot with 1Gbps SFP fiber module expansions on fiber optic network you can extend transmission distances up to 10km. The KE6940A also features dual power supplies for redundancy to ensure dependable services.
As an IP-based matrix extender the KE6940A can be used as a point-to-point / point-to-multipoint / multipoint-to-point extender or integrated into a KVM over IP Matrix System (multipoint-to-multipoint) when combined with the KE Matrix Management Software (CCKM) providing more flexible applications in different working environments.
Implementing the KE Matrix Management Software (CCKM) with KE6940A IT administrators can benefit from advanced features such as auto detection of all KE6940A devices on the same subnet for the sake of fast installation or configuration username/password authentication and authorization and the ability to define different types of connections that can be switched and shared. Security features also provide extra protection supporting AES-128bits encryption for secured data transmissions while RADIUS LDAP AD or remote user authentication provides an added layer of connection security. Moreover with an OSD RS-232 support and Auto MDIX the KE6940A is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet. |
| Maximum Video Resolution | 1920 x 1200 |
| Microphone | Yes |
| Number of USB Ports | 4 |
| Package Contents | - DVI-I Dual Display KVM over IP Receiver
- 1 x Power Adapter & Power Cord
- 1 x KVM Cable (DVI-D USB Audio; 1.8m/6ft)
- 1 x DVI-D Cable 1.8 m
- 1 x Foot Pad Set (4 pcs.)
- 1 x Mounting Kit
- 1 x User Instructions
|
| Packaged Quantity | 1 |
| Product Line | ALTUSEN |
| Product Name | DVI-I Dual Display KVM over IP Receiver |
| Product Type | KVM Extender Receiver |
| UPC Alternates | 672792011115 |
