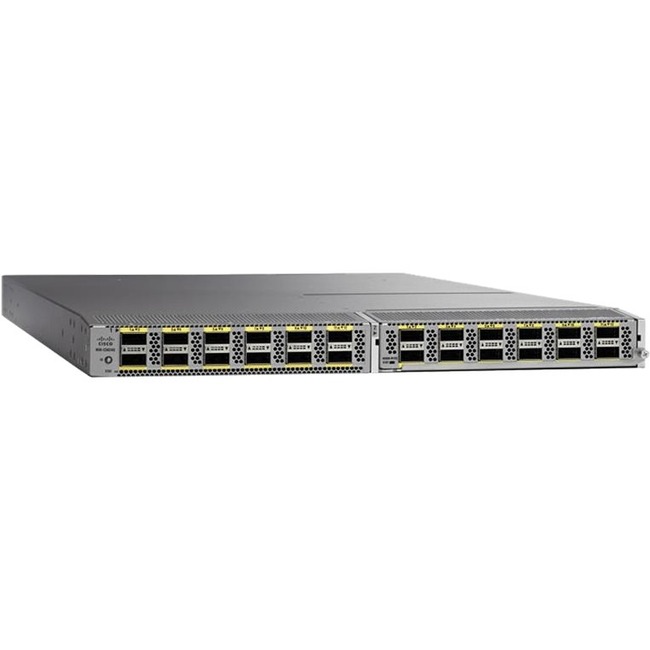

Cisco Nexus 5624Q Switch Chassis - Manageable - 40 Gigabit Ethernet - 40GBase-X - 3 Layer Supported - Power Supply - Optical Fiber - 1U High - Rack-mountable - 1 Year Limited Warranty
Manageable - 40 Gigabit Ethernet - 40GBase-X - 3 Layer Supported - Power Supply - Optical Fiber - 1U High - Rack-mountable - 1 Year Limited Warranty
| Compatible Rack Unit | 1U |
| Number of Total Expansion Slots | 24 |
| PoE (RJ-45) Port | No |
| Brand Name | Cisco |
| Certifications & Standards | Safety: - UL 60950-1 Second Edition
- CAN/CSA-C22.2 No. 60950-1 Second Edition
- EN 60950-1 Second Edition
- IEC 60950-1 Second Edition
- AS/NZS 60950-1
- GB4943
EMC: Emissions - 47CFR Part 15 (CFR 47) Class A
- AS/NZS CISPR22 Class A
- CISPR22 Class A
- EN55022 Class A
- ICES003 Class A
- VCCI Class A
- EN61000-3-2
- EN61000-3-3
- KN22 Class A
- CNS13438 Class A
EMC: Immunity - EN55024
- CISPR24
- EN300386
- KN 61000-4 series
IEEE Standards:
- 802.1D: Spanning Tree Protocol
- 802.1p: CoS prioritization
- 802.1Q: VLAN tagging
- 802.1Qaz: Enhanced transmission selection
- 802.1Qbb: Per-priority Pause
- 802.1s: Multiple VLAN instances of Spanning Tree Protocol
- 802.1w: Rapid reconfiguration of Spanning Tree Protocol
- 802.3: Ethernet
- 802.3ad: LACP with fast timers
- 802.3ae
|
| Depth | 30" |
| Environmental Certification | RoHS-6 |
| Ethernet Technology | 40 Gigabit Ethernet |
| Expansion Slot Type | QSFP+ |
| Form factor | Rack-mountable |
| Height | 1.8" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Layer Supported | 3 |
| Limited Warranty | 1 Year |
| Manageable | Yes |
| Management | - SNMP v1v2v3
- SSHv2
- MIB
- RMON
- CLI
- Telnet
- DHCP
- VLAN
- QoS
- Syslog
|
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | N5624-B-24Q |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | The increasing number of applications requiring higher bandwidths and the availability of less expensive 10-Gbps servers are combining to drive a growing demand for dense 10 and 40 Gigabit Ethernet switches. At the same time data center architecture is evolving in response to new demands on the IT infrastructure. Application workloads are being deployed across a mix of virtualized and nonvirtualized server and storage infrastructure requiring a network infrastructure that provides consistent connectivity security and visibility across a range of bare-metal virtualized and cloud computing environments.
The Cisco Nexus® 5600 platform Gigabit Ethernet switches are the third generation of the Cisco Nexus 5000 Series Switches: the leading data center server access switches. The Cisco Nexus 5600 platform the successor to the widely adopted Cisco Nexus 5500 platform switches maintains all the existing Cisco Nexus 5500 platform features including LAN and SAN convergence (unified ports Fibre Channel over Ethernet [FCoE] fabric extenders (FEX) and Cisco® FabricPath. In addition the Cisco Nexus 5600 platform offers integrated line-rate Layer 2 and 3 with true 40 Gigabit Ethernet support the Cisco Dynamic Fabric Automation (DFA) innovation Network Virtualization Using Generic Routing Encapsulation (NVGRE) VXLAN bridging and routing capabilities excellent network programmability and visibility deep buffers and significantly higher scale and performance for highly virtualized automated and cloud environments. |
| Media Type Supported | Optical Fiber |
| Network Technology | 40GBase-X |
| Package Contents | - Nexus 5624Q Switch Chassis
- 2 x PSU
- 3 x Fan
- 1 x GEM
|
| Port/Expansion Slot Details | 24 x 40 Gigabit Ethernet Expansion Slot |
| Power source | Power Supply |
| Product Family | Nexus 5000 |
| Product Line | Nexus |
| Product Model | 5624Q |
| Product Name | Nexus 5624Q Switch Chassis |
| Product Series | 5000 |
| Product Type | Switch Chassis |
| UPC Alternates | 882658795145 |
| Weight (Approximate) | 32 lb |
| Width | 17.3" |
