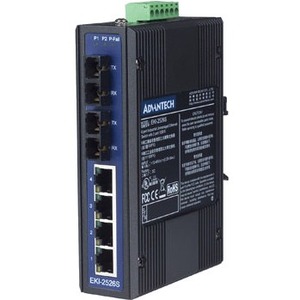

Advantech 4+2 100FX Port Single Mode Unmanaged Industrial Ethernet Switch - 6 Ports - 2 Layer Supported - Twisted Pair, Optical Fiber - Wall Mountable, DIN Rail Mountable
6 Ports - 2 Layer Supported - Twisted Pair, Optical Fiber - Wall Mountable, DIN Rail Mountable
Total Number of Network Ports | 6 |
Brand Name | Advantech |
Depth | 3.7" |
Ethernet Technology | Fast Ethernet |
Form factor | Wall Mountable |
Form factor | DIN Rail Mountable |
Height | 5.5" |
Layer Supported | 2 |
Manageable | No |
Manufacturer | Advantech Co. Ltd |
Manufacturer Part Number | EKI-2526S-AE |
Manufacturer Website Address | http://www.advantech.com |
Marketing Information | EKI-2525M/2526M/2526S are industrial-grade Ethernet switches that enable you to expand your industrial network fast and cost-effectively. The EKI-2525M/2526M/2526S have four 10/100 Mbps Ethernet ports and additionally the EKI-2525M/2526M provides one or two multi-mode fiber-optic ports while the 2526S provide one or two single-mode single-mode fiber-optic ports. Using fiber-optics you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high- distance (up to 30 km) transmissions.
EKI-2525M/2526M/2526S have industrial-grade designs assuring high reliability and stability in harsh environments making it a robust bridge between enterprise fiber-optic backbones and Ethernet devices. EKI-2525M/2526M/2526S includes a switch controller that can automatically sense transmission speeds. The RJ45 interface can also be autodetected so MDI or MDI-X is automatically selected and a crossover cable is not required. All the Ethernet ports have memory buffers that support the store and forward mechanism assuring all data is transmitted properly. |
Media Type Supported | Optical Fiber |
Media Type Supported | Twisted Pair |
Network Technology | 100Base-FX |
Network Technology | 10/100Base-TX |
Packaged Quantity | 1 |
Port/Expansion Slot Details | 6 x Fast Ethernet Network |
Product Model | EKI-2526S |
Product Name | 4+2 100FX Port Single Mode Unmanaged Industrial Ethernet Switch |
Product Series | EKI-2000 |
Product Type | Ethernet Switch |
Width | 1.2" |
