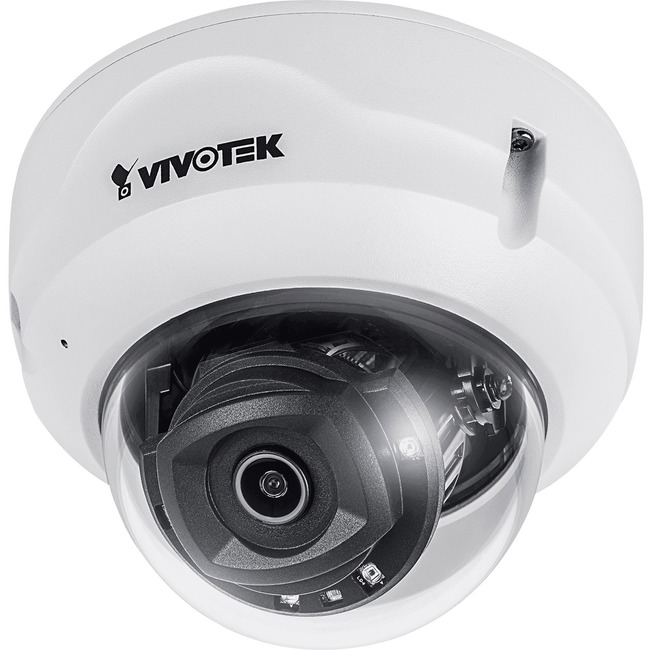

Vivotek FD9389-EHV-v2 5 Megapixel Outdoor, Indoor Network Camera - Color - Dome - TAA Compliant - 98.43 ft Infrared Night Vision - H.265, H.264, MJPEG - 2560 x 1920 - 2.80 mm Fixed Lens - CMOS - IK10 - IP66 - Vandal Proof, Weather Proof
98.43 ft Infrared Night Vision - H.265, H.264, MJPEG - 2560 x 1920 - 2.80 mm Fixed Lens - CMOS - IK10 - IP66 - Vandal Proof, Weather Proof
| Field of View | 103° (Horizontal) 76° (Vertical) 134° (Diagonal) |
| Impact Protection Rating | IK10 |
| Indoor/Outdoor | Outdoor |
| Indoor/Outdoor | Indoor |
| Ingress Protection Rating | IP66 |
| Maximum Aperture | f/2 |
| Maximum Illumination | 0 lux |
| Minimum Operating Temperature | -22°F (-30°C) |
| Network (RJ-45) | Yes |
| Night Vision Distance | 98.43 ft |
| Night Vision Type | Infrared |
| Number of IR LEDs | 4 |
| Operating Humidity | 98% |
| Brand Name | Vivotek |
| Color Supported | Color |
| Connectivity technology | Wired |
| Diameter | 5.1" |
| Durability | Weather Proof |
| Durability | Vandal Proof |
| Effective Camera Resolution | 5 Megapixel |
| Features | Electronic Image Stabilization |
| Features | Defog |
| Features | Cross Line Detection |
| Features | Password Protection |
| Features | Audio Detection |
| Features | Shock Detection |
| Features | SD Card Local Storage |
| Features | Gain Control |
| Features | Built-in Microphone |
| Features | Built-in Infrared Illuminator |
| Features | Audio Compression |
| Features | 3D Noise Reduction |
| Features | Motion Detection |
| Features | Highlight Compensation (HLC) |
| Features | Privacy Masking |
| Features | White Balance |
| Features | Day/Night |
| Features | Wide Dynamic Range |
| Features | Human Detection |
| Features | Back Light Compensation (BLC) |
| Features | Face Detection |
| Form factor | Dome |
| Image Sensor Type | CMOS |
| Lens Type | Fixed |
| Limited Warranty | 36 Month |
| Longest Shutter Speed | 1/5 Second |
| Manufacturer | Vivotek Inc |
| Manufacturer Part Number | FD9389-EHV-v2 |
| Manufacturer Website Address | http://www.vivotek.com |
| Marketing Information | VIVOTEK's FD9389-v2 series is a H.265 indoor dome network camera equipped with a 5-Megapixel sensor enabling resolution of 2560 x1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology the FD9389-v2 series is capable of capturing high-quality imagery in both high contrast and low light environments.
The FD9389-v2 series offers two lens options fixed-focal and remote focus lens for different user scenarios. The camera is equipped with IR illuminators with a 30-meter effective range for better night visibility. To provide reliable coverage in harsh outdoor environments the FD9389-v2 series is encased in IP66 and IK10 housing.
Employing VIVOTEK's Smart Stream III technology and H.265 codec support the FD9389-v2 series reduces bandwidth up to 90% while maintaining supreme image quality. Furthermore FD9389-v2 series offer AI-powered smart motion detection allowing events focusing on human object instead of irrelevant noise . |
| Maximum Focal Length | 2.80 mm |
| Maximum frame rate | 60 fps |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Video Resolution | 2560 x 1920 |
| Package Contents | - FD9389-EHV-v2 Network Camera
- Quick Installation Guide
- Alignment Sticker
- Screw Pack
|
| Product Name | FD9389-EHV-v2 Network Camera |
| Product Series | FD9389-v2 |
| Product Type | Network Camera |
| Shortest Shutter Speed | 1/32000 Second |
| Storage Type | Memory Card |
| Video Formats | MJPEG |
| Video Formats | H.264 |
| Video Formats | H.265 |
| Weight (Approximate) | 1.33 lb |
