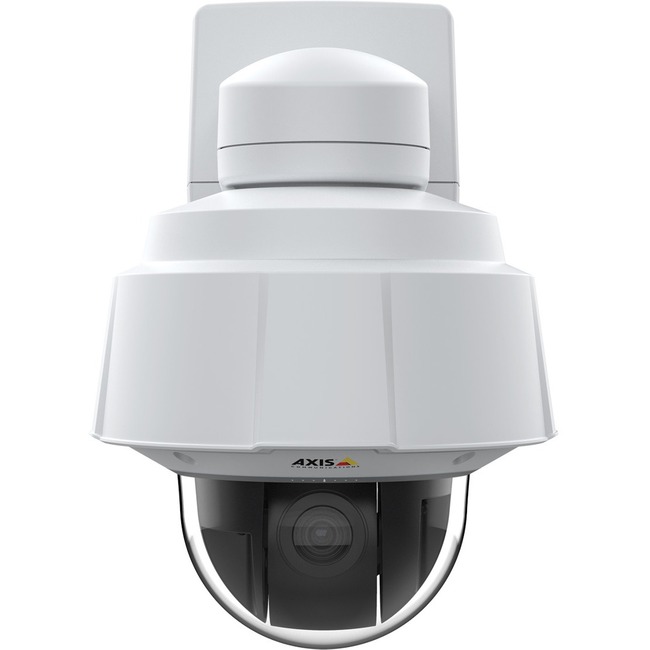

AXIS Q6078-E 8 Megapixel Outdoor 4K Network Camera - Color - Dome
$3,605.60 |
- UHD 4K with 20x optical zoom
- Outstanding images with great details
- Zipstream with support for H.264/H.265
- AXIS Object Analytics
- Built-in cybersecurity features
H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), Motion JPEG, H.264, H.265, H.264 BP, H.264 (MP), H.264 HP, H.265 (MP), Zipstream, H.264B, ... - 3840 x 2160 - 4.40 mm- 88.40 mm Varifocal Lens - 20x Optical - RGB CMOS - Corner Mount, Bracket Mount, Ceiling Mount, Pole Mount, Parapet Mount, Wall Mount, Pendant Mount, Parapet Mount, Recessed Mount - IK10 - IP66, IP67 - Vandal Resistant, Dust Resistant, Rain Resistant, Snow Resistant, Impact Resistant
Product Specifications
Field of View | 68.3°-4.2° - 42.1°-2.34° |
Field of View | 68.3°-4.2° - 42.1°-2.34° |
Impact Protection Rating | IK10 |
Impact Protection Rating | IK10 |
Indoor/Outdoor | Outdoor |
Indoor/Outdoor | Outdoor |
Ingress Protection Rating | IP67 |
Ingress Protection Rating | IP67 |
Ingress Protection Rating | IP66 |
Ingress Protection Rating | IP66 |
Maximum Aperture | f/2 |
Maximum Aperture | f/2 |
Minimum Aperture | f/3.8 |
Minimum Aperture | f/3.8 |
Minimum Focal Length | 4.40 mm |
Minimum Focal Length | 4.40 mm |
Minimum Operating Temperature | -58°F (-50°C) |
Minimum Operating Temperature | -58°F (-50°C) |
Network (RJ-45) | Yes |
Network (RJ-45) | Yes |
Operating Humidity | 100% |
Operating Humidity | 100% |
Brand Name | AXIS |
Brand Name | AXIS |
Color Supported | Color |
Color Supported | Color |
Connectivity technology | Wired |
Connectivity technology | Wired |
Country of origin | Mexico |
Country of origin | Mexico |
Diameter | 9.1" |
Diameter | 9.1" |
Durability | Dust Resistant |
Durability | Rain Resistant |
Durability | Rain Resistant |
Durability | Vandal Resistant |
Durability | Impact Resistant |
Durability | Vandal Resistant |
Durability | Dust Resistant |
Durability | Snow Resistant |
Durability | Impact Resistant |
Durability | Snow Resistant |
Effective Camera Resolution | 8 Megapixel |
Effective Camera Resolution | 8 Megapixel |
Features | Electronic Image Stabilization |
Features | Day/Night |
Features | Day/Night |
Features | HTTPS Encryption |
Features | Electronic Image Stabilization |
Features | Privacy Masking |
Features | Motion Detection |
Features | Back Light Compensation (BLC) |
Features | Password Protection |
Features | Defog |
Features | White Balance |
Features | Cross Line Detection |
Features | PTZ |
Features | Privacy Masking |
Features | Password Protection |
Features | Motion Detection |
Features | Back Light Compensation (BLC) |
Features | PTZ |
Features | HTTPS Encryption |
Features | White Balance |
Features | Cross Line Detection |
Features | Wide Dynamic Range |
Features | Defog |
Features | Wide Dynamic Range |
Form factor | Dome |
Form factor | Dome |
Height | 10.6" |
Height | 10.6" |
Image Sensor Type | RGB CMOS |
Image Sensor Type | RGB CMOS |
Input voltage | 240 V AC |
Input voltage | 240 V AC |
Lens Type | Varifocal |
Lens Type | Varifocal |
Limited Warranty | 5 Year |
Limited Warranty | 5 Year |
Longest Shutter Speed | 1 Second |
Longest Shutter Speed | 1 Second |
Manufacturer | Axis Communications |
Manufacturer | Axis Communications |
Manufacturer Part Number | 02148-004 |
Manufacturer Part Number | 02148-004 |
Manufacturer Website Address | http://www.axis.com |
Manufacturer Website Address | http://www.axis.com |
Marketing Information | This robust high-performance PTZ camera offers UHD 4K with 20x optical zoom for outstanding video quality. It's ideal for demanding situations in wide outdoor areas such as cities airports and critical infrastructure applications. Great overviews and superior detail Based on a powerful Axis chipset AXIS Q6078-E offers UHD 4K resolution and 20x optical zoom for outstanding video quality. Ideal for wide-area coverage it delivers great overviews and you can zoom in for detailed views with the clearest sharpest colors. Featuring Axis Zipstream technology with support for H.264 and H.265 it preserves all the important forensic details while significantly reducing bandwidth and storage requirements. Whenever wherever it's needed This outdoor vandal-resistant camera is IP66 NEMA 4X and IK10-rated to protect against dust rain snow and impacts. Arctic temperature control ensures startup from a deeply frozen state and operation in temperatures ranging from -40 °C to 50 °C (-40 °F to 122 °F). Autotracking 2 with click and track functionality and an orientation aid allows for active object tracking and quick orientation. Additionally where privacy must be kept privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Furthermore AXIS Q6078-E features AXIS Object Analytics allowing you to detect and classify humans and vehicles all tailored to your specific needs. Designed with cybersecurity in mind AXIS Q6078-E is packed with built-in cybersecurity features to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensures only authorized firmware is installed. And if needed secure boot guarantees the camera is completely free of malware after a factory default. For added peace of mind it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach. |
Marketing Information | This robust high-performance PTZ camera offers UHD 4K with 20x optical zoom for outstanding video quality. It's ideal for demanding situations in wide outdoor areas such as cities airports and critical infrastructure applications. Great overviews and superior detail Based on a powerful Axis chipset AXIS Q6078-E offers UHD 4K resolution and 20x optical zoom for outstanding video quality. Ideal for wide-area coverage it delivers great overviews and you can zoom in for detailed views with the clearest sharpest colors. Featuring Axis Zipstream technology with support for H.264 and H.265 it preserves all the important forensic details while significantly reducing bandwidth and storage requirements. Whenever wherever it's needed This outdoor vandal-resistant camera is IP66 NEMA 4X and IK10-rated to protect against dust rain snow and impacts. Arctic temperature control ensures startup from a deeply frozen state and operation in temperatures ranging from -40 °C to 50 °C (-40 °F to 122 °F). Autotracking 2 with click and track functionality and an orientation aid allows for active object tracking and quick orientation. Additionally where privacy must be kept privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Furthermore AXIS Q6078-E features AXIS Object Analytics allowing you to detect and classify humans and vehicles all tailored to your specific needs. Designed with cybersecurity in mind AXIS Q6078-E is packed with built-in cybersecurity features to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensures only authorized firmware is installed. And if needed secure boot guarantees the camera is completely free of malware after a factory default. For added peace of mind it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach. |
Maximum Focal Length | 88.40 mm |
Maximum Focal Length | 88.40 mm |
Maximum frame rate | 60 fps |
Maximum frame rate | 60 fps |
Maximum Operating Temperature | 122°F (50°C) |
Maximum Operating Temperature | 122°F (50°C) |
Maximum Video Resolution | 3840 x 2160 |
Maximum Video Resolution | 3840 x 2160 |
Mount Type | Recessed Mount |
